2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
FBH26TE030RV

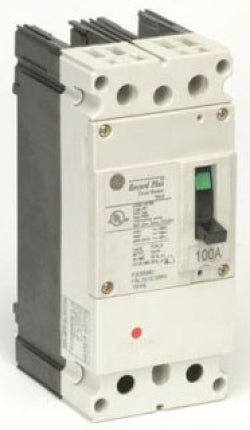

FBH26TE030RV is a General Electric Record Plus 2 Pole 30 Amp molded case circuit breaker designed for reliable protection in commercial and industrial applications. This thermal magnetic trip breaker features a 600V AC rating and is built for durability and safety in demanding environments. The Record Plus series offers advanced design features such as double-break rotary contacts for improved performance and longevity. Suitable for panelboard and switchgear installations, this breaker is a trusted solution for power distribution needs. Key Specifications
- Part Number: FBH26TE030RV
- Manufacturer: General Electric
- Series: Record Plus
- Frame Type: FB 100
- Poles: 2
- Amperage Rating: 30A
- Voltage Rating: 600V AC
- Interrupting Rating: 100kA @ 240V, 200kA @ 240V (varies by voltage)
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed, CSA Certified
- Application: Commercial, Industrial Power Distribution
Specifications
- Part Number: FBH26TE030RV
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Record Plus
- Type : FBH
- Voltage : 600
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783164394764
- GTIN : 00783164394764
- Dimensions : Depth / Length 8.500 in X Height 4.250 in X Width 3.250 in
- Weight : 3
- Wire Size : AWG 10 to AWG 4, Cu/Al
