Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
FBH16TE035RV

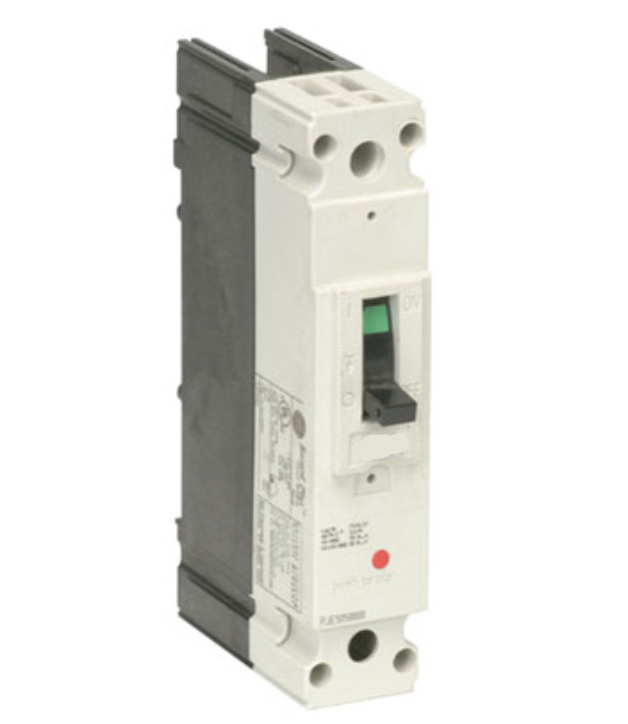

FBH16TE035RV is a General Electric Record Plus thermal magnetic molded case circuit breaker designed for commercial and industrial power distribution applications. This single pole breaker delivers reliable overcurrent protection with advanced trip technology and compact design suitable for panel mounting in standard electrical enclosures. The Record Plus series represents the latest in molded case circuit breaker design, featuring double-break rotary contacts and solid-state trip units for enhanced performance and selectivity. Key Specifications
- Amperage Rating: 35 Amp
- Number of Poles: 1 Pole (Single Pole)
- System Voltage: 277 VAC, 240 VAC
- Frame Type: FB 100
- Trip Unit: Thermal Magnetic
- Interrupting Rating: 100 KAIC at 277 VAC
- Connection Type: Bolt-On
- Series: Record Plus
- UL Listed: UL489
Specifications
- Part Number: FBH16TE035RV
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Record Plus
- Type : FBH
- Voltage : 600
- Amperage : 35
- Phase : 1
- Poles : 1
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78316439425
- GTIN : 00783164394252
- Weight : 1
