FAZ-D8/2-NA - Eaton 8 Amp 2 Pole Thermal Magnetic Circuit Breaker 277/480VAC 14kAIC DIN Rail Mount

Save $84.70
SKU: FAZ-D8/2-New
Condition: New
Price:
$155.30 $240.00
Stock:
Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

FAZ-D8/2 - Eaton Feed-Thru 3V 8A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D8/2 - Eaton Feed-Thru 3V 8A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D8/2 - Eaton Feed-Thru 3V 8A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D8/2-NA - Eaton 8 Amp 2 Pole Thermal Magnetic Circuit Breaker 277/480VAC 14kAIC DIN Rail Mount - Essential Electric Supply
FAZ-D8/2-NA - Eaton 8 Amp 2 Pole Thermal Magnetic Circuit Breaker 277/480VAC 14kAIC DIN Rail Mount - Essential Electric Supply
FAZ-D8/2-NA - Eaton 8 Amp 2 Pole Thermal Magnetic Circuit Breaker 277/480VAC 14kAIC DIN Rail Mount - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
FAZ-D8/2 - Eaton Feed-Thru 3V 8A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D8/2 - Eaton Feed-Thru 3V 8A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D8/2 - Eaton Feed-Thru 3V 8A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D8/2-NA - Eaton 8 Amp 2 Pole Thermal Magnetic Circuit Breaker 277/480VAC 14kAIC DIN Rail Mount - Essential Electric Supply
FAZ-D8/2-NA - Eaton 8 Amp 2 Pole Thermal Magnetic Circuit Breaker 277/480VAC 14kAIC DIN Rail Mount - Essential Electric Supply
FAZ-D8/2-NA - Eaton 8 Amp 2 Pole Thermal Magnetic Circuit Breaker 277/480VAC 14kAIC DIN Rail Mount - Essential Electric Supply

Description

FAZ-D8/2

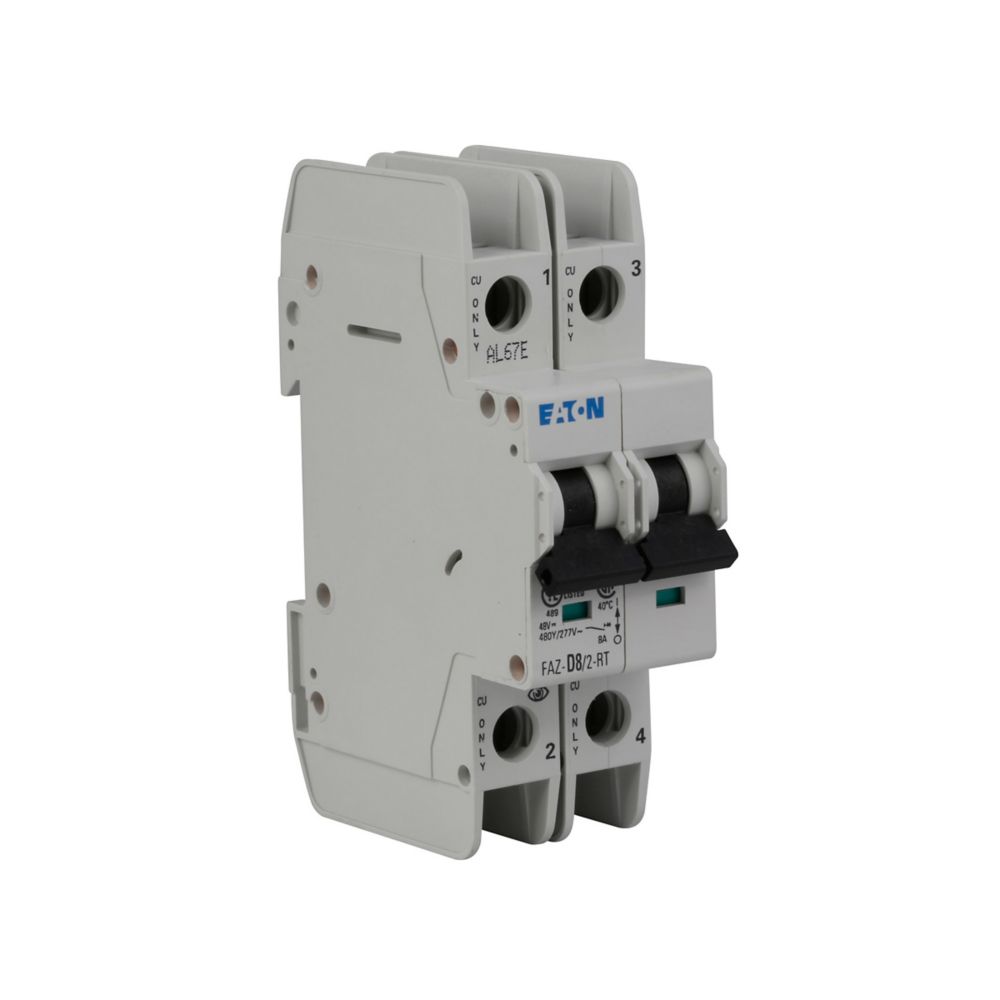

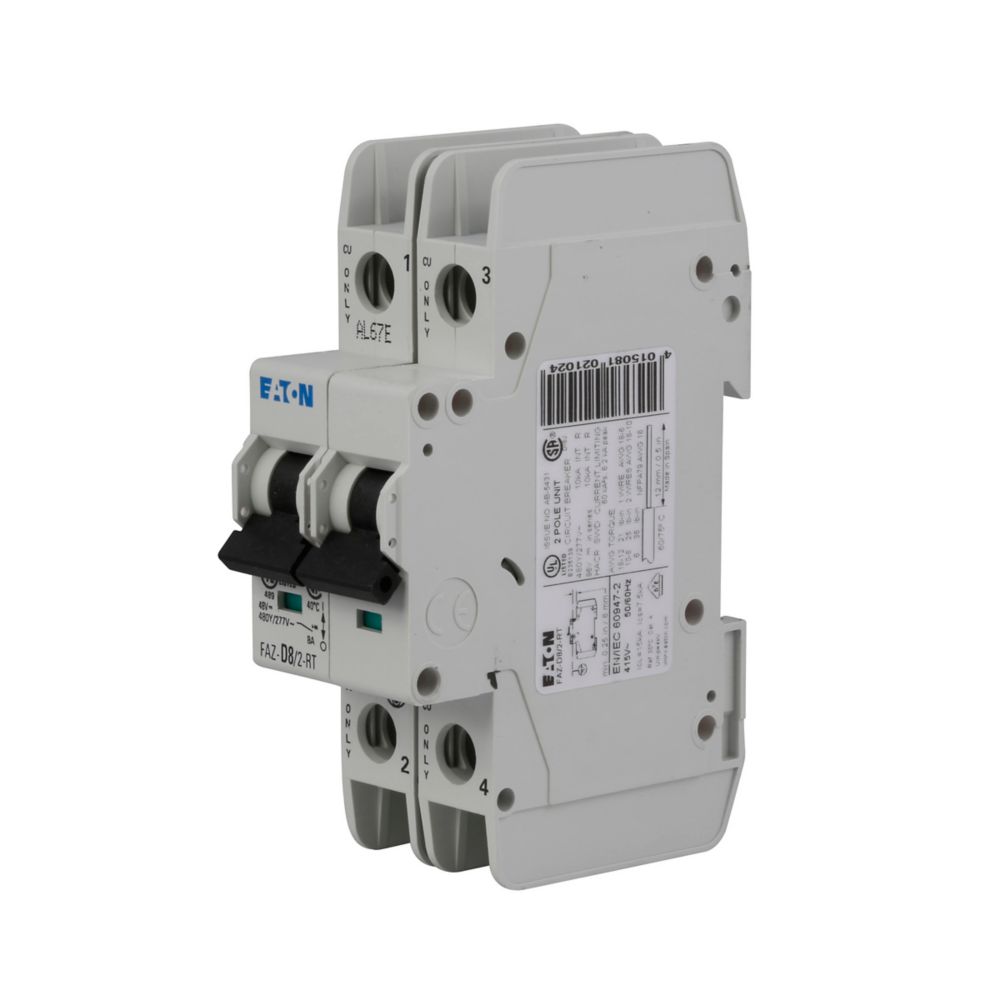

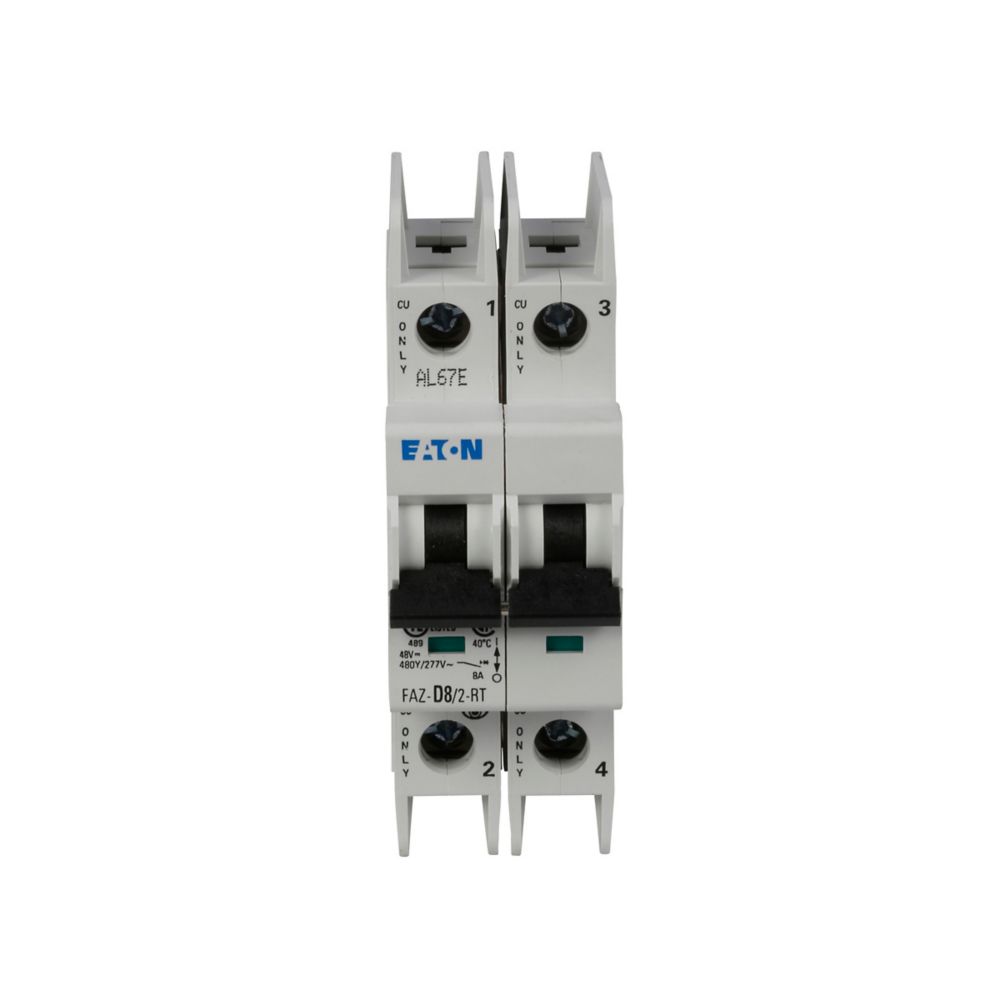

FAZ-D8/2-NA is an Eaton 2 pole thermal magnetic circuit breaker rated for 8 amps and 277/480VAC voltage with a 14kA interrupting capacity.This Eaton FAZ series circuit breaker features a DIN rail mounting type, thermal magnetic protection with long time and instantaneous trip functions, and is suitable for industrial applications requiring high inrush current tolerance. It is UL 489 and CSA certified, with a compact design and feed-thru connection terminals.
  • Amperage: 8 A
  • Voltage: 277/480 VAC, 48/96 VDC
  • Poles: 2
  • Mounting Type: DIN Rail
  • Interrupt Rating: 14 kAIC (UL 489)
  • Trip Unit: Thermal Magnetic with LI (Long Time and Instantaneous)
  • Certifications: UL 489, CSA, IEC, CE, VDE
  • Connection Type: Feed-Thru Terminals
  • Frame Type: FAZ
  • Temperature Rating: -4 to 140°F
  • Max Wire Size: 6 AWG
  • Min Wire Size: 18 AWG
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: FAZ-D8/2
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : FAZ Series
  • Type : FAZ
  • Voltage : 3
  • Amperage : 8
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@277/480V
  • Connection : Feed-Thru
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
  • Protection : Thermal Magnetic

Product Data

  • UPC : 01508278778
  • GTIN : 04015082787783
  • Country of Origin : Romania
  • Dimensions : 1.5 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
  • Weight : 0.5
  • Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
  • Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
