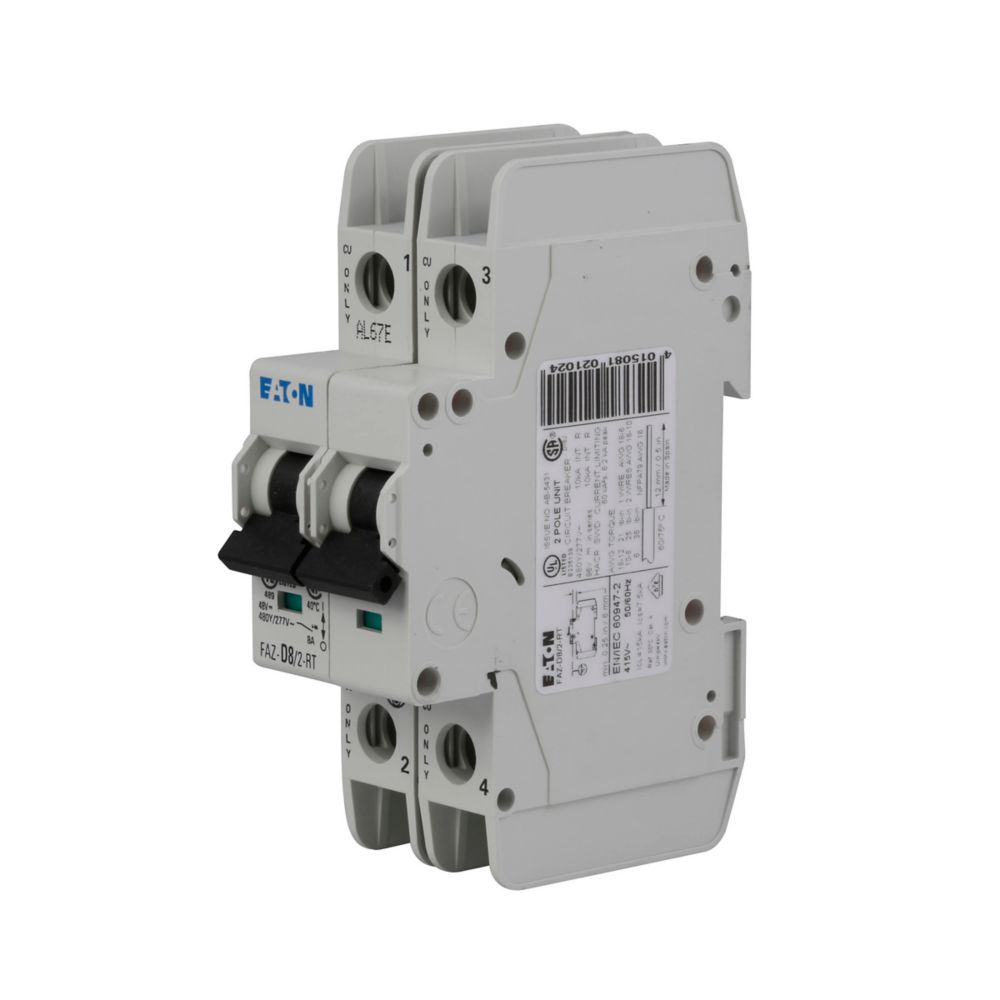

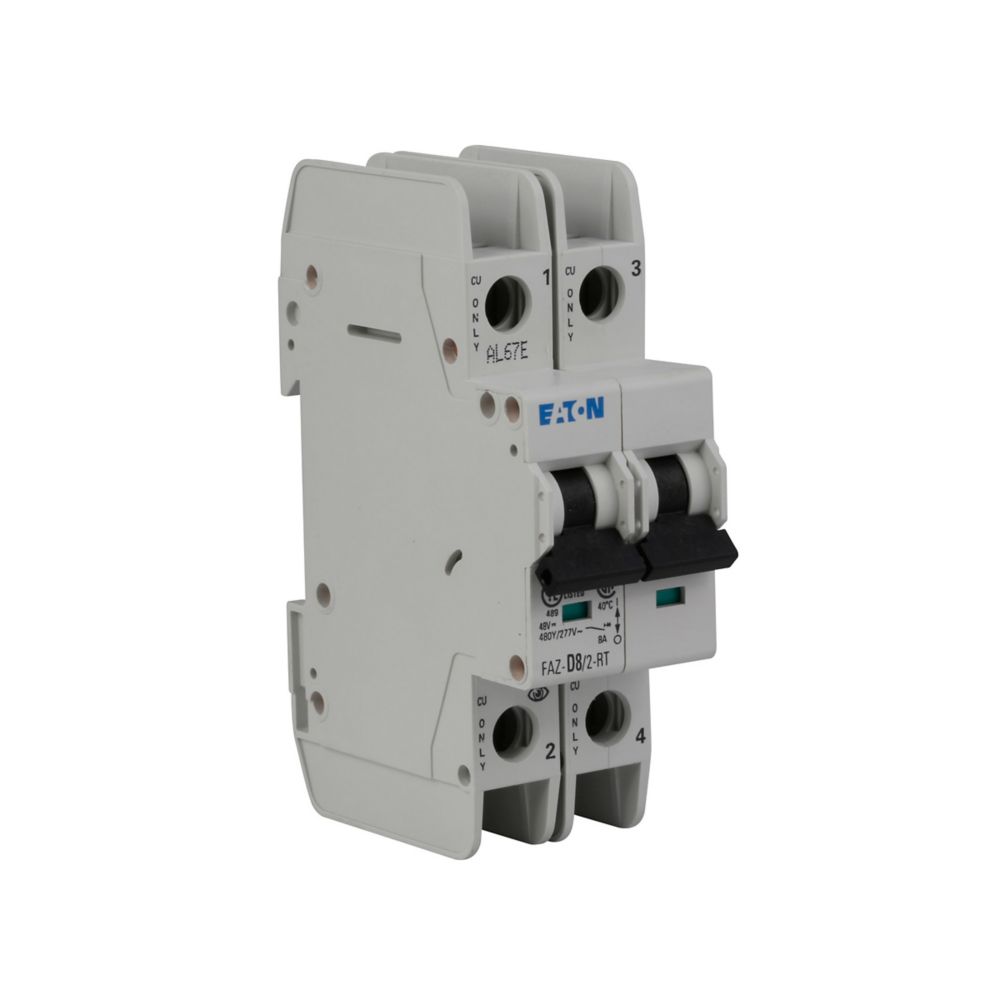

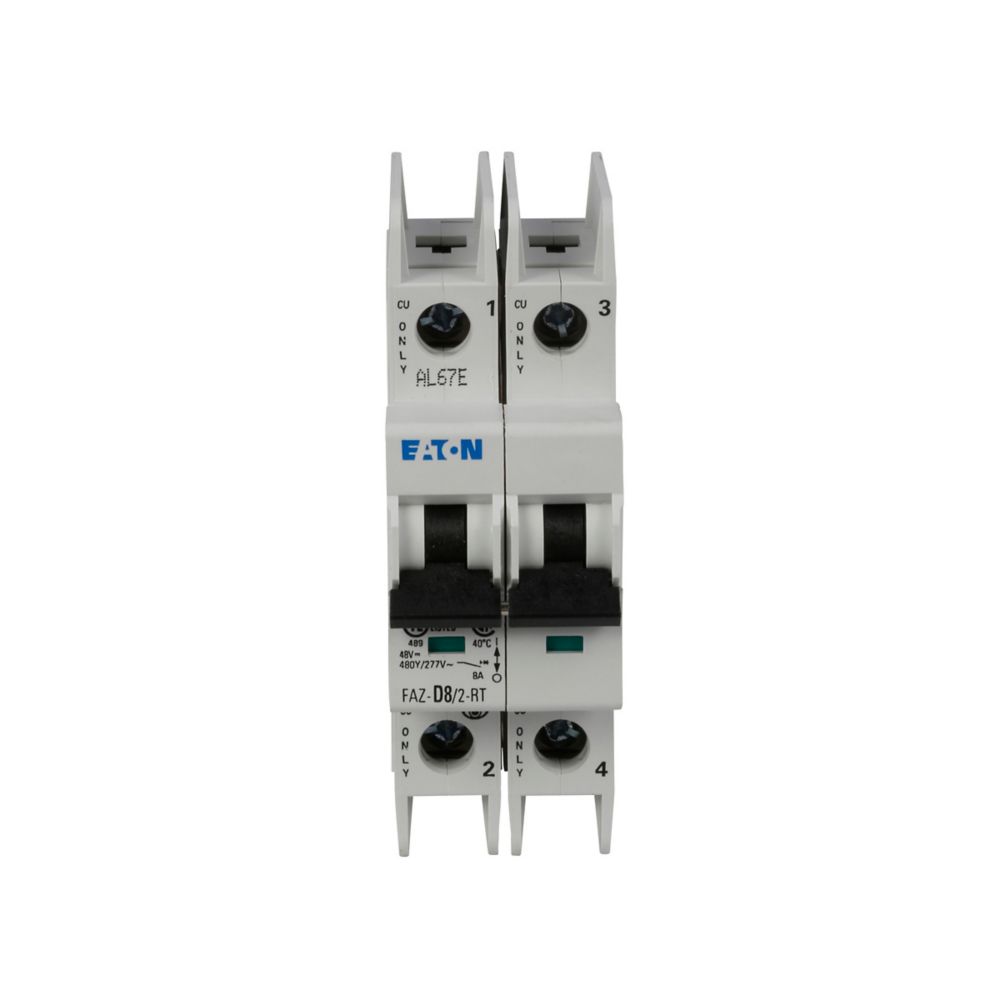

FAZ-D8/2-NA - Eaton 8 Amp 2 Pole 277/480VAC Thermal Magnetic Circuit Breaker DIN Rail Mount

FAZ-D8/2-NA

FAZ-D8/2-NA is an Eaton 2 pole thermal magnetic circuit breaker rated for 8 Amps and 277/480VAC, designed for DIN rail mounting.This FAZ series breaker features a 14kAIC interrupt rating, long time and instantaneous trip functions, and is suitable for industrial branch circuit protection. It supports line and load connections with feed-thru terminals and complies with UL, CSA, IEC, CE, and VDE certifications.

Key Specifications
• Amperage: 8 A
• Voltage Rating: 277/480 VAC, 48/96 VDC
• Number of Poles: 2
• Mounting Type: DIN Rail
• Interrupt Rating: 14 kAIC, 10 kAIC
• Trip Unit: Thermal Magnetic with LI (Long Time and Instantaneous)
• Frame Type: FAZ Series
• Terminal Connection: Line and Load Feed-Thru
• Certifications: UL 489, CSA, IEC, CE, VDE
• Temperature Rating: -4 to 140°F
• Max Wire Size: 6 AWG
• Min Wire Size: 18 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D8/2-NA
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ-NA
• Voltage : 480
• Amperage : 8
• Phase : 1
• Poles : 2
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508102062
• GTIN : 04015081020621
• Country of Origin : Spain
• Dimensions : 1.5 in x 4.25 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.5
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
