FAZ-D7/1-NA-SP - Eaton 7A 277/480V AC 1-Pole Thermal Magnetic Circuit Breaker DIN Rail Mount

FAZ-D7/1-NA-SP

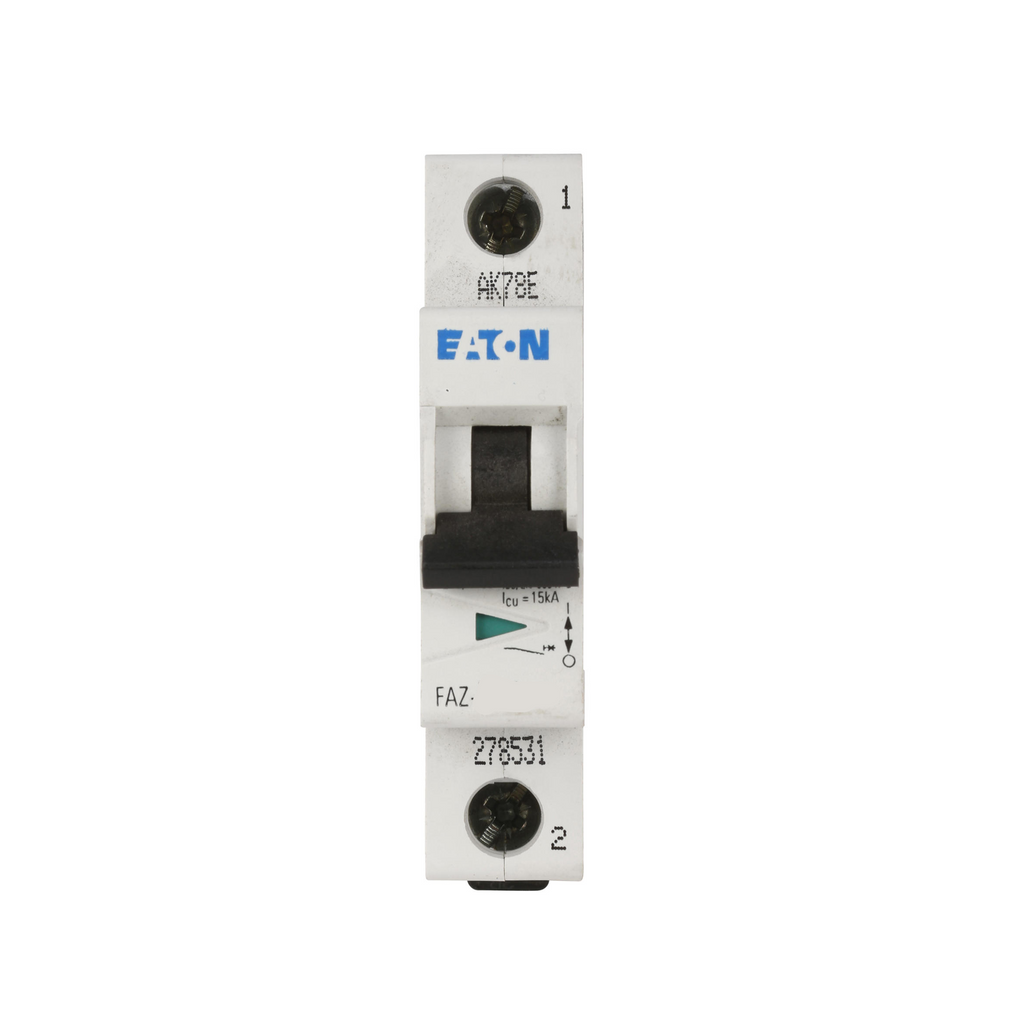

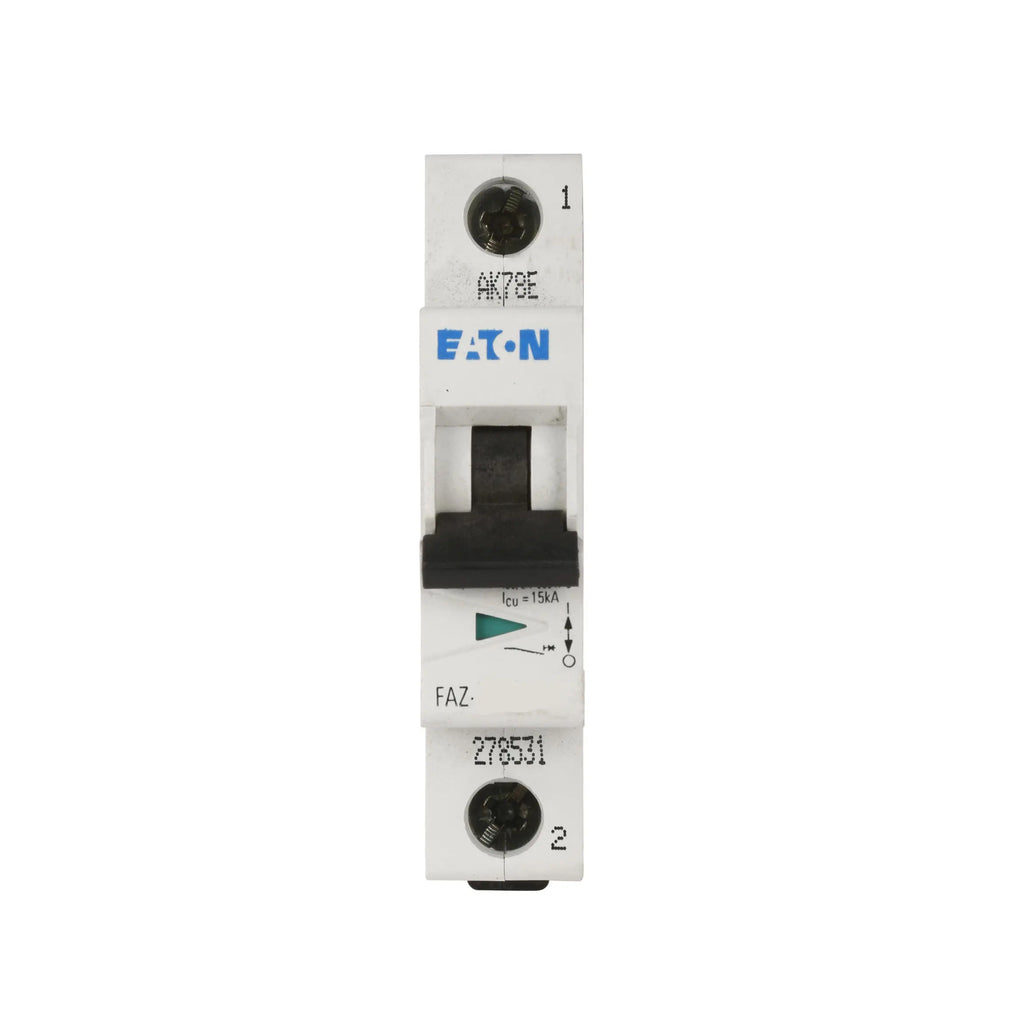

FAZ-D7/1-NA-SP is a 7 amp, 1-pole thermal magnetic miniature circuit breaker from Eaton designed for DIN rail mounting.

This Eaton FAZ branch protector offers reliable circuit protection with a 277/480V AC and 48V DC voltage rating, 10 kA interrupting rating at 277/480V AC, and a D curve trip characteristic suitable for high inrush currents typical in motors and transformers. It features screw clamp terminals, complies with UL 489, CSA, and IEC 60947-2 standards, and is part of the FAZ-NA series with a compact 1 inch depth and 3 inch width.

Key Specifications
• Amperage Rating: 7 A
• Voltage Rating: 277/480V AC, 48V DC
• Number of Poles: 1
• Mounting Type: DIN Rail
• Interrupt Rating: 10 kA at 277/480V AC
• Trip Curve: D Curve (Thermal Magnetic)
• Terminal Connection: Screw Clamp
• Series/Frame: FAZ-NA Series
• Certifications: UL 489, CSA, IEC 60947-2
• Dimensions: 1" Depth x 3" Width
• Application: Motor Control, Industrial Automation, Communication Equipment

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D7/1-NA-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 7
• Phase : 1
• Poles : 1
• AIC rating : 10kA@480/277V
• Connection : Din Rail
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163668
• GTIN : 04015081636686
• Country of Origin : Spain
• Dimensions : 1 in x 1 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.5
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
