FAZ-D6/1-SP - Eaton 6A 277V Single-Pole D Curve Industrial Miniature Circuit Breaker UL 1077

FAZ-D6/1-SP

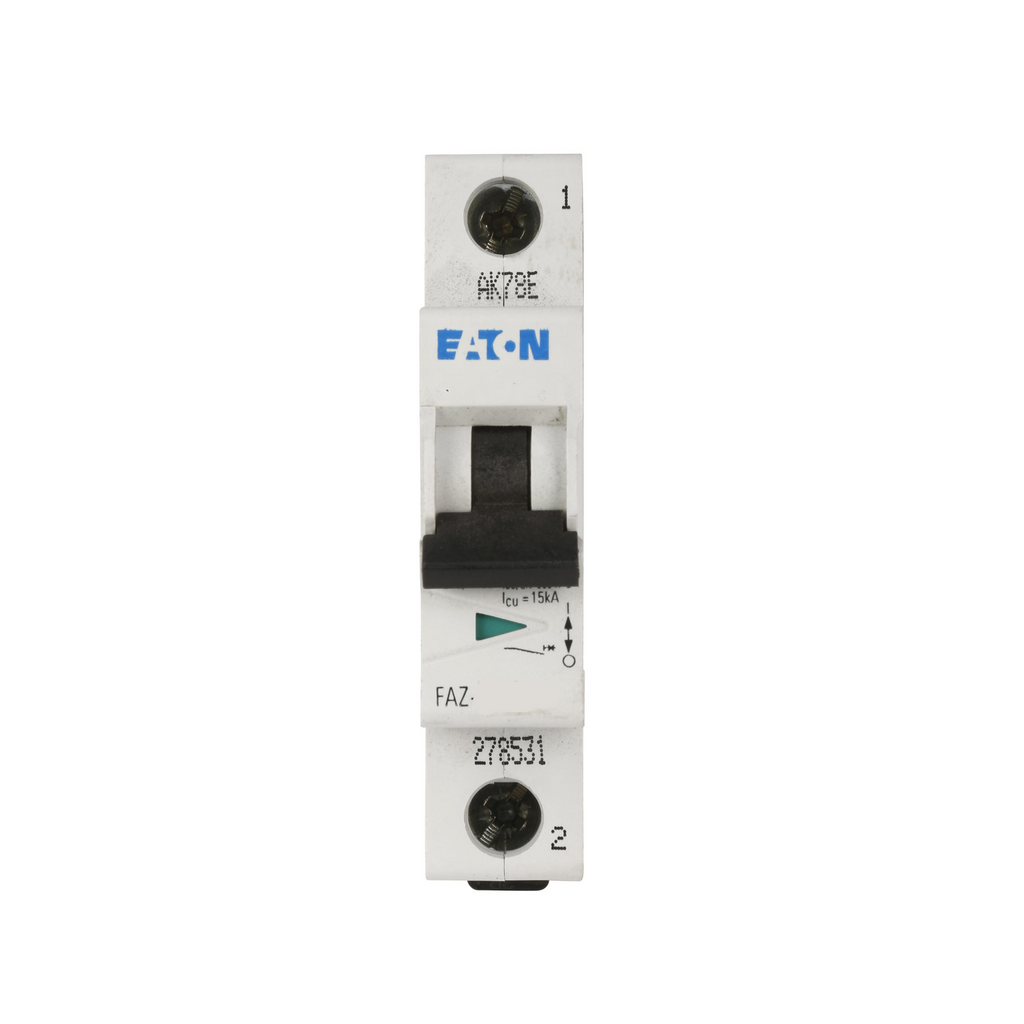

FAZ-D6/1-SP is an Eaton industrial miniature circuit breaker designed as a supplementary protector with a 6 ampere rating and single-pole configuration.FAZ-D6/1-SP features a D curve thermal magnetic trip unit suitable for high inrush current applications such as motors and transformers. It is UL 1077 certified, rated for 277 volts AC, and has a 10 kA interrupting rating. This breaker mounts on a standard 35mm DIN rail and complies with IEC 60947-2 and CSA C22.2 No.235 standards.

Key Specifications
• Amperage: 6 A
• Voltage Rating: 277 VAC
• Poles: Single-pole
• Trip Curve: D curve (10-20X In)
• Mounting Type: 35 mm DIN rail
• Interrupt Rating: 10 kAIC
• Standards: UL 1077, IEC 60947-2, CSA C22.2 No.235
• Terminal Type: Standard screw terminals
• Application: Supplementary protection for high inrush current loads
• Weight: Approx. 0.5 lb
• Warranty: 1 year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D6/1-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 2
• Amperage : 16
• Phase : 1
• Poles : 1
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163686
• GTIN : 04015081636860
• Country of Origin : Romania
• Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.5
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
