FAZ-D5/2-NA - Eaton 5A 2-Pole 277/480VAC D-Curve Thermal Magnetic Miniature Circuit Breaker UL 489

Save $231.79
SKU: FAZ-D5/2-NA-New
Condition: New
Price:
$99.21 $331.00
Stock:
Low inventory, please call for stock check
Factory Lead Time: 69 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

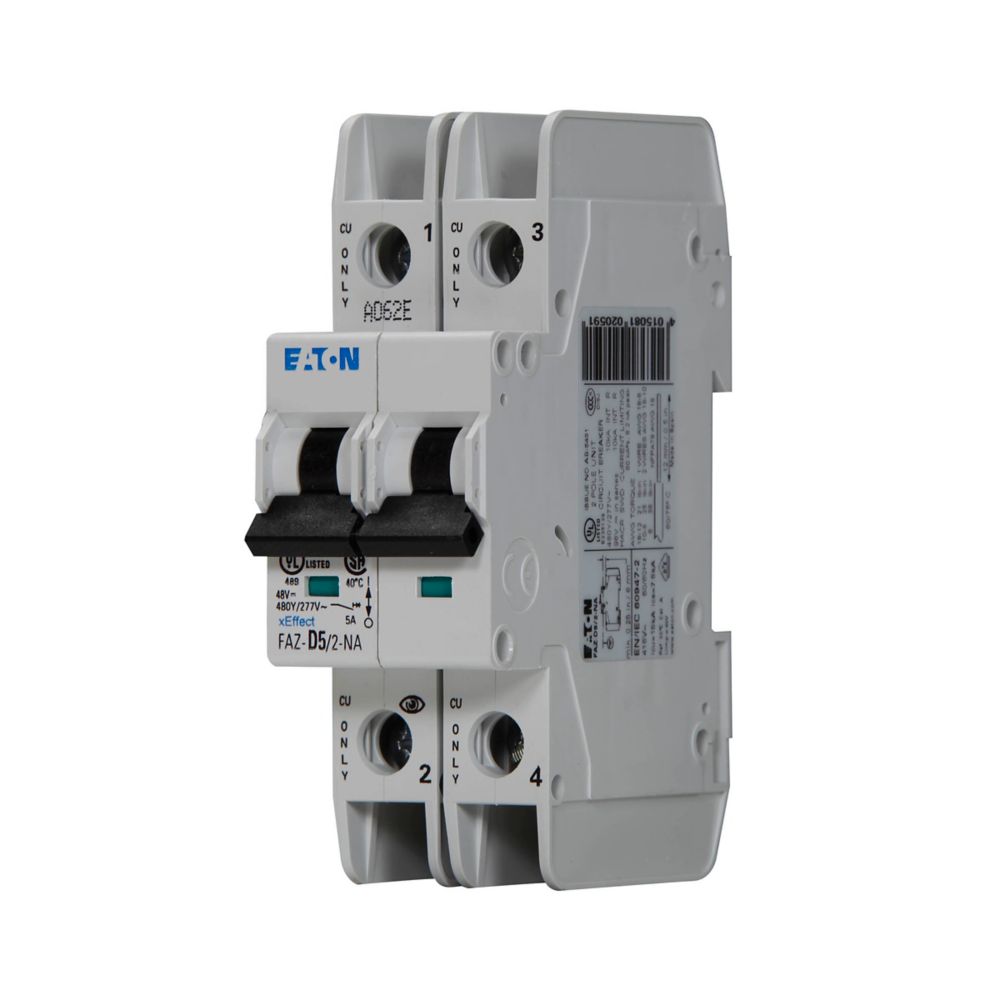

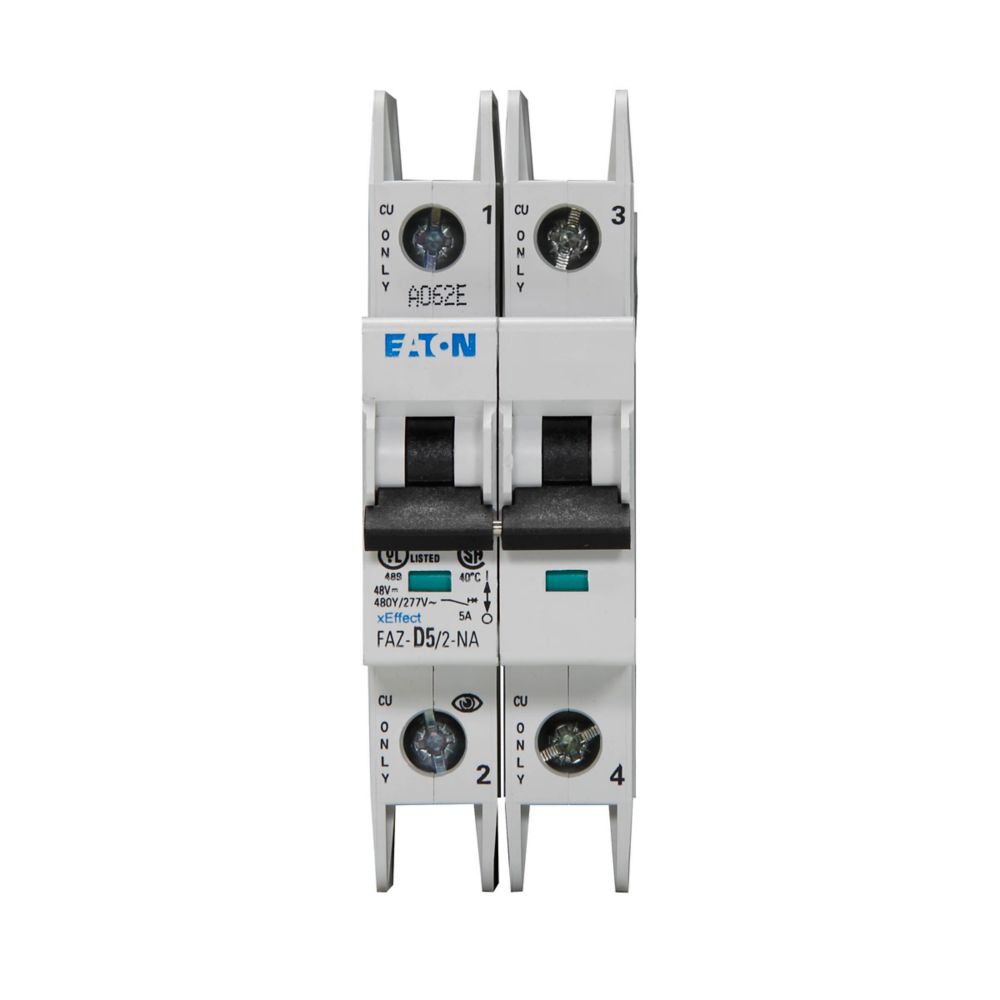

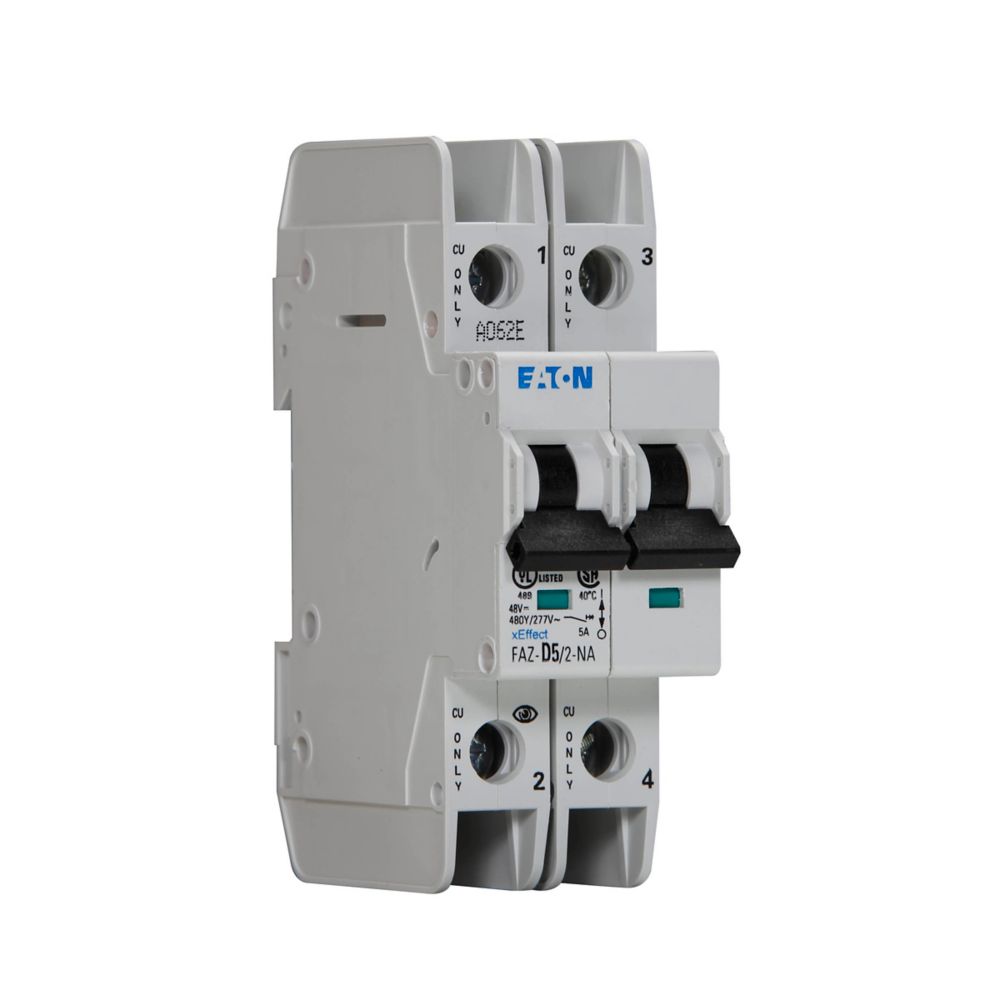

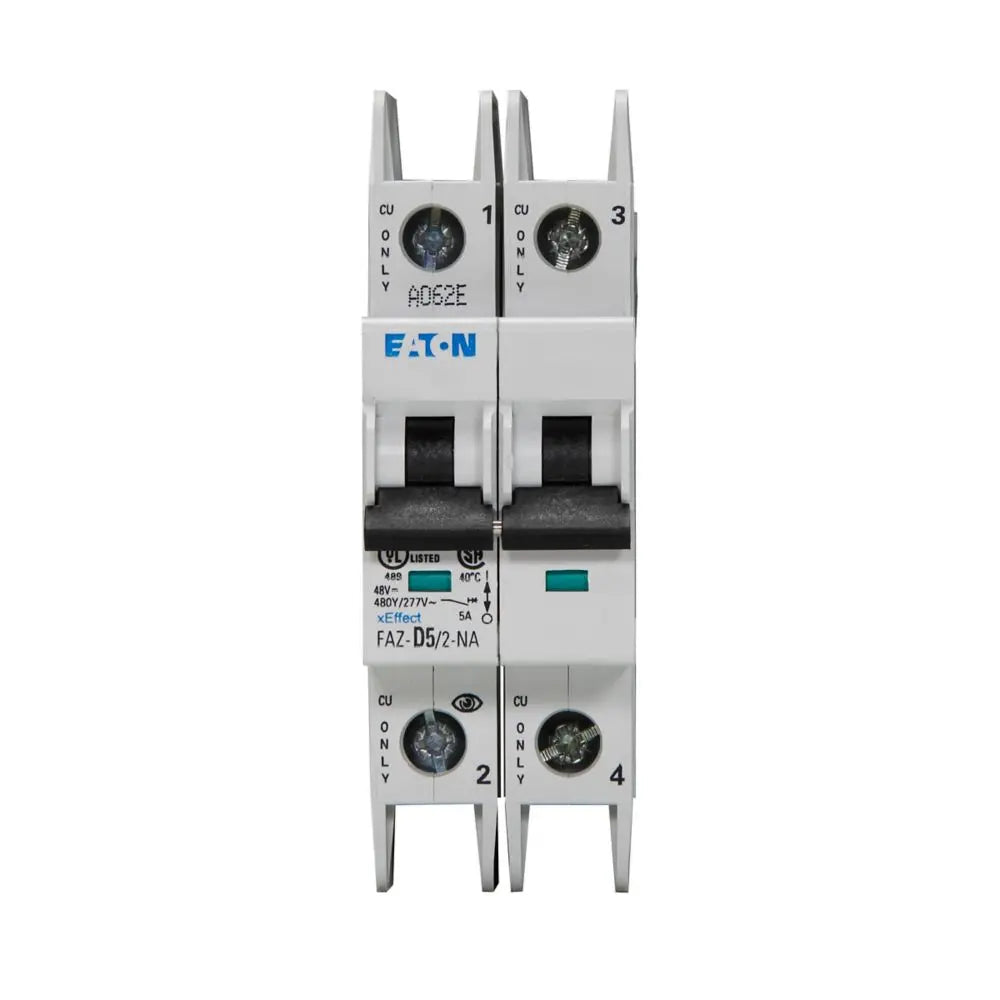

FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply
FAZ-D5/2-NA - Eaton Feed-Thru 3V 5A 2 pole circuit breaker 10kA@277/480V - Essential Electric Supply

Description

FAZ-D5/2-NA


FAZ-D5/2-NA is a two-pole, 5A miniature circuit breaker designed for industrial branch circuit protection with high inrush current tolerance. This Eaton FAZ-NA series breaker features a D-curve thermal magnetic trip unit, suitable for applications with motors, transformers, and other inductive loads. It is UL 489 listed, CSA certified, and DIN rail mountable for easy installation in control panels and industrial equipment.
  • Part Number: FAZ-D5/2-NA
  • Manufacturer: Eaton
  • Amperage Rating: 5 A
  • Number of Poles: 2
  • Rated Voltage: 277/480 VAC
  • Interrupting Rating: 10 kAIC
  • Mounting Type: DIN Rail
  • Series/Frame: FAZ-NA
  • Thermal Magnetic Trip: D-Curve (10-20X)
  • Certifications: UL 489, CSA C22.2 No. 235
  • Terminal Type: Screw
  • Application: Industrial Branch Circuit Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: FAZ-D5/2-NA
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : FAZ Series
  • Type : FAZ-NA
  • Voltage : 3
  • Amperage : 5
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@277/480V
  • Connection : Feed-Thru
  • Functions : LI - Long Time and Instantaneous
  • Terminal Connection : Screw Clamp
  • Frame Size : 40A/FAZ
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
  • Protection : Thermal Magnetic

Product Data

  • UPC : 01508102059
  • GTIN : 04015081020591
  • Country of Origin : Spain
  • Dimensions : 1.5 in x 4.25 in x 3 in (Length/Depth x Height x Width)
  • Weight : 0.5
  • Standards : CSA Certified, IEC 60947-2, UL 489 Listed
  • Certification : CSA Certified, IEC 60947-2, UL 489 Listed
