Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
FAZ-D5/2

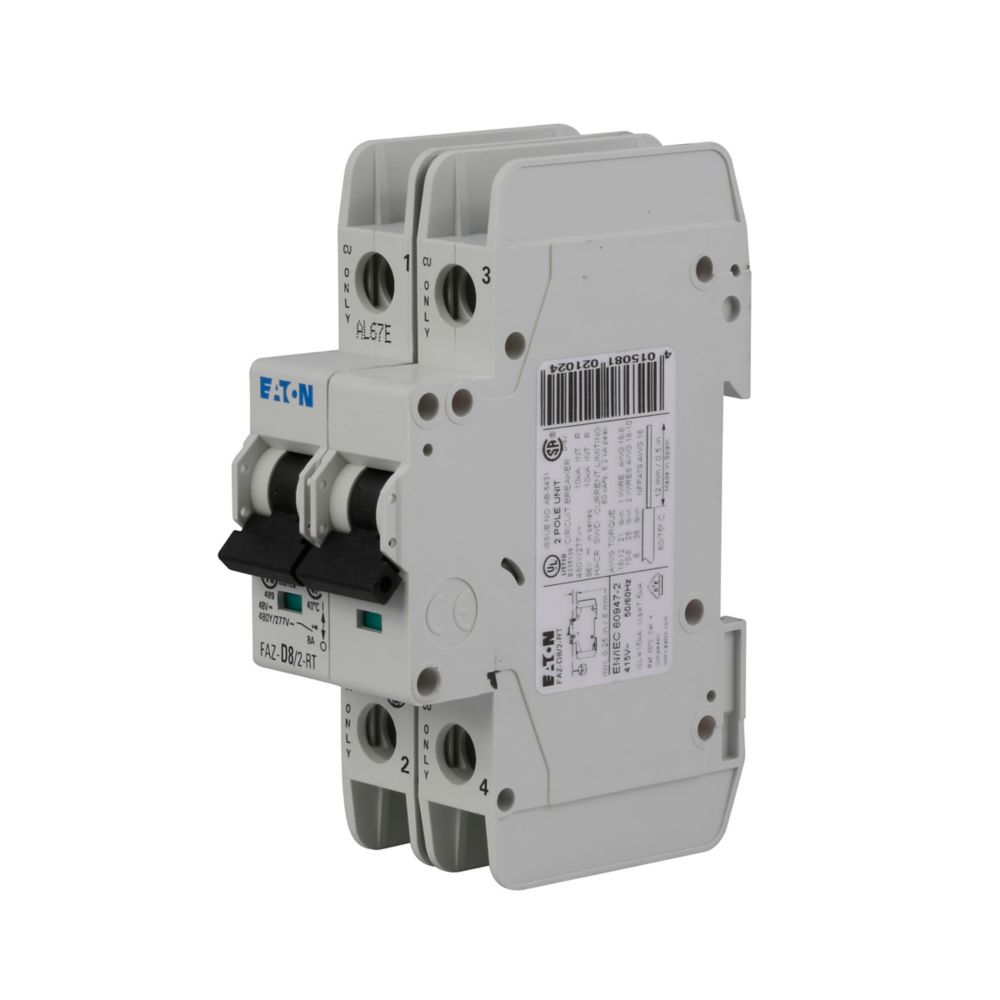

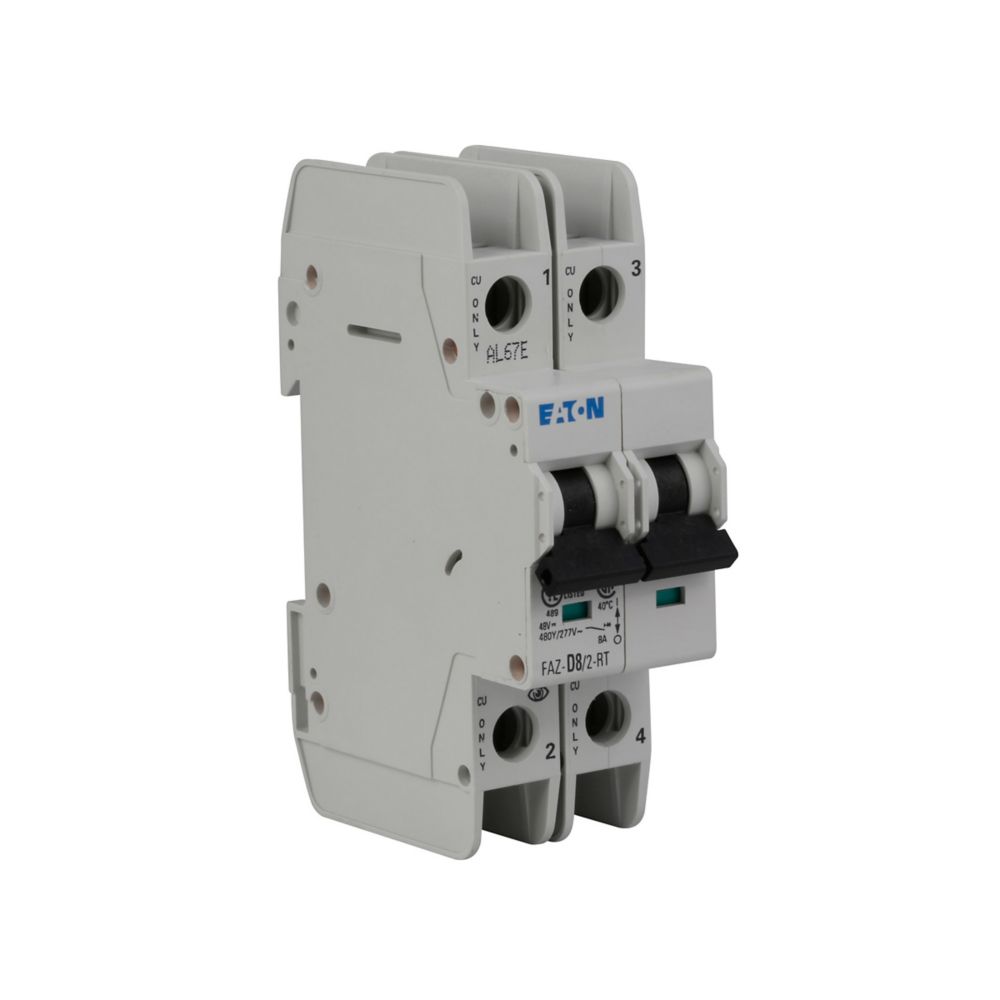

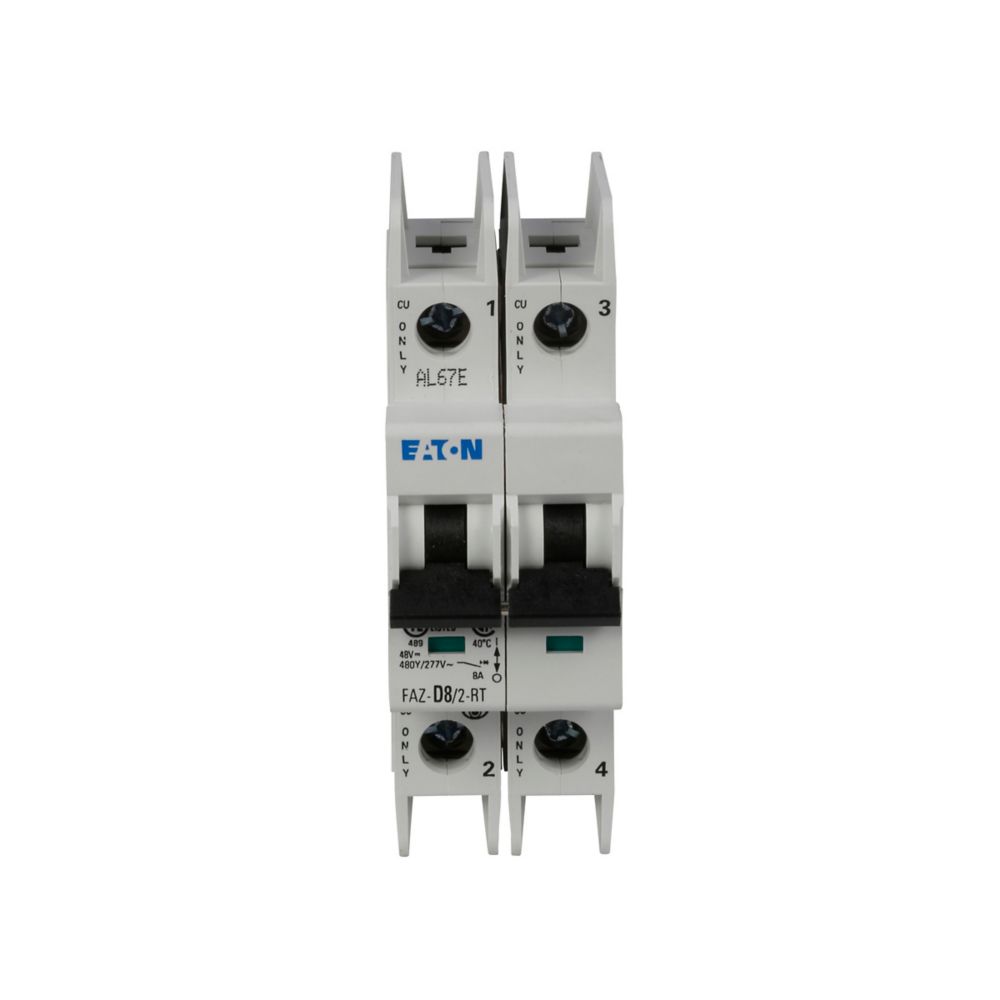

FAZ-D5/2 is an Eaton 5 Amp miniature circuit breaker designed for industrial and commercial applications.FAZ-D5/2 features a 2-pole thermal magnetic trip unit with a D curve characteristic, rated for 240 VAC and 96 VDC operation. It provides a 10 kA interrupting rating at 240 VAC and mounts easily on a 35mm DIN rail. This current-limiting breaker is UL 489 listed and CSA certified, suitable for feeder and branch circuit protection with high inrush current tolerance.
- Amperage: 5 A
- Voltage Rating: 240 VAC / 96 VDC
- Number of Poles: 2
- Trip Curve: D curve (thermal magnetic)
- Interrupting Rating: 10 kA @ 240 VAC
- Mounting Type: 35mm DIN rail
- UL Listed (UL 489), CSA Certified
- Current Limiting Device
- HACR Rated
- Reverse Feed Capable
- Standard Terminals
- RoHS Compliant
Specifications
- Part Number: FAZ-D5/2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAZ Series
- Type : FAZ
- Voltage : 5
- Amperage : 5
- Phase : 1
- Poles : 2
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
- Protection : Thermal Magnetic
Product Data
- UPC : 01508278776
- GTIN : 04015082787769
- Country of Origin : Romania
- Dimensions : 1.5 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
- Weight : 0.5
- Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
- Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
