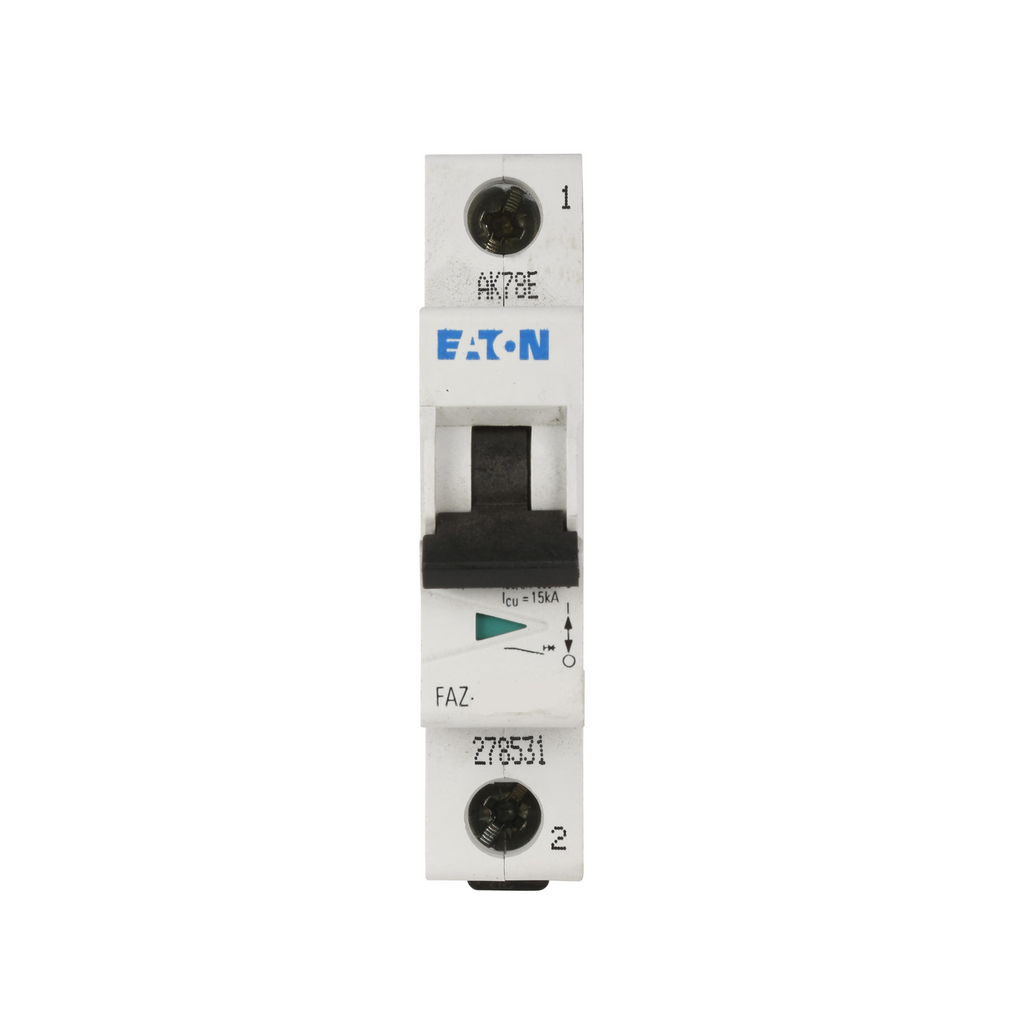

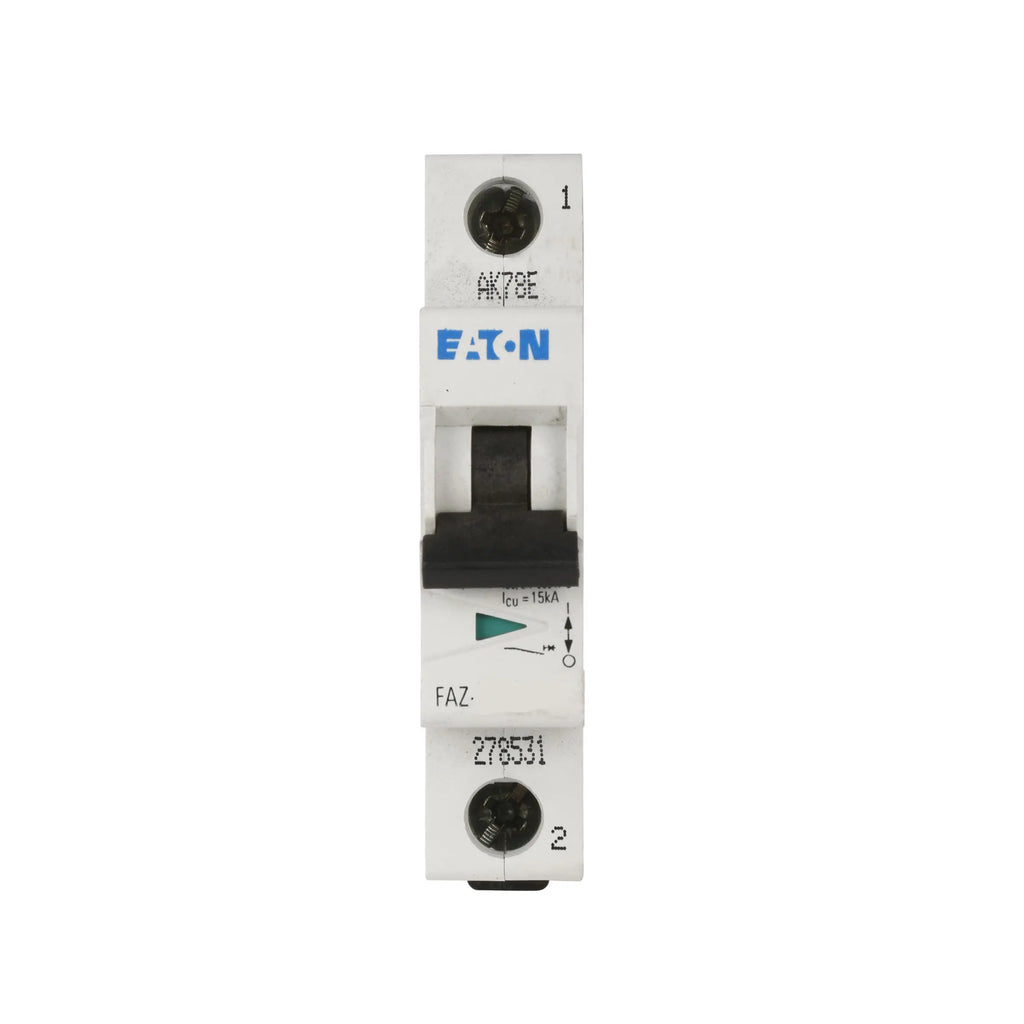

FAZ-D5/1-NA-SP - Eaton 5A 277VAC 1-Pole D Curve Miniature Circuit Breaker DIN Rail Mount

FAZ-D5/1-NA-SP

FAZ-D5/1-NA-SP is an Eaton 5 amp, 1-pole miniature circuit breaker with a D curve trip characteristic designed for industrial branch circuit protection.This thermal magnetic circuit breaker features a 10 kA interrupting rating at 277 VAC, suitable for high inrush current applications such as motors and transformers. It mounts easily on a 35mm DIN rail and complies with UL 489 and CSA C22.2 No. 235 standards. The breaker includes screw terminals, a trip-free design, and a contact position indicator for reliable operation.

• Amperage Rating: 5 A
• Voltage Rating: 277 VAC / 48 VDC
• Number of Poles: 1
• Trip Curve: D Curve
• Interrupting Rating: 10 kA at 277 VAC
• Mounting Type: 35mm DIN Rail
• Trip Type: Thermal Magnetic
• Certifications: UL 489, CSA C22.2 No. 235
• Terminal Type: Screw Terminals
• Current Limiting: Yes
• Application: Industrial Branch Circuit Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D5/1-NA-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 5
• Phase : 1
• Poles : 1
• AIC rating : 10kA@480/277V
• Connection : Din Rail
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163666
• GTIN : 04015081636662
• Country of Origin : Spain
• Dimensions : 1 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.5
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
