FAZ-D40/2-NA - Eaton 40A 2-Pole Miniature Circuit Breaker Thermal Magnetic D Curve 277/480VAC 10kA Interrupting Rating

FAZ-D40/2

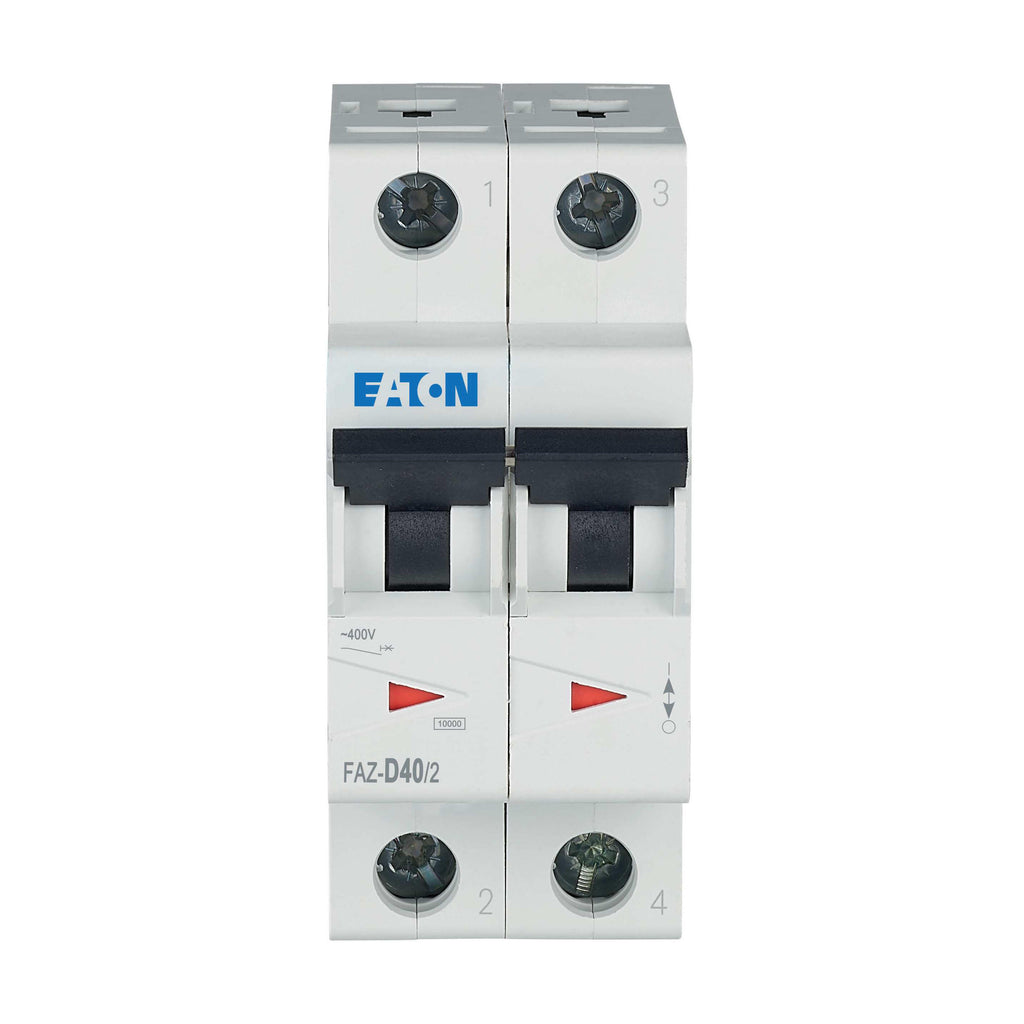

FAZ-D40/2-NA is a 40 amp, 2-pole Eaton miniature circuit breaker designed for industrial and commercial applications requiring reliable branch circuit protection.This Eaton FAZ series circuit breaker features a thermal magnetic trip unit with a D curve trip characteristic, suitable for high inrush currents typical of motors and transformers. It supports a voltage rating of 277/480 VAC and 96/125 VDC, with an interrupting rating of 10kA at 240 VAC. The breaker mounts on a 35mm DIN rail and is UL 489 and CSA certified, ensuring compliance with industry safety standards.

Key Specifications
• Amperage: 40A
• Voltage Rating: 277/480 VAC, 96/125 VDC
• Number of Poles: 2
• Trip Curve: D Curve (thermal magnetic)
• Interrupting Rating: 10kA @ 240 VAC
• Mounting Type: 35mm DIN rail
• Certifications: UL 489, CSA Std. C22.2 No. 235
• Series: FAZ
• Terminal Type: Standard screw terminals
• HACR Rated: Yes
• Reverse Feed Capable: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D40/2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508278787
• GTIN : 04015082787875
• Country of Origin : Romania
• Dimensions : 1.5 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.5 lb
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
