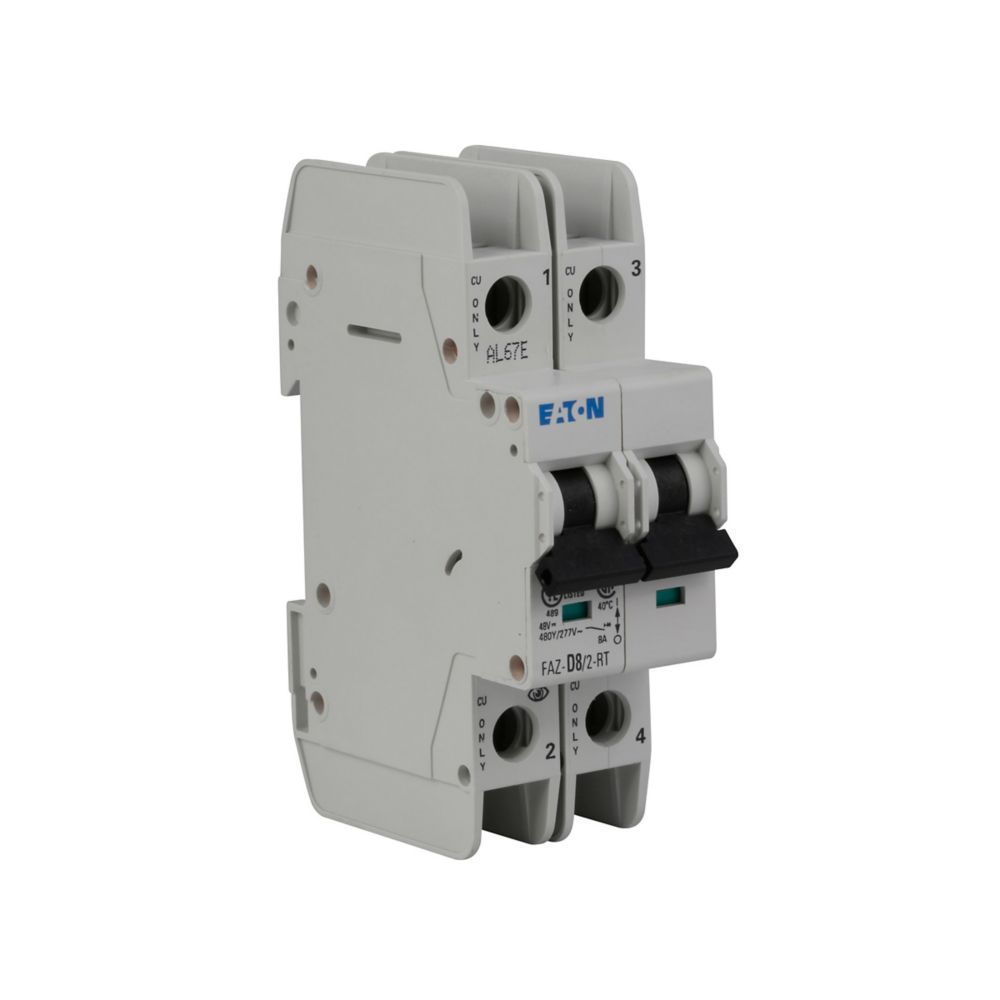

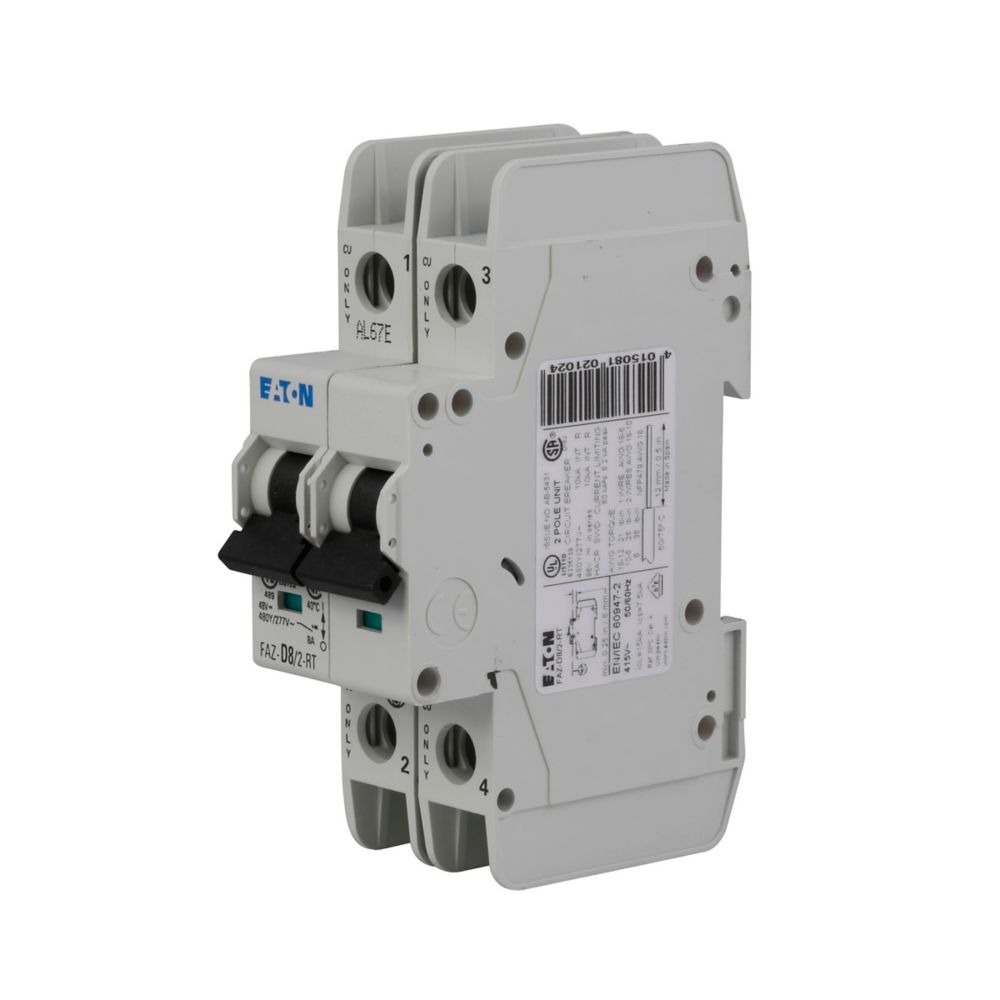

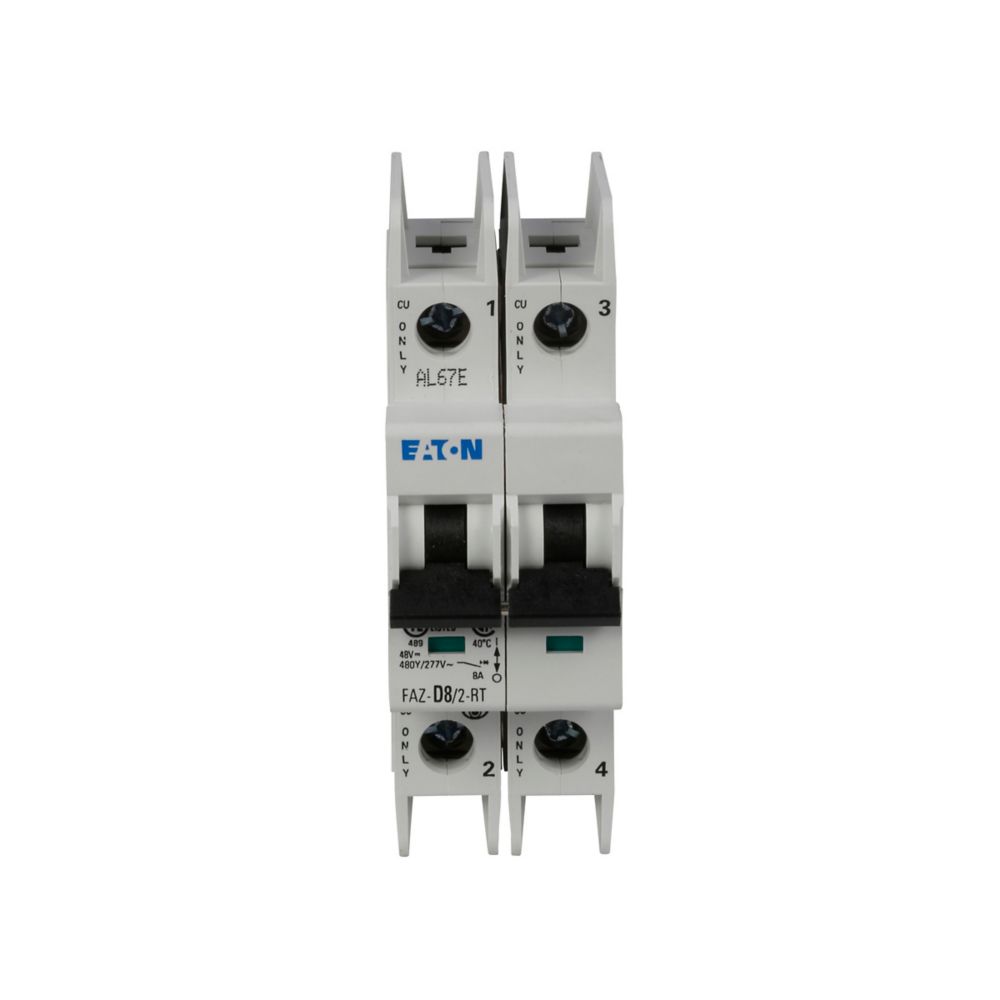

FAZ-D4/2 - Eaton 4A 2-Pole Miniature Circuit Breaker, D Curve, 277/480VAC, Thermal Magnetic, 10kA Interrupt Rating

FAZ-D4/2

FAZ-D4/2 is a 4 amp, 2-pole Eaton miniature circuit breaker with a D curve trip characteristic designed for industrial and commercial applications.FAZ-D4/2 features thermal magnetic trip units suitable for high inrush current loads such as motors and transformers. It supports a voltage rating of 277/480 VAC and 96 VDC, with a 10kA interrupting rating at 240 VAC. This breaker mounts on a 35mm DIN rail and complies with UL 489, UL 1077, CSA C22.2 No.235, and IEC 60947-2 certifications.

Key Specifications
• Amperage Rating: 4 A
• Voltage Rating: 277/480 VAC, 96 VDC
• Number of Poles: 2
• Trip Curve: D curve (thermal magnetic)
• Interrupting Rating: 10 kA @ 240 VAC
• Mounting Type: 35mm DIN rail
• Certifications: UL 489, UL 1077, CSA C22.2 No.235, IEC 60947-2
• Trip Type: Thermal magnetic
• HACR Rated: Yes
• Reverse Feed Capable: Yes
• Agency Approvals: UL Listed File # E235139

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D4/2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 4
• Phase : 1
• Poles : 2
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508278775
• GTIN : 04015082787752
• Country of Origin : Romania
• Dimensions : 1.5 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.5
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
