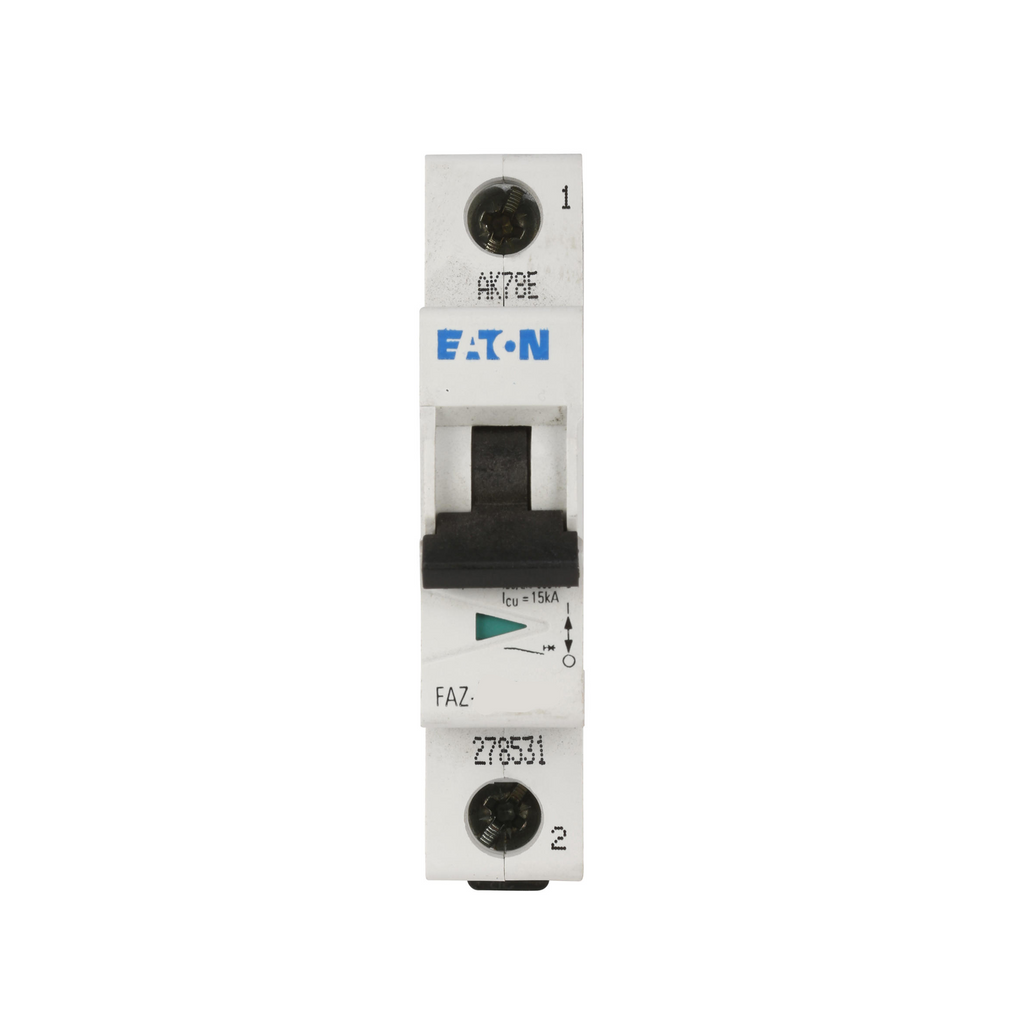

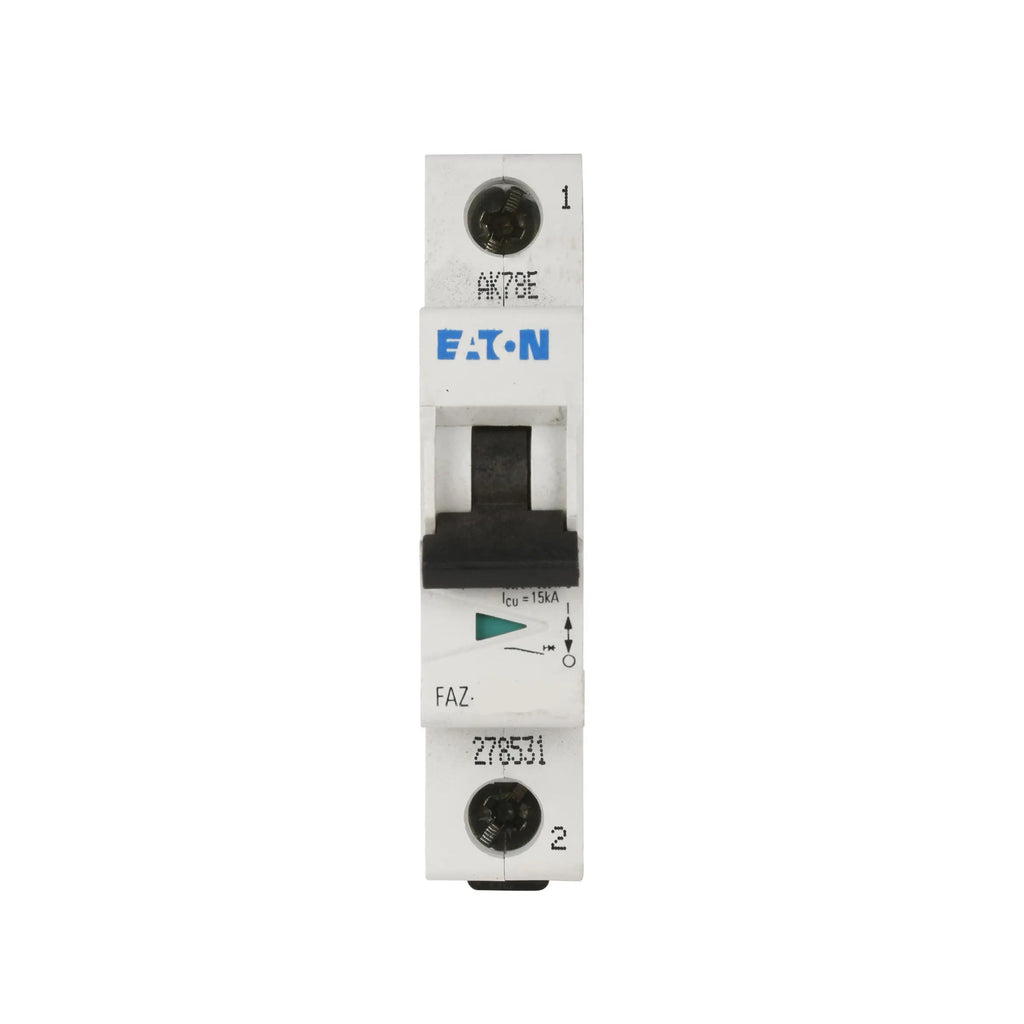

FAZ-D4/1-NA-SP - Eaton 4 Amp 1-Pole Industrial Miniature Circuit Breaker 277/480V AC D Curve 10kA Interrupt Rating

FAZ-D4/1-NA-SP

FAZ-D4/1-NA-SP is an Eaton industrial miniature circuit breaker designed for branch protection with a 4 amp rating and single-pole configuration.This Eaton FAZ series breaker features a 10 kilo-amp interrupt rating, D curve thermal magnetic trip unit, and is suitable for 277/480 volt AC applications.

• Amperage: 4 A
• Voltage Rating: 277/480 V AC
• Number of Poles: Single-pole
• Trip Curve: D Curve (10-20X In)
• Interrupt Rating: 10 kAIC
• Mounting Type: 35 mm DIN rail mount
• Terminal Type: Screw terminals
• Housing Material: Nylon
• Certifications: UL 489, CSA Std. C22.2 No. 235
• Actuator Type: Toggle handle
• Designed for high inrush current applications such as motors and transformers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D4/1-NA-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 4
• Phase : 1
• Poles : 1
• AIC rating : 10kA@480V
• Connection : Din Rail
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508163665
• GTIN : 04015081636655
• Country of Origin : Spain
• Dimensions : 1 in x 4.25 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.5
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
