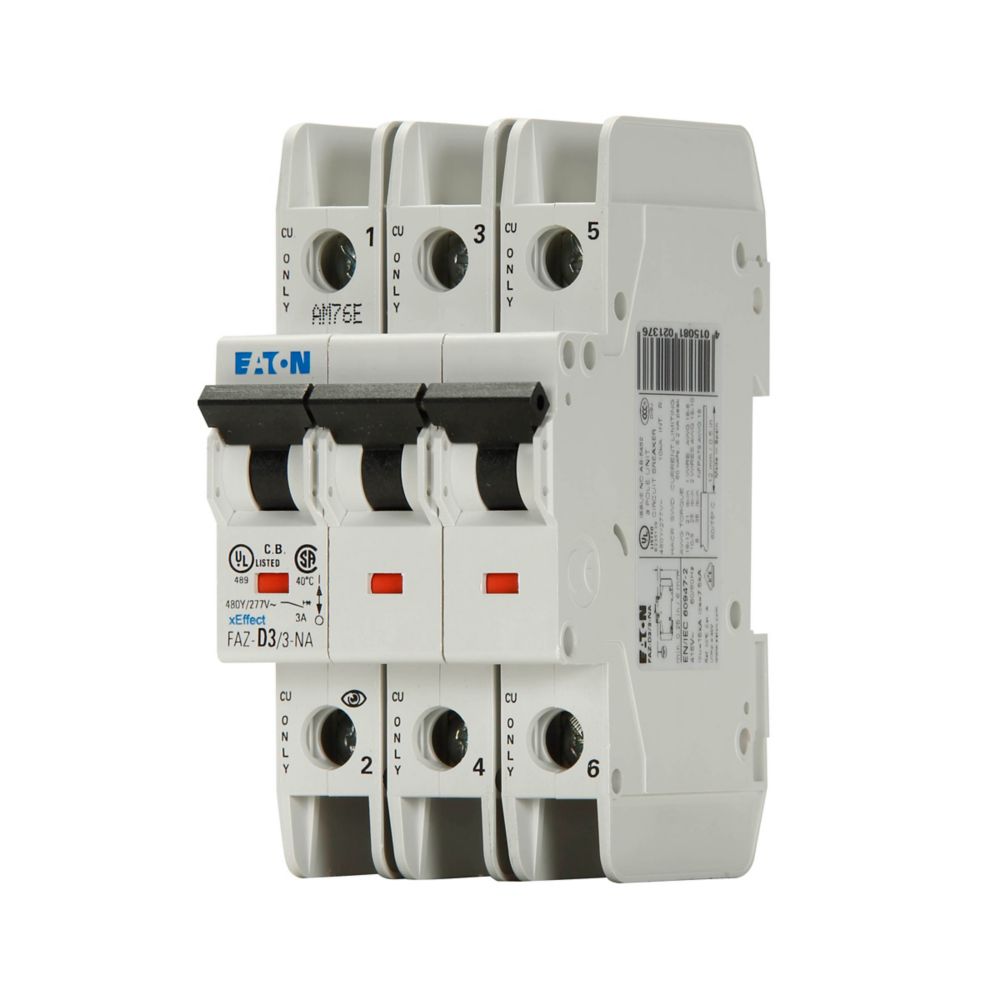

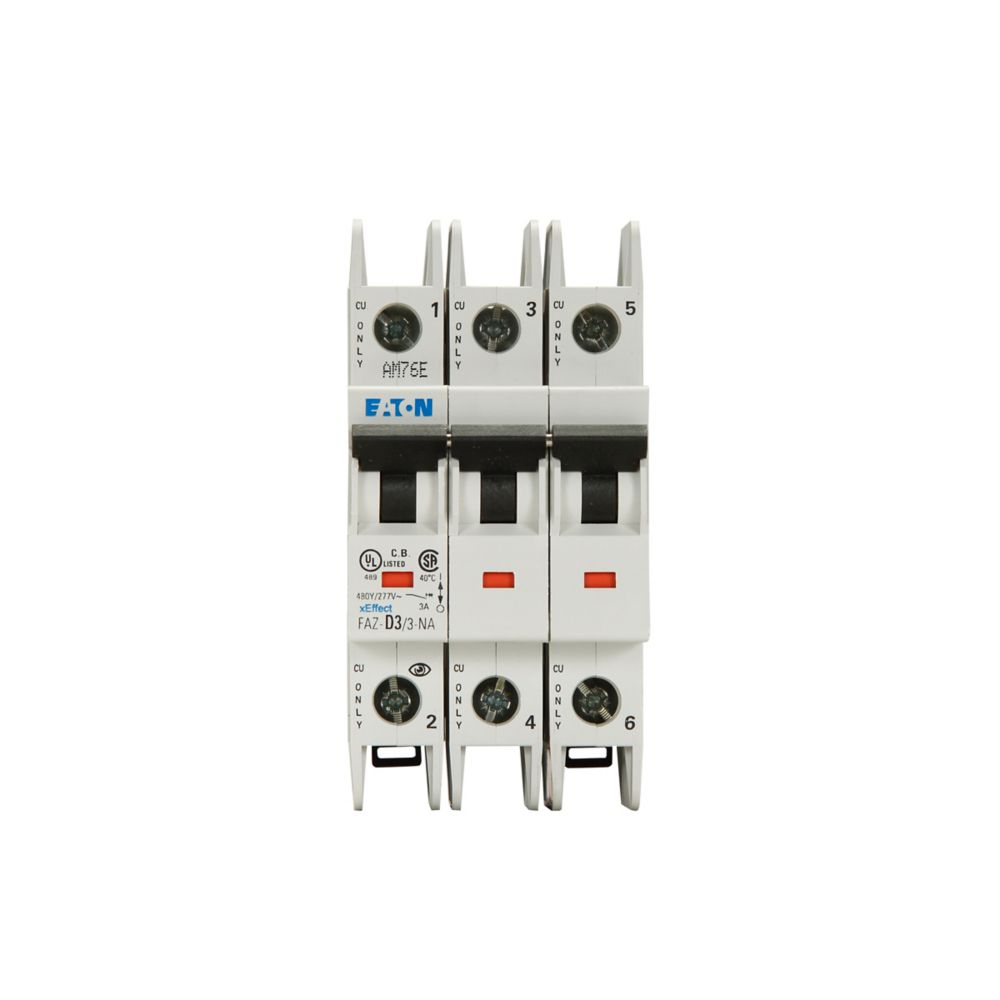

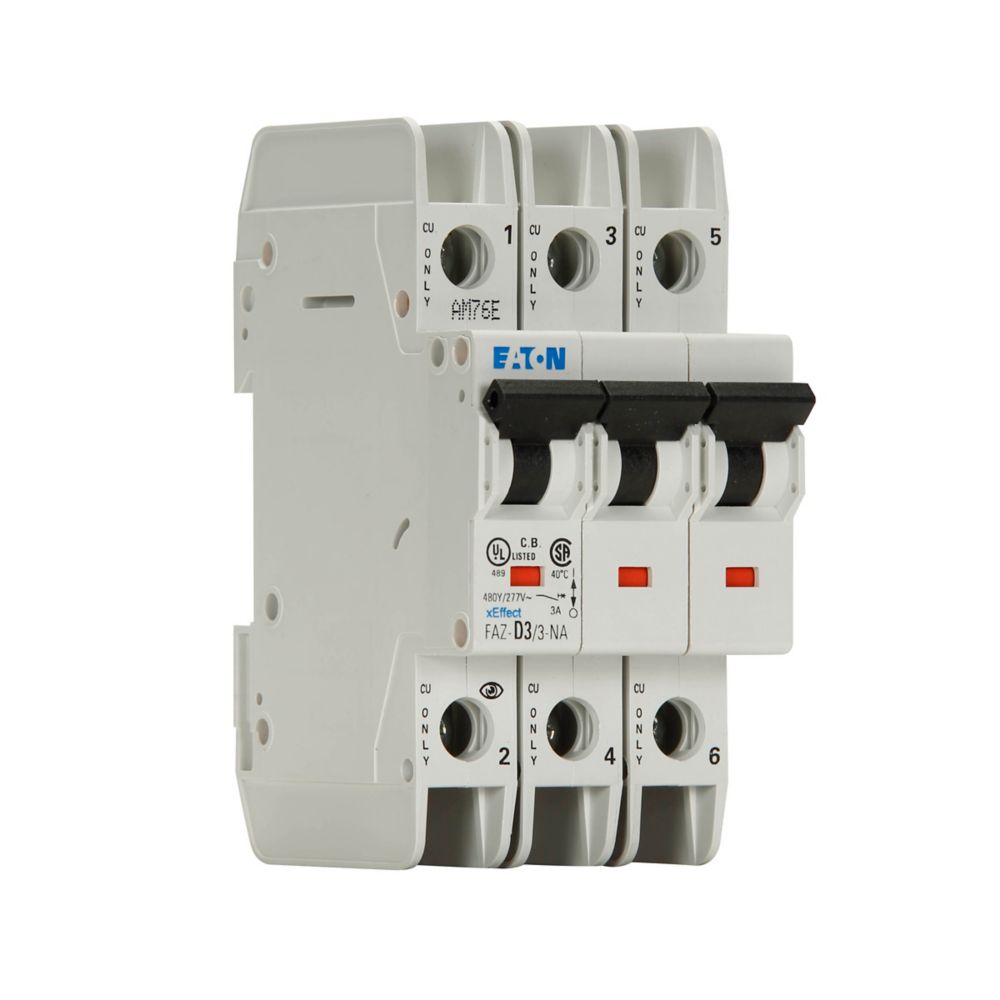

FAZ-D3/3-NA - Eaton 3A 3-Pole Thermal Magnetic Circuit Breaker 277/480VAC 35mm DIN Rail Mount

FAZ-D3/3-NA

FAZ-D3/3-NA is a 3 Amp, 3-pole thermal magnetic circuit breaker from Eaton designed for reliable protection in electrical distribution systems.This miniature circuit breaker features a D curve trip characteristic suitable for high inrush current applications such as motors and transformers. It supports a voltage rating of 277/480VAC and 48/96VDC, with an interrupting rating of 10-14kAIC. The device mounts easily on a 35mm DIN rail and complies with UL 489, CSA, IEC, CE, and VDE certifications. It includes long time and instantaneous trip functions and accepts wire sizes from 18 to 6 AWG.

Key Specifications
• Amperage: 3 A
• Voltage Rating: 277/480 VAC, 48/96 VDC
• Poles: 3
• Mounting Type: 35mm DIN Rail
• Interrupting Rating: 10-14 kAIC
• Trip Curve: D (thermal magnetic)
• Frame/Series: FAZ
• Approvals: UL 489, CSA, IEC, CE, VDE
• Wire Gauge: 18 to 6 AWG
• Terminal Connection: Line and load lugs
• Operating Temperature: -4 to 140°F
• Actuator Type: Toggle handle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D3/3-NA
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ-NA
• Voltage : 480
• Amperage : 3
• Phase : 3
• Poles : 3
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508102137
• GTIN : 04015081021376
• Country of Origin : Spain
• Dimensions : 2 in x 4.25 in x 3 in (Length/Depth x Height x Width)
• Weight : 1
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
• Wire Size : 18 to 6 AWG, 18 to 10 AWG
