FAZ-D15/3-RT - Eaton 15A 3-Pole 277/480V D-Curve Miniature Circuit Breaker, Ring-Tongue, 15 kAIC, UL 1077, FAZ Series

FAZ-D15/3-RT

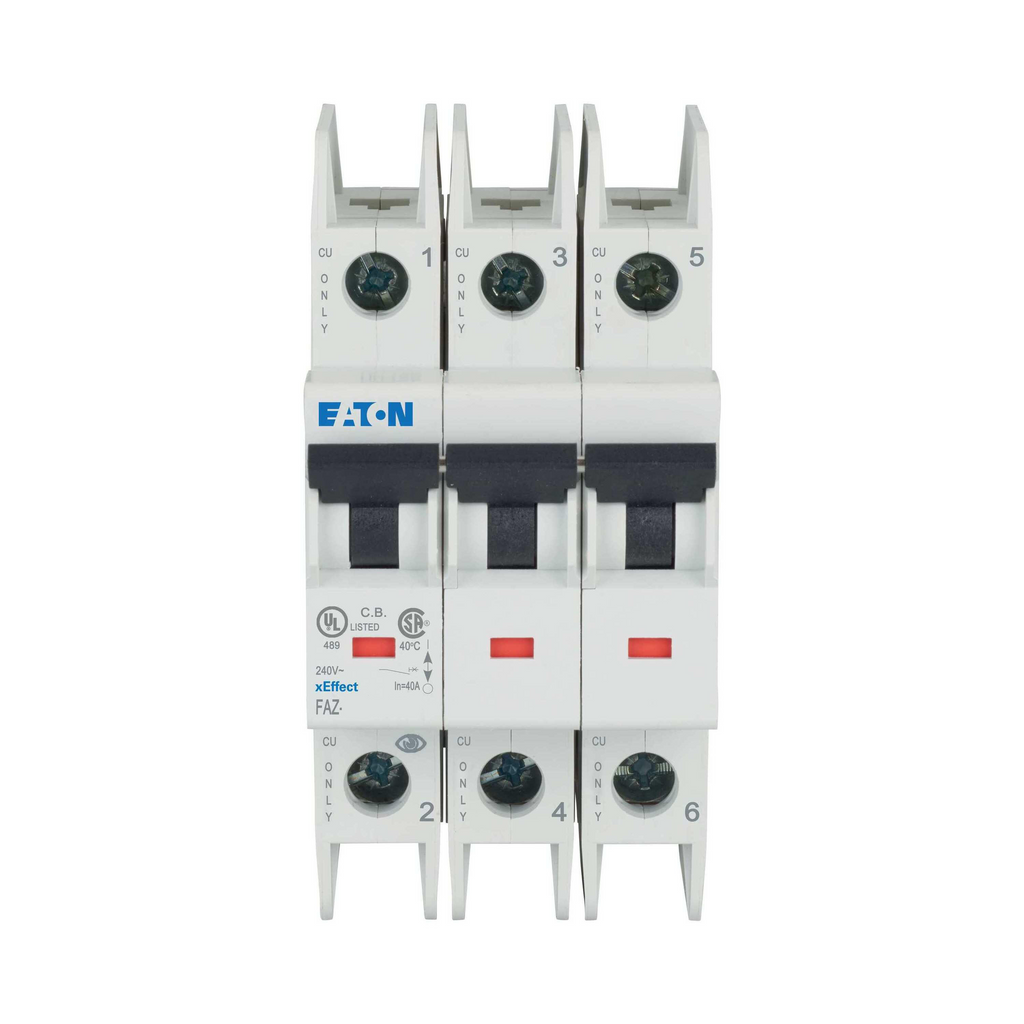

FAZ-D15/3-RT is a three-pole, 15 amp miniature circuit breaker from Eaton, designed for industrial and advanced commercial applications with high inrush current requirements.

This Eaton FAZ branch protector features a D-curve trip characteristic (10–20x In), making it ideal for circuits with motors, transformers, and other inductive loads. It is rated for 277/480V AC, offers a 15 kA interrupting capacity, and is certified to UL 1077, CSA C22.2 No. 235, and IEC 60947-2 standards. The breaker is DIN rail mountable and comes with ring-tongue terminals for secure connections.

Key Specifications
• Amperage: 15A
• Voltage: 277/480V AC
• Poles: 3
• Mounting Type: DIN rail
• Interrupt Rating: 15 kAIC
• Series/Frame: FAZ
• Trip Unit: D-curve (10–20x In)
• Certifications: UL 1077, CSA C22.2 No. 235, IEC 60947-2
• Terminals: Ring-tongue
• Application: Industrial, commercial, high inrush
• Frequency: 50–60 Hz
• Product Length/Depth: 2 in
• Product Height: 4.25 in
• Product Width: 2.25 in
• Product Weight: 1 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D15/3-RT
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ-RT
• Voltage : 480
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 14kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 015081021851
• Country of Origin : Germany
• Dimensions : 2 in x 4.25 in x 2.25 in (Length/Depth x Height x Width)
• Weight : 1
