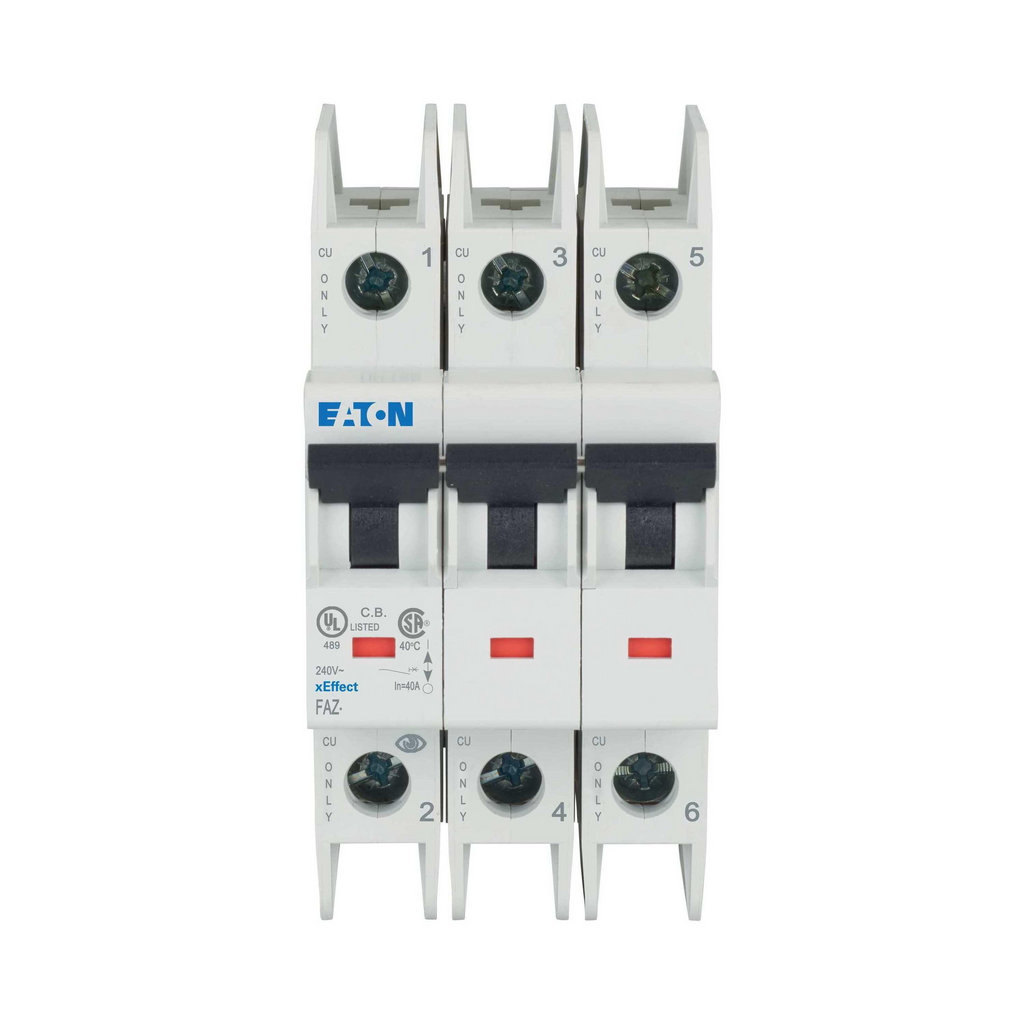

FAZ-D13/3 - Eaton 13A 3-Pole Miniature Circuit Breaker D Curve 480V UL 489 CSA Certified

FAZ-D13/3

FAZ-D13/3 is a 13 amp, 3-pole miniature circuit breaker from Eaton designed for industrial branch circuit protection.FAZ-D13/3 features a D curve trip unit suitable for high inrush current applications such as motors and transformers. It supports a rated operational voltage of up to 480V AC and 60V DC, with an interrupting capacity of 15 kA (IEC) and 10-14 kA (UL). The breaker mounts on a standard 35mm DIN rail and complies with IEC/EN 60947-2, UL 489, and CSA C22.2 No. 235 standards.

Key Specifications
• Amperage: 13 A
• Poles: 3
• Trip Curve: D Curve (10-20X /n)
• Rated Operational Voltage: 240/415 V AC (IEC), 277/480 V AC (UL)
• Rated DC Voltage: 60 V per pole
• Interrupting Capacity: 15 kA (IEC), 10-14 kA (UL)
• Mounting Type: 35mm DIN rail (IEC/EN 60715)
• Standards: IEC/EN 60947-2, UL 489, CSA C22.2 No. 235
• Terminal Type: Standard screw terminals
• Mechanical Dimensions: 80 mm height, 45 mm front width, 17.5 mm per pole mounting width
• Lifespan: Over 10,000 operations

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D13/3
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 13
• Phase : 3
• Poles : 3
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 015082788944
• Country of Origin : Romania
• Dimensions : 3 in x 3 in x 3 in (Length/Depth x Height x Width)
• Weight : 1
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
