FAZ-D10/1-NA-SP - Eaton 10 Amp 1 Pole Thermal Magnetic Circuit Breaker 277/480VAC 10kAIC DIN Rail Mount

Save $121.76
SKU: FAZ-D10/1-NA-SP-New
Condition: New
Price:
$82.54 $204.30
Stock:
Low inventory, please call for stock check
Factory Lead Time: 9 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

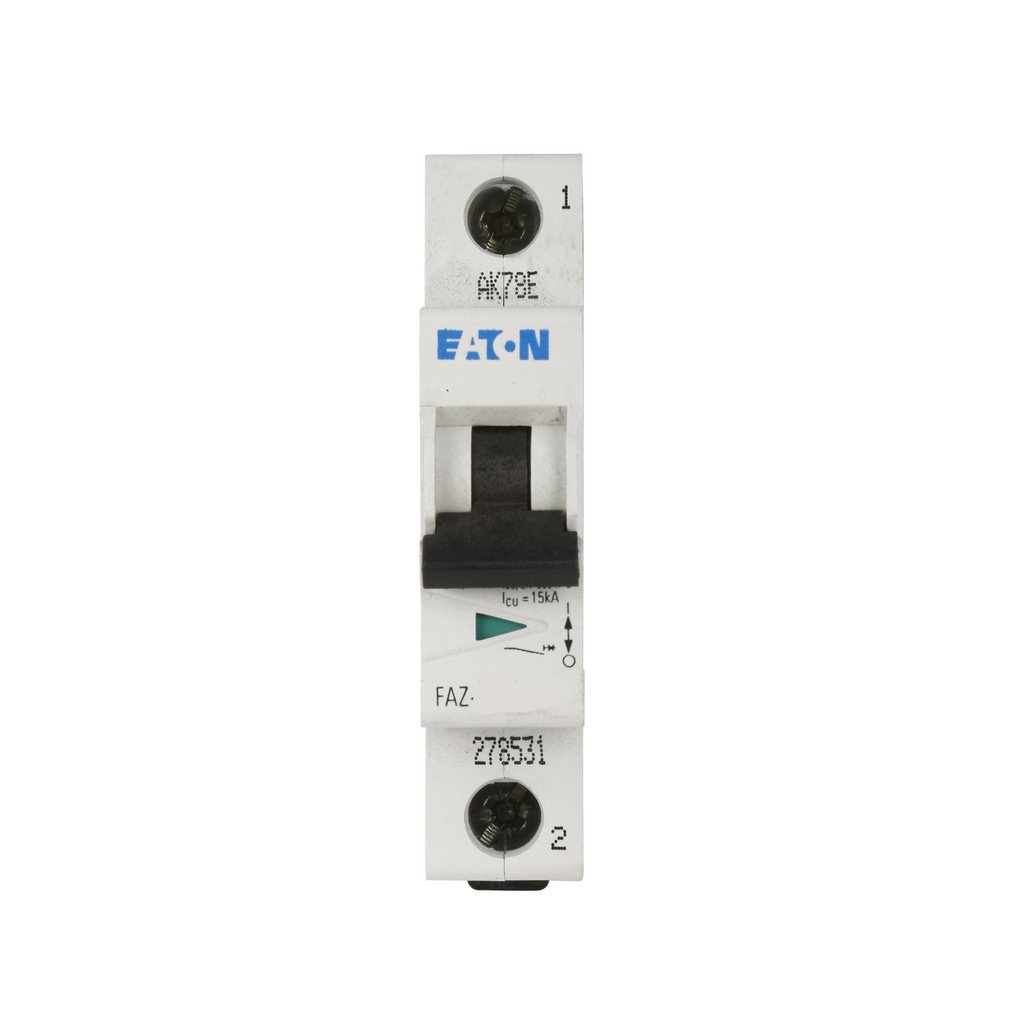

FAZ-D10/1-NA-SP - Eaton/ Eaton Moeller Feed-Thru 10 Amp 1 Pole Circuit Breaker - Essential Electric Supply
FAZ-D10/1-NA-SP - Eaton/ Eaton Moeller Feed-Thru 10 Amp 1 Pole Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
FAZ-D10/1-NA-SP - Eaton/ Eaton Moeller Feed-Thru 10 Amp 1 Pole Circuit Breaker - Essential Electric Supply
FAZ-D10/1-NA-SP - Eaton/ Eaton Moeller Feed-Thru 10 Amp 1 Pole Circuit Breaker - Essential Electric Supply

Description

FAZ-D10/1-NA-SP


FAZ-D10/1-NA-SP is a 1 pole, 10 amp thermal magnetic circuit breaker from Eaton designed for industrial branch circuit protection.This Eaton FAZ-D10/1-NA-SP circuit breaker features a 10 amp current rating and supports voltages of 277/480VAC and 48VDC. It has a 10kA interrupting rating and mounts on a 35mm DIN rail. The breaker includes long time and instantaneous trip functions (D curve) suitable for high inrush current applications such as motors and transformers. It is UL 489 and CSA certified, with a nylon body and standard screw terminals for line and load connections.
    Key Specifications
    • Manufacturer: Eaton
    • Part Number: FAZ-D10/1-NA-SP
    • Amperage: 10 A
    • Voltage Rating: 277/480 VAC, 48 VDC
    • Number of Poles: 1
    • Mounting Type: 35mm DIN Rail
    • Interrupting Rating: 10 kAIC
    • Trip Type: Thermal Magnetic, D Curve (Long Time and Instantaneous)
    • Certifications: UL 489, CSA C22.2 No. 235, IEC, CE, VDE, CCC
    • Terminal Connection: Screw terminals, line and load
    • Body Material: Nylon
    • Operating Temperature: -4 to 140°F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: FAZ-D10/1-NA-SP
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : FAZ Series
  • Type : FAZ
  • Voltage : 3
  • Amperage : 10
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kA@480/277V
  • Connection : Feed-Thru
  • Functions : LI - Long Time and Instantaneous
  • Terminal Connection : Screw Clamp
  • Frame Size : 40A/FAZ
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
  • Protection : Thermal Magnetic

Product Data

  • UPC : 015081636703
  • Country of Origin : Spain
  • Dimensions : 1 in x 4.25 in x 3 in (Length/Depth x Height x Width)
  • Weight : 0.25
  • Standards : CSA Certified, IEC 60947-2, UL 489 Listed
  • Certification : CSA Certified, IEC 60947-2, UL 489 Listed
