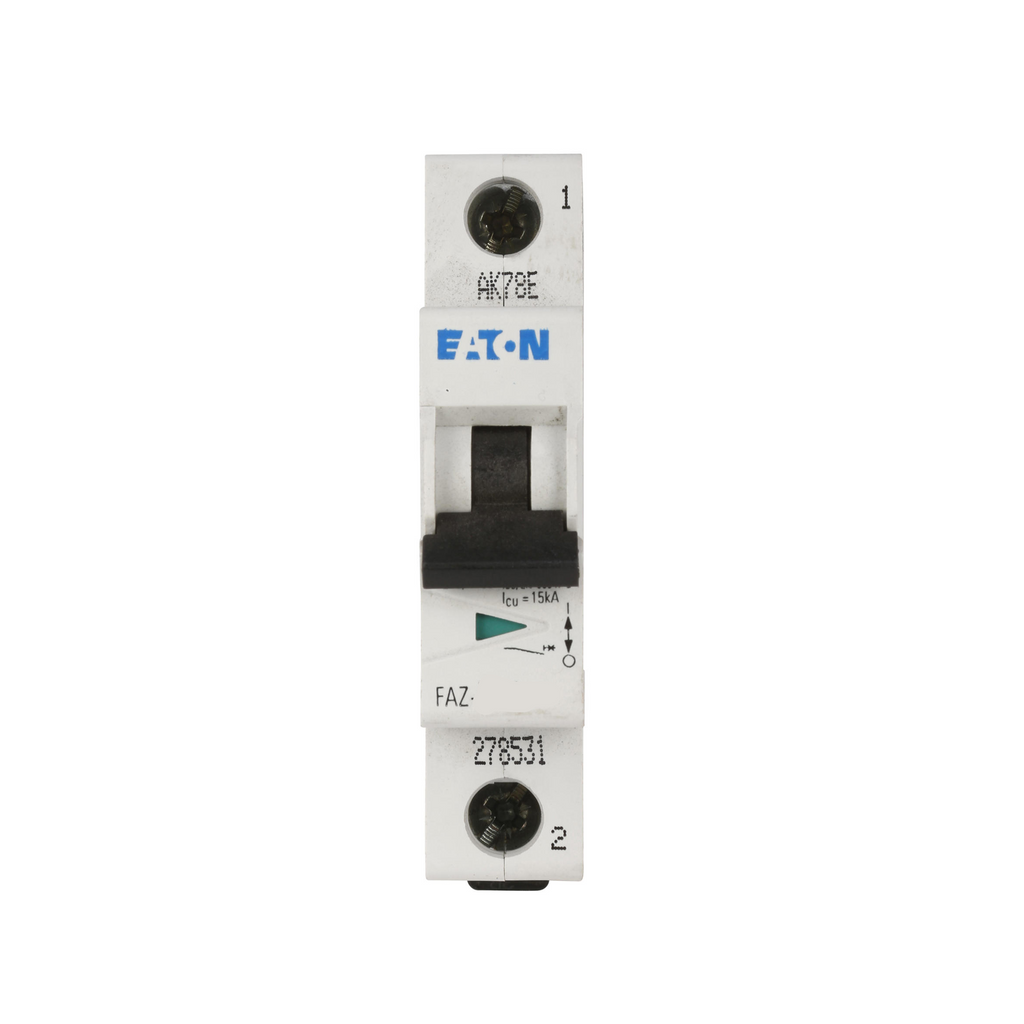

FAZ-D1/1-SP - Eaton 1A 277V Single-Pole D Curve Miniature Circuit Breaker, UL 1077 Supplementary Protector, DIN Rail Mount, 15kA Interrupt Rating, FAZ Series

FAZ-D1/1-SP

FAZ-D1/1-SP Eaton miniature circuit breaker provides reliable supplementary protection for circuits with high inrush currents, such as motors and transformers.

This single-pole, current-limiting breaker features a D curve trip characteristic (10–20x rated current), making it ideal for applications requiring tolerance to high startup surges. It is UL 1077 listed, suitable for industrial control panels, and mounts on standard 35mm DIN rail for easy installation.

Key Specifications
• Amperage: 1A
• Voltage: 277V AC
• Poles: 1
• Mounting Type: DIN Rail
• Interrupt Rating: 15kAIC
• Series/Frame: FAZ
• Trip Unit: Thermal-magnetic, D curve (10–20x)
• Certifications: UL 1077, IEC 60947-2, CSA C22.2 No.235
• Frequency: 50–60 Hz
• Terminals: Standard screw
• Application: High inrush current protection
• Package: Single unit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-D1/1-SP
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 277
• Amperage : 1
• Phase : 1
• Poles : 1
• AIC rating : 10kA@277V
• Connection : Din Rail
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 786680131868
• GTIN : 04015081636822
• Country of Origin : Romania
• Dimensions : 0.69 in x 0.75 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.27
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
