FAZ-C63/3 - Eaton 63A 3-Pole Supplementary Protector Circuit Breaker, 277/480VAC, 96VDC, 15kAIC, C Curve, UL 1077, CSA, IEC 60947-2, DIN Rail Mount

FAZ-C63/3

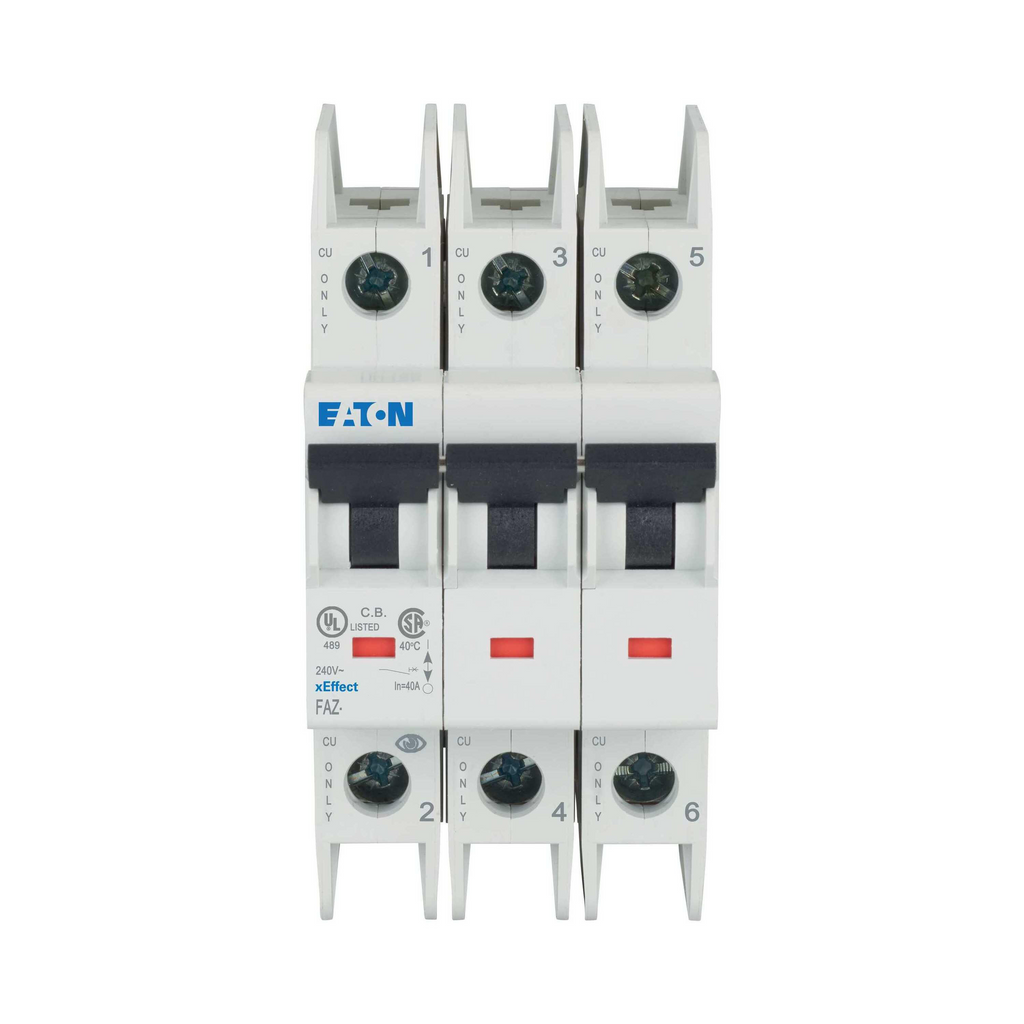

FAZ-C63/3 is an Eaton industrial miniature circuit breaker designed as a supplementary protector for applications with medium inrush currents, such as small transformers and pilot devices.

This three-pole, thermal magnetic circuit breaker features a 63A amperage rating, 277/480VAC and 96VDC voltage rating, and a 15kA interrupting capacity. It is certified to UL 1077, CSA C22.2 No.235, and IEC 60947-2 standards, ensuring reliable protection in a compact, DIN rail-mountable form factor. The C curve trip characteristic provides optimal performance for circuits with moderate inrush currents.

Key Specifications

• Part Number: FAZ-C63/3
• Manufacturer: Eaton
• Amperage: 63A
• Voltage: 277/480VAC, 96VDC
• Poles: 3
• Mounting Type: DIN rail
• Interrupt Rating: 15kAIC
• Series/Frame: FAZ
• Trip Unit: C Curve (thermal magnetic)
• Certifications: UL 1077, CSA C22.2 No.235, IEC 60947-2
• Frequency: 50-60 Hz
• Terminals: Standard
• Application: Supplementary protection for medium inrush loads

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-C63/3
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 63
• Phase : 3
• Poles : 3
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 015082788791
• Country of Origin : Romania
• Dimensions : 2.07 in x 2.07 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.8
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
