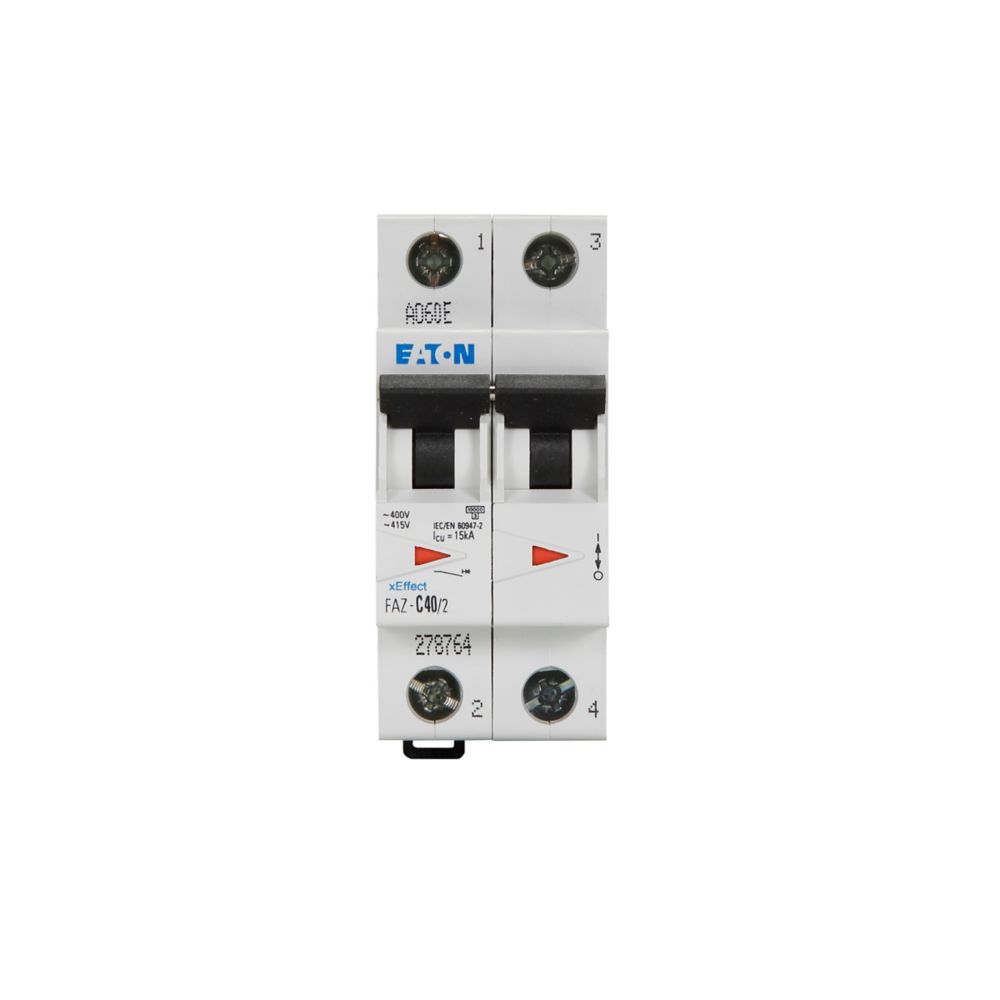

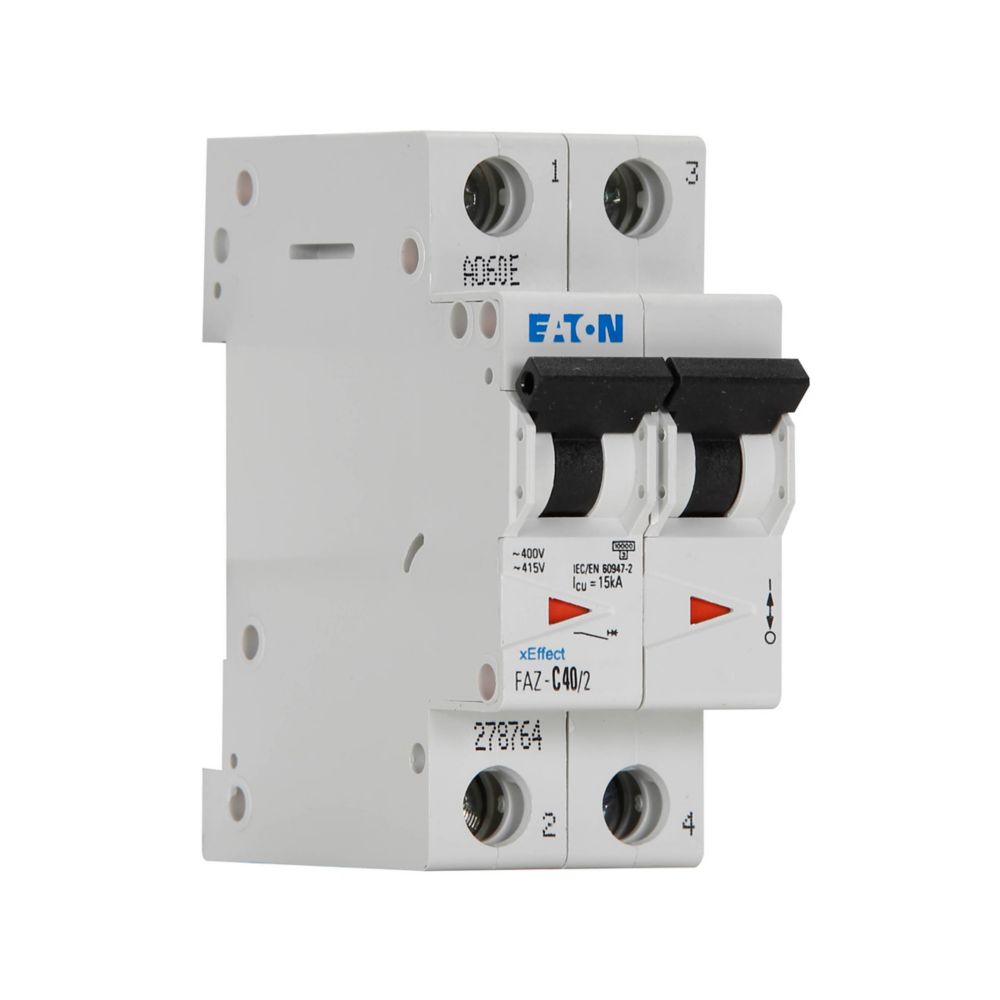

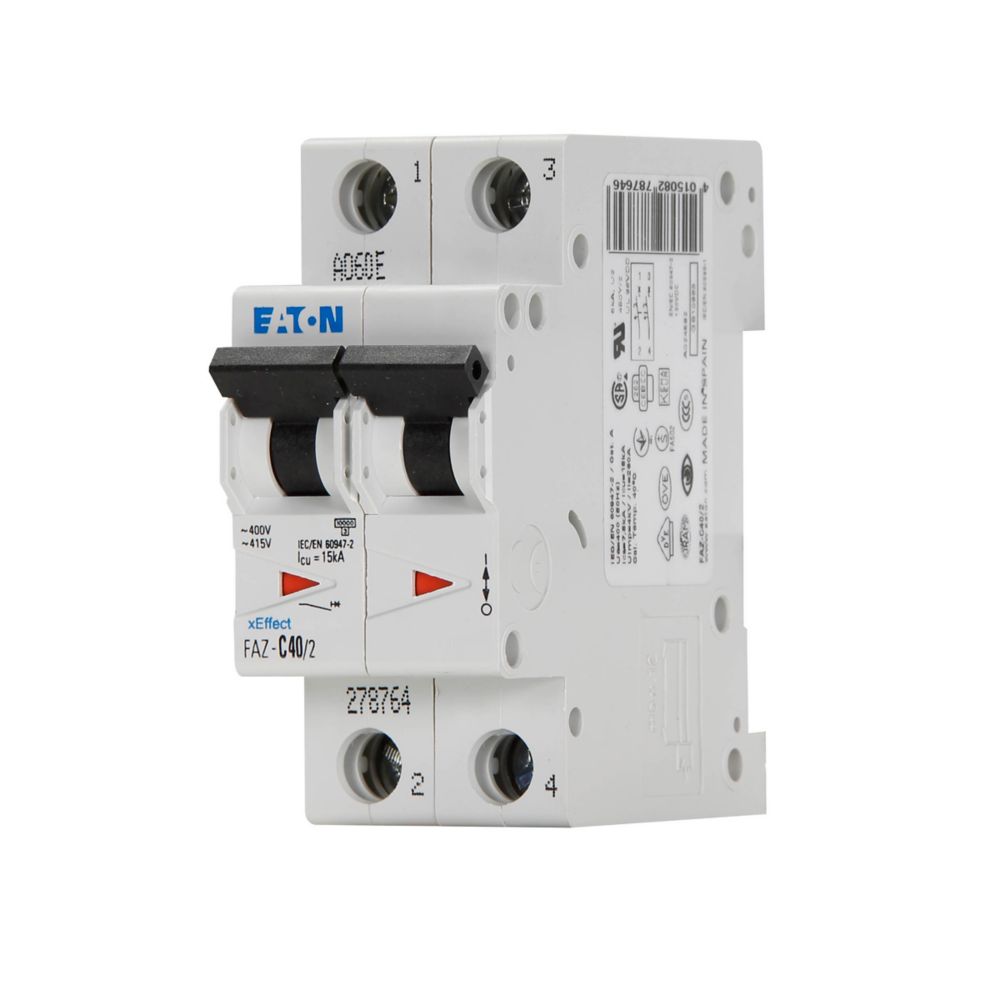

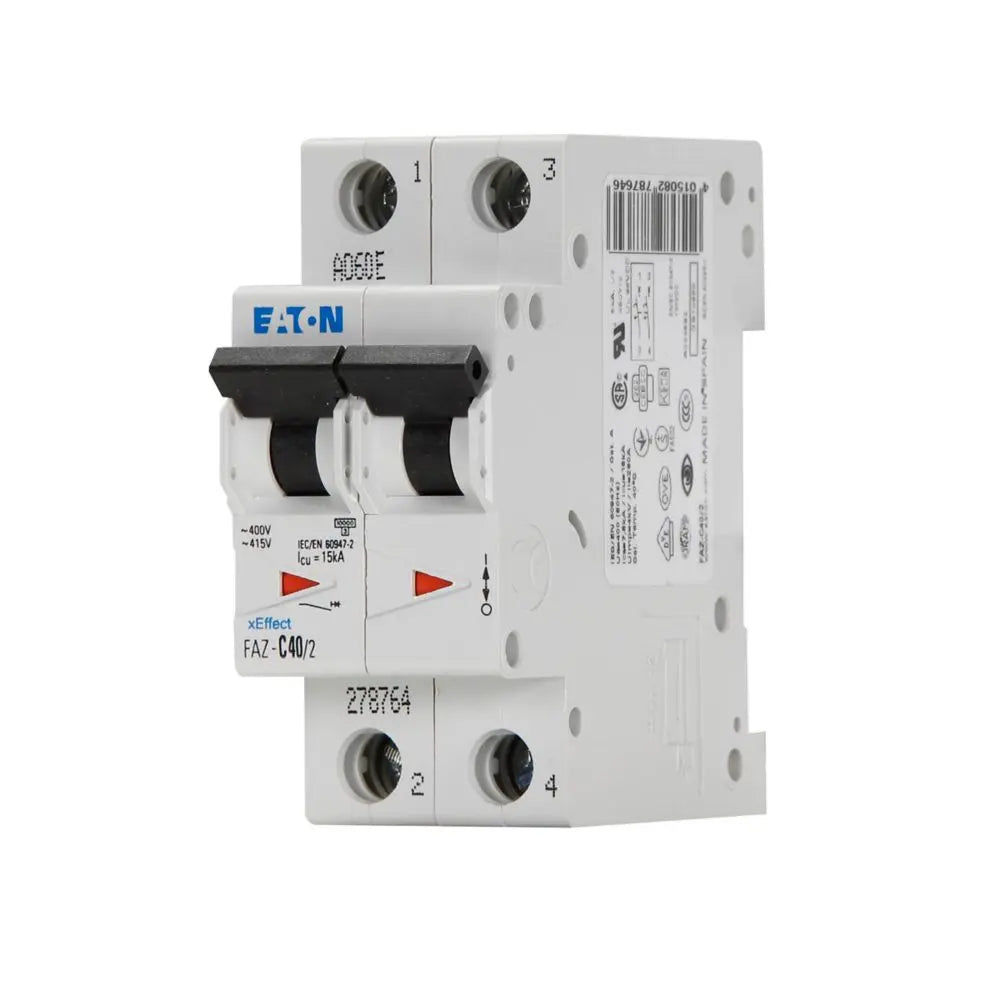

FAZ-C40/2-NA - Eaton 40A 2-Pole C Curve Thermal Magnetic Circuit Breaker 277/480V UL 489 Supplementary Protector

FAZ-C40/2

FAZ-C40/2-NA is a 40 amp, 2-pole, C curve thermal magnetic circuit breaker designed for medium inrush current applications. It provides reliable branch circuit protection with a compact design.FAZ-C40/2-NA features a 10 kA interrupting rating at 277/480 VAC, suitable for industrial and commercial use. It mounts on a 35mm DIN rail and includes screw terminals for secure wiring. This UL 489 listed supplementary protector is ideal for protecting small transformers and pilot devices, with a trip type of 5-10X/n and frequency rating of 50-60 Hz.

Key Specifications
• Amperage Rating: 40 A
• Voltage Rating: 277/480 VAC, 48/96 VDC
• Number of Poles: 2
• Trip Curve: C curve
• Trip Type: Thermal magnetic, 5-10X/n
• Interrupting Rating: 10 kAIC @ 277/480 VAC
• Mounting Type: 35mm DIN rail
• Terminals: Screw
• Certifications: UL 489 Listed, CSA Certified
• Frequency: 50-60 Hz
• Application: Medium inrush current protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-C40/2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ
• Voltage : 480
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 4 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508278764
• GTIN : 04015082787646
• Country of Origin : Romania
• Dimensions : 1.38 in x 1.38 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.53
• Standards : CSA C22.2 No. 235, IEC 60947-2, UL 1077
• Certification : CSA C22.2 No. 235, IEC 60947-2, UL 1077
