FAZ-C15/3-NA - Eaton 15A 3-Pole Miniature Circuit Breaker C Curve 480Y/277V 14kA DIN Rail Mount

FAZ-C15/3-NA

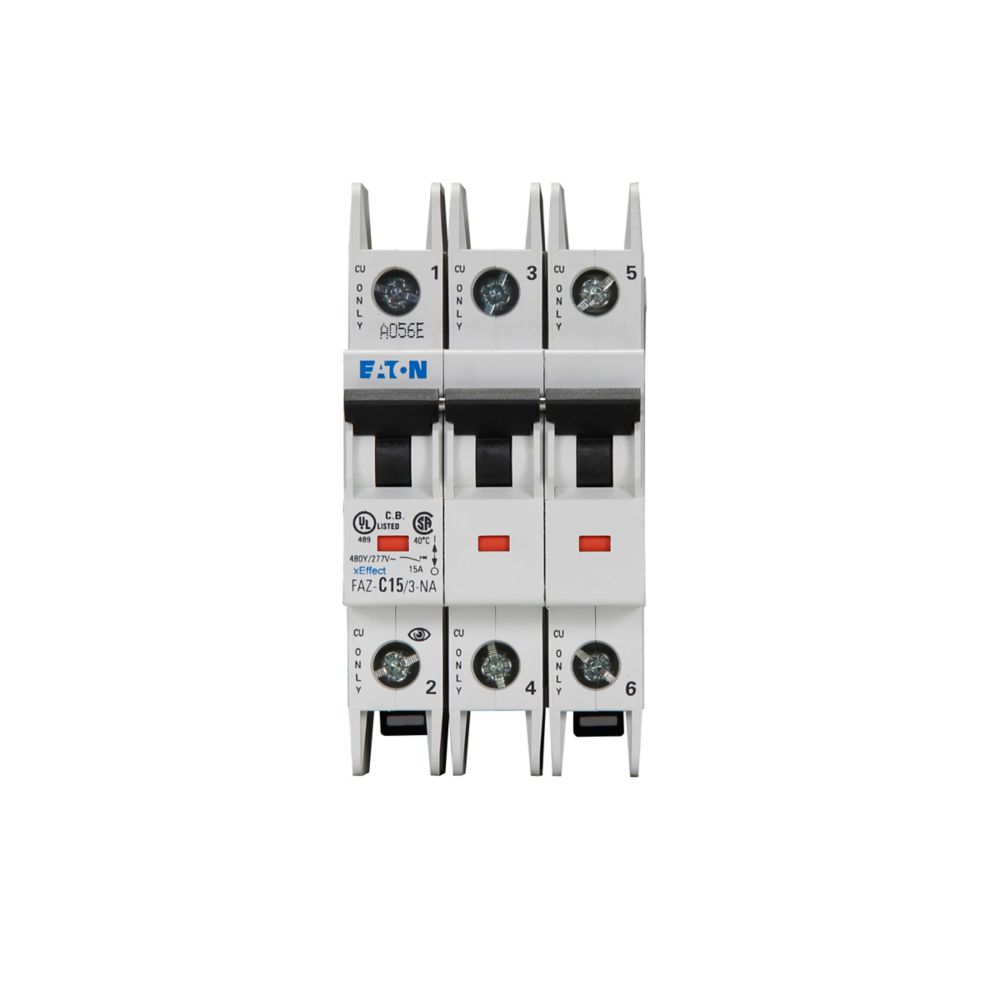

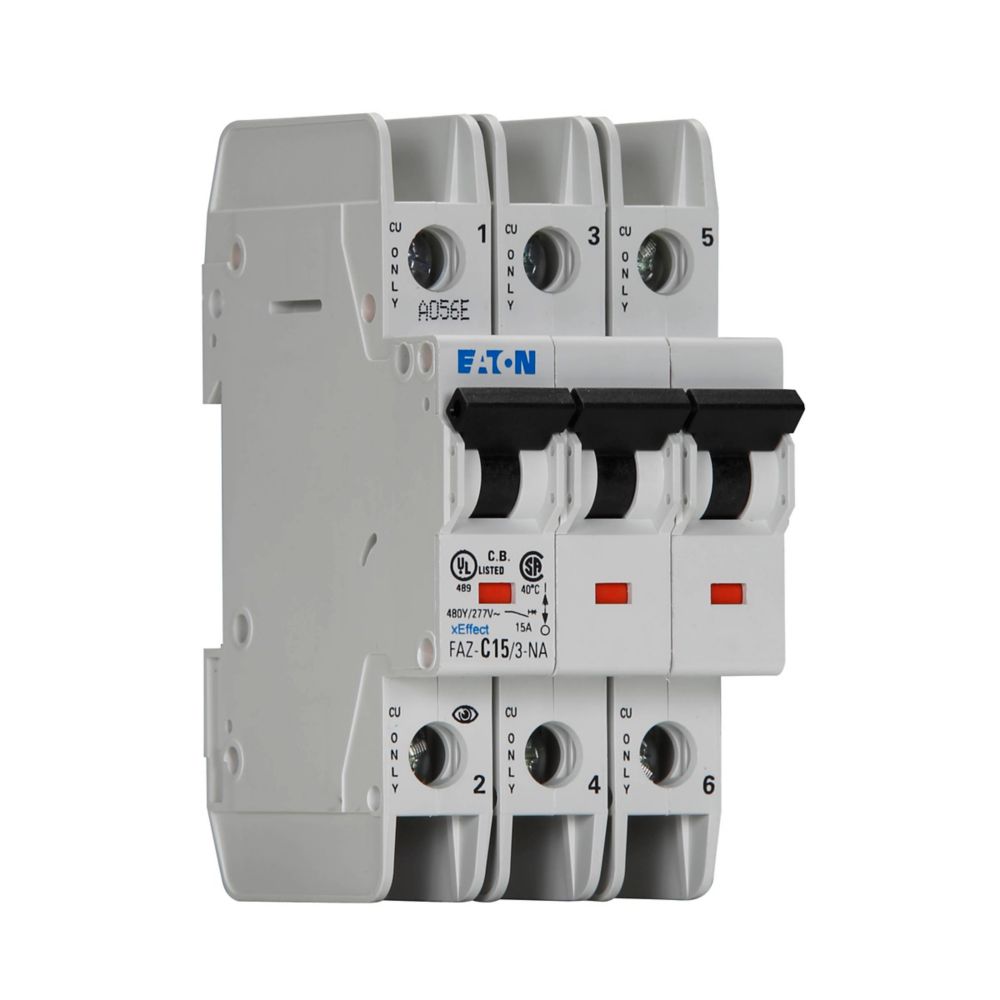

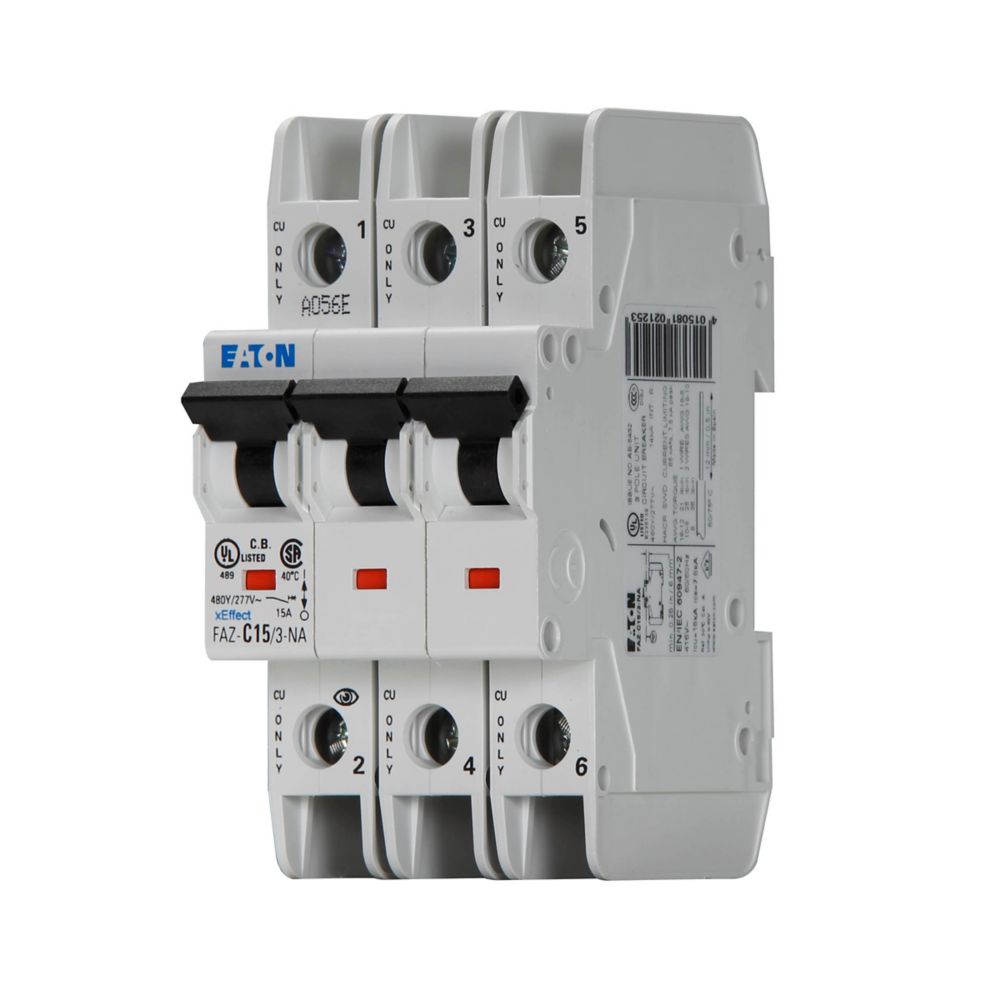

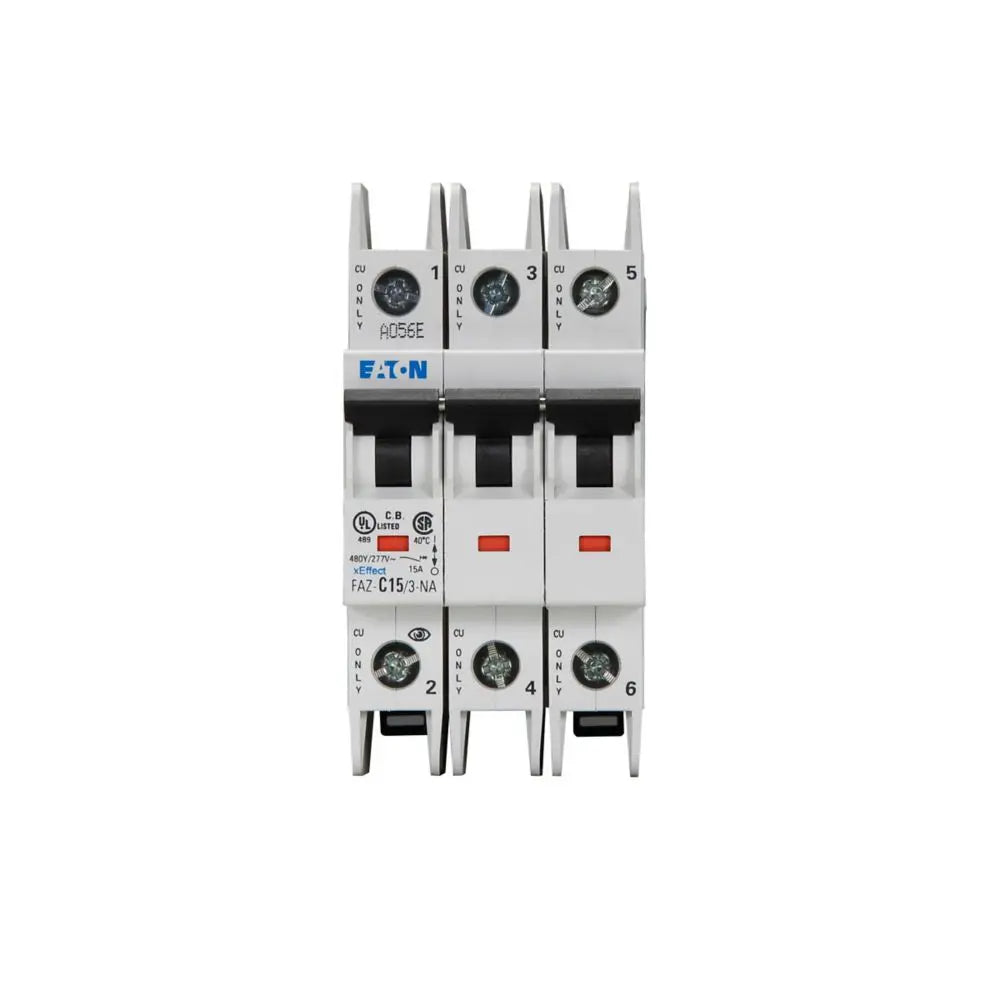

FAZ-C15/3-NA is a 15 amp, 3-pole miniature circuit breaker from Eaton designed for branch circuit protection with a C curve trip characteristic.This Eaton FAZ-C15/3-NA circuit breaker features a 14 kA interrupt rating at 480Y/277 VAC, suitable for industrial and commercial applications. It mounts on a standard 35mm DIN rail and complies with UL 489 and IEC 60947-2 standards. The breaker offers thermal magnetic trip protection with a 5-10x rated current trip range, optimized for medium inrush currents.

• Amperage: 15 A
• Poles: 3
• Voltage Rating: 480Y/277 VAC, 96 VDC
• Interrupt Rating: 14 kA (UL 489)
• Trip Curve: C (5-10x In)
• Mounting Type: 35mm DIN Rail
• Standards: UL 489, IEC 60947-2, CSA C22.2 No. 5
• Thermal Magnetic Trip Unit
• Frequency: 50/60 Hz
• Supplementary Protector Type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAZ-C15/3-NA
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAZ Series
• Type : FAZ-NA
• Voltage : 5
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 14kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Screw Clamp
• Frame Size : 40A/FAZ
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 18 AWG Max. Wire Size 6 AWG
• Protection : Thermal Magnetic

Product Data

• UPC : 01508102125
• GTIN : 04015081021253
• Country of Origin : Spain
• Dimensions : 2.1 in x 4.13 in x 2.97 in (Length/Depth x Height x Width)
• Weight : 1
• Standards : CSA Certified, IEC 60947-2, UL 489 Listed
• Certification : CSA Certified, IEC 60947-2, UL 489 Listed
• Wire Size : 18 to 6 AWG, 18 to 10 AWG
