- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
FAZ-B40/3

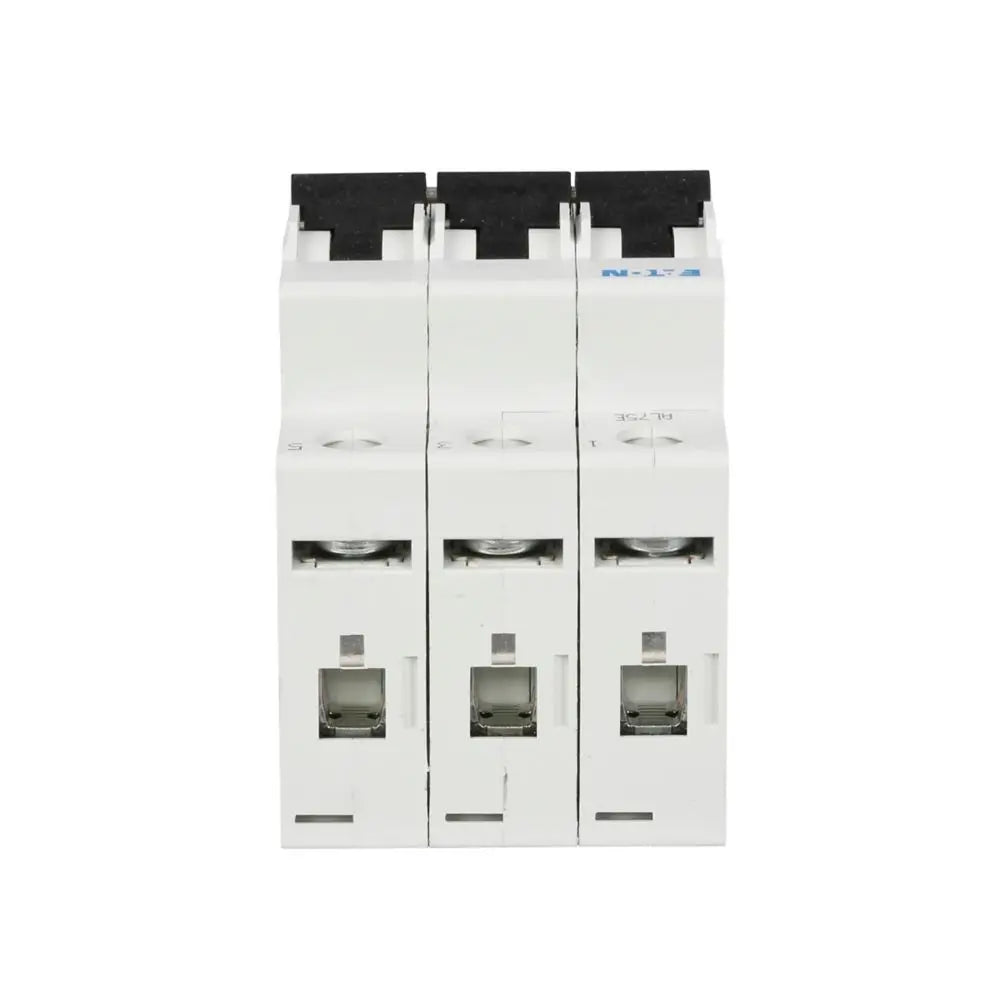

FAZ-B40/3 is a three-pole, 40A, 277/480V UL 489 industrial miniature circuit breaker from Eaton's FAZ series, designed for supplementary protection in applications with low inrush current. This Eaton FAZ-B40/3 circuit breaker features a B curve trip unit, screw terminals, and is suitable for 50-60 Hz systems. It is rated for 10 kAIC and 14 kAIC interrupting capacity and is ideal for use in industrial control panels and equipment requiring reliable protection.
- Part Number: FAZ-B40/3
- Manufacturer: Eaton
- Amperage Rating: 40A
- Number of Poles: 3
- Voltage Rating: 277/480V
- Interrupt Rating: 10 kAIC, 14 kAIC
- Series/Frame: FAZ
- Mounting Type: DIN Rail
- Terminal Type: Screw
- Trip Unit: B Curve
- Certifications: UL 489, CSA C22.2 No. 235
- Application: Supplementary protection, low inrush current
Specifications
- Part Number: FAZ-B40/3
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAZ Series
- Type : FAZ
- Voltage : 480
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01508278851
- GTIN : 04015082788513
- Dimensions : 2.07 in x 2.07 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.8
