Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
FAZ-B15/3-NA

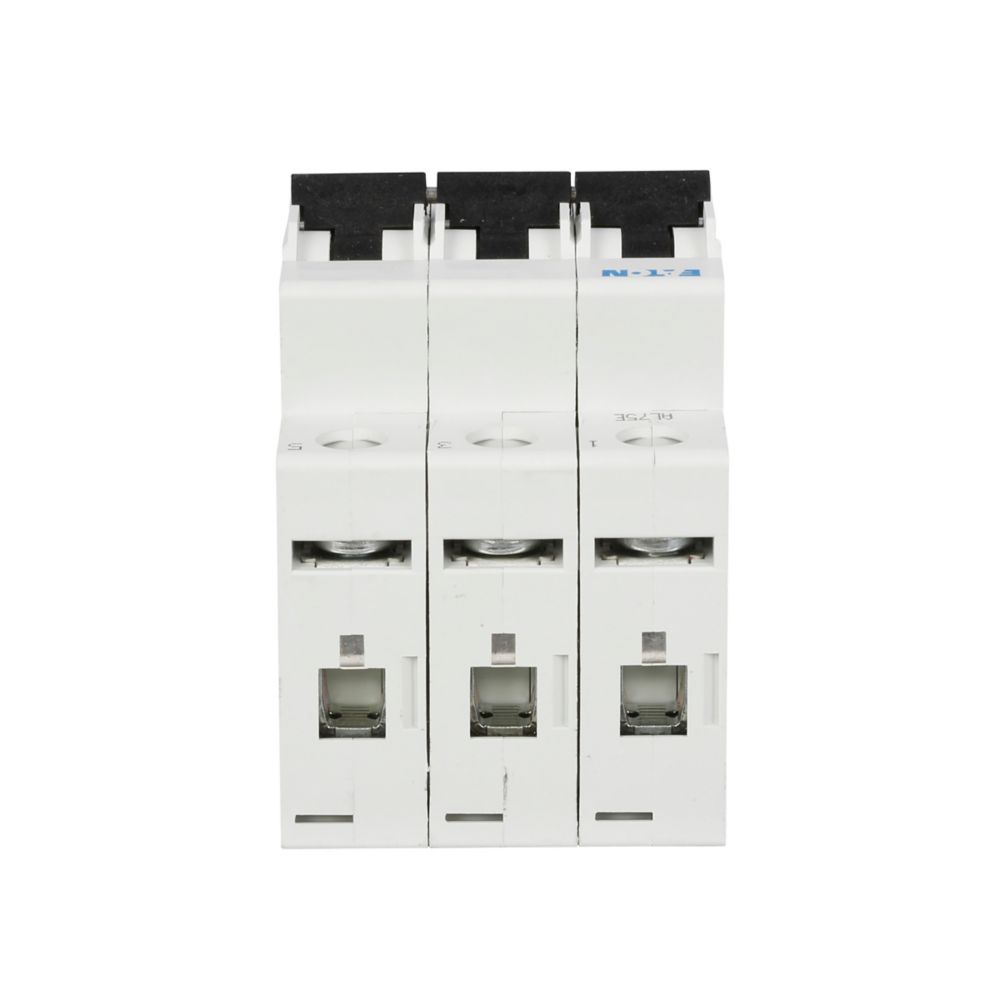

FAZ-B15/3-NA is a 3 pole, 15 amp thermal magnetic circuit breaker from Eaton designed for industrial and commercial applications.This Eaton FAZ-B15/3-NA circuit breaker features a 277/480VAC voltage rating, 3 poles, and a DIN rail mounting type. It provides reliable protection with a thermal magnetic trip unit including long time and instantaneous functions. The breaker has an interrupting rating of 14kAIC and 10kAIC, suitable for UL 489 and CSA certified installations. It supports feed-thru connection with line and load terminals and complies with RoHS standards.
- Manufacturer: Eaton
- Series/Frame: FAZ
- Amperage: 15 A
- Voltage Rating: 277/480 VAC
- Poles: 3
- Mounting Type: DIN Rail
- Interrupt Rating: 14kAIC, 10kAIC
- Trip Unit: Thermal Magnetic (LI - Long Time and Instantaneous)
- Connection Type: Feed-Thru
- Certifications: UL, CSA, IEC, CCC, VDE
- Terminal Connection: Line and Load
- Standards: RoHS Compliant
Specifications
- Part Number: FAZ-B15/3-NA
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAZ Series
- Type : FAZ-NA
- Voltage : 480
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 14kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01508129672
- GTIN : 04015081296729
- Country of Origin : Germany
- Dimensions : 2.5 in x 4.5 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.4
