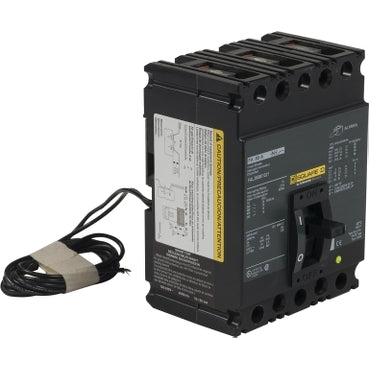

FAL36100MV - Schneider Electric 100A 600V 3-Pole Molded Case Circuit Breaker I-Line Thermal-Magnetic

FAL36100MV

FAL36100MV is a 100 amp, 600 volt, 3-pole molded case circuit breaker from Schneider Electric's I-Line series designed for unit mount applications.This circuit breaker features a thermal-magnetic trip unit with a breaking capacity of 14 kA at 600 V AC, 18 kA at 480 V AC, 25 kA at 240 V AC, and 10 kA at 250 V DC. It supports line rated current of 100 A and is suitable for use with AWG 14 to 1/0 copper or aluminum wire. The breaker is UL and CSA certified and includes lug-type electrical connections for both line and load.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 V AC, 250 V DC
• Number of Poles: 3P
• Mounting Type: Unit mount
• Interrupt Rating: 14 kA at 600 V AC, 18 kA at 480 V AC, 25 kA at 240 V AC, 10 kA at 250 V DC
• Trip Unit: Thermal-magnetic
• Wire Gauge: AWG 14 to 1/0 copper/aluminum
• Certifications: UL Listed, CSA Certified
• Series/Frame: I-Line
• Electrical Connection: Lug type (line and load)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FAL36100MV
• Manufacturer : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case



Product Data

• Weight : 4
