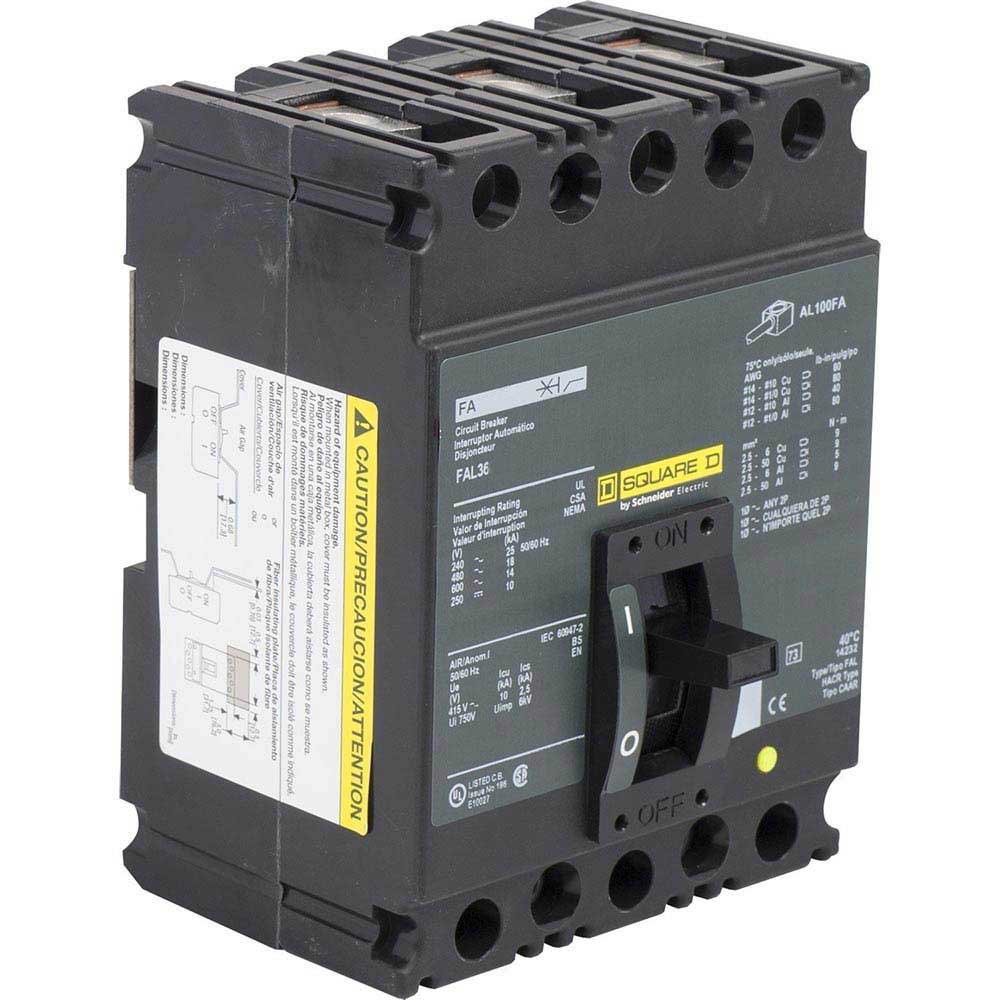

FAL36070 - Square D 70A 600V 3 Pole Feed-Thru Molded Case Circuit Breaker F Frame

FAL36070

FAL36070 is a 70 amp, 600 volt, 3 pole molded case circuit breaker from Square D designed for feed-thru mounting in F frame panels.This Square D FAL series breaker provides reliable thermal magnetic trip protection with long-time and instantaneous trip units. It features line and load side lug terminals, a 14kA interrupting rating at 600 VAC, and is UL listed and CSA certified for safety and performance. The breaker is compact and easy to install, suitable for industrial and commercial power distribution applications.

Key Specifications
• Amperage: 70A
• Voltage Rating: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupting Rating: 14kA @ 600 VAC, 18kA @ 480 VAC
• Series/Frame: FAL / F Frame
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Approvals: UL Listed, CSA Certified
• Terminal Type: Line and Load Lug
• Dimensions: Approx. 4.5" W x 4.13" D x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL36070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 078590142374
• GTIN : 00785901423744
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5
