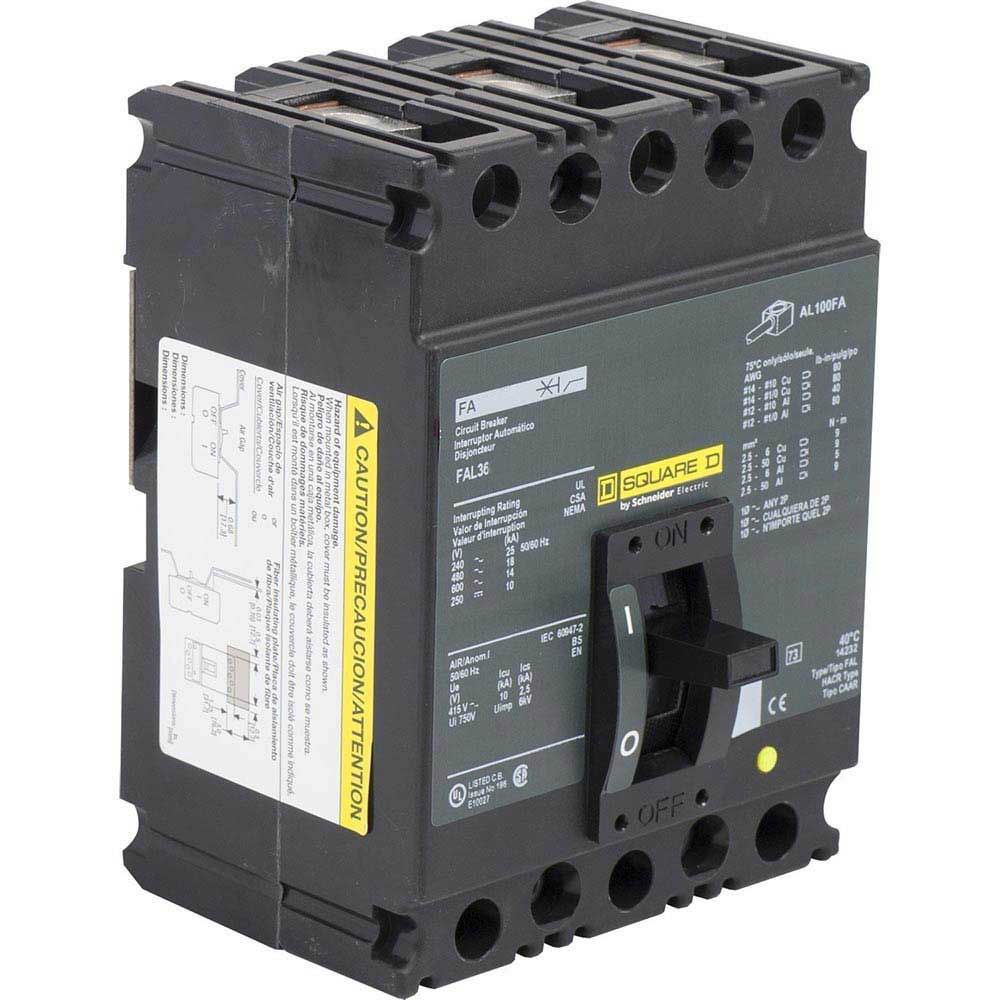

FAL36040 - Square D 40 Amp 600VAC 3 Pole Thermal Magnetic Circuit Breaker, FAL Series

FAL36040

This circuit breaker features a feed-thru mounting type with long-time and instantaneous (LI) trip functions. It has an interrupting rating of 18kAIC at 480V and is UL and CSA certified. The breaker is designed for panel mounting with line and load side lug terminals and meets HACR standards. Its compact dimensions are approximately 4.13 inches deep, 4.5 inches wide, and 6.4 inches high.

Key Specifications
• Amperage: 40 Amps
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: Feed-Thru
• Interrupting Rating: 18kAIC at 480V
• Series/Frame: FAL
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Certifications: UL, CSA
• Terminal Connection: Line and Load Side Lug
• Standards: HACR
• Dimensions: 4.13" D x 4.5" W x 6.4" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: FAL36040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 078590142366
• GTIN : 00785901423669
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5
• Wire Size : 12-1/0 AWG (Aluminum) 14-1/0 AWG (Copper)
