Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL36025

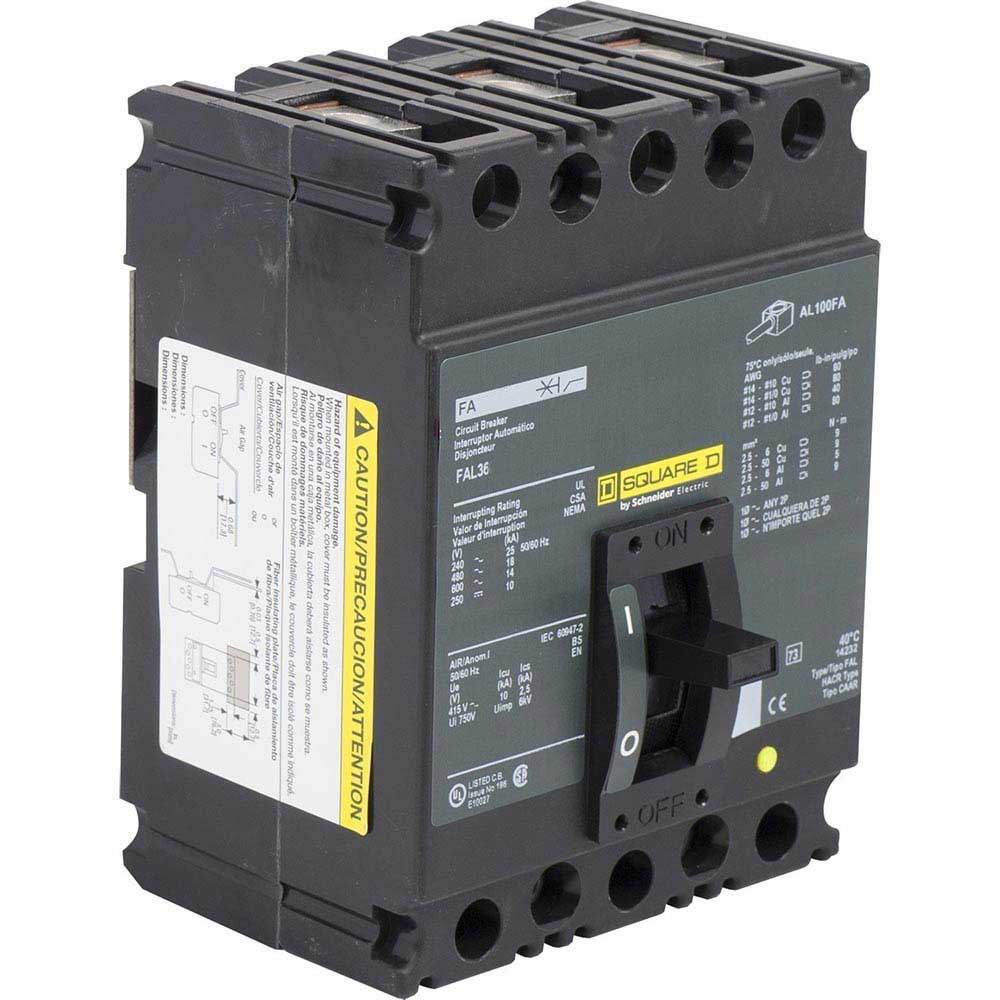

FAL36025 is a 25 amp, 600 volt, 3 pole feed-thru circuit breaker from Square D, featuring a thermal magnetic trip unit and F frame design.This molded case circuit breaker is designed for panelboard mounting with line and load side lug terminals. It offers an interrupting rating of 18kA at 480V and 14kA at 600V, suitable for industrial and commercial applications. The breaker includes long-time and instantaneous trip functions (LI) and is UL and CSA certified.
- Key Specifications
- Amperage: 25 Amps
- Voltage Rating: 600 VAC
- Poles: 3 Pole
- Mounting Type: Unit Mount
- Interrupting Rating: 18kA @ 480V, 14kA @ 600V
- Frame Type: FAL Series, F Frame
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Terminal Connection: Line and Load Side Lug
- Dimensions: 6" H x 4.5" W x 4.13" D
- Certifications: UL, CSA
- Connection Type: Feed-Thru
Specifications
- Part Number: FAL36025
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901529736
- GTIN : 00785901529736
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 4.44
- Certification : UL, CSA
