Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
FAL360152100

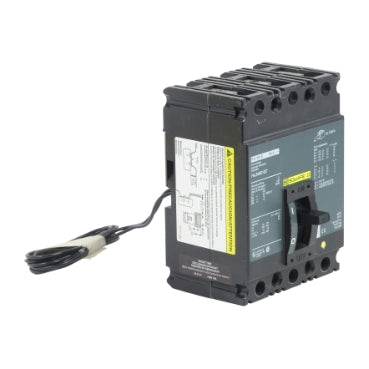

FAL360152100 is a Square D 15 Amp, 600 Volt, 3 Pole molded case circuit breaker designed for I-Line style plug-in mounting.This thermal-magnetic type circuit breaker features a 3-pole configuration with a 15 Amp current rating and a maximum voltage rating of 600 VAC and 250 VDC. It has an interrupting rating of 18 kA at 480 VAC and is UL and CSA certified. The breaker uses line and load lug terminals and belongs to the FA model family with an F frame type. It is suitable for 3-phase power distribution and provides reliable protection with a thermal-magnetic trip unit.
- Key Specifications
- Amperage: 15 Amp
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Interrupting Rating: 18 kA at 480 VAC
- Mounting Type: I-Line Plug-In
- Trip Unit: Thermal-Magnetic
- Frame Type: F Frame
- Terminal Type: Line and Load Lugs
- Certifications: UL Listed, CSA Approved
- Model Family: FA
- Phase: 3-Phase
Specifications
- Part Number: FAL360152100
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 600
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 5
