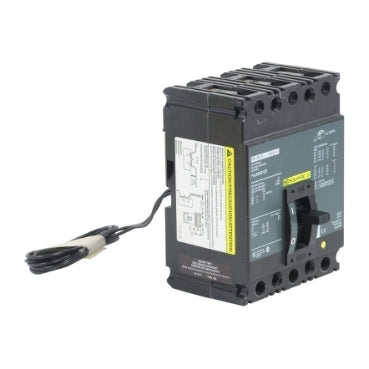

FAL34100G - Square D 100 Amp 3 Pole 480V Thermal Magnetic Molded Case Circuit Breaker

FAL34100G

FAL34100G is a 3 pole thermal magnetic molded case circuit breaker from Square D designed for industrial power distribution applications. This feed-thru connected breaker provides reliable overcurrent protection with long-time and instantaneous trip functions for enhanced system safety.Technical Specifications: The FAL34100G features a 100 amp current rating at 480 volts AC with an 18 kA interrupting capacity at 480V. It includes line and load side lug terminals for secure connections and meets HACR standards for motor circuit protection. The breaker measures 4.13 inches in length, 4.5 inches in width, and 6.4 inches in height, making it compatible with standard electrical enclosures.

• Current Rating: 100 Amps
• Voltage Rating: 480VAC
• Number of Poles: 3 Pole
• Frame Type: FAL
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection Type: Feed-Thru
• Terminal Type: Line and Load Side Lug
• Interrupting Rating: 18 kA at 480V
• Standards: HACR
• Dimensions: 4.13 x 4.5 x 6.4 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with ground fault shunt trip wiring protection

Specifications

• Part Number: FAL34100G
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 12
