Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL34080

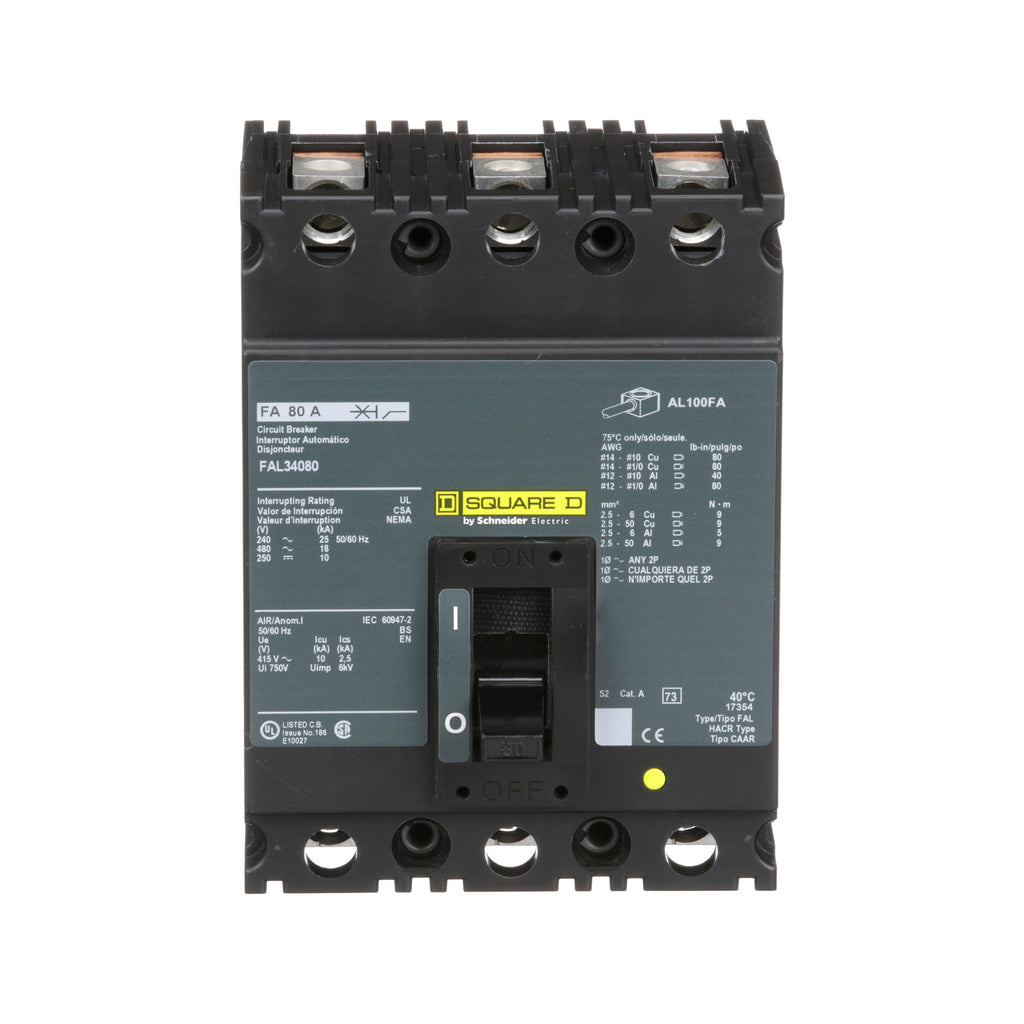

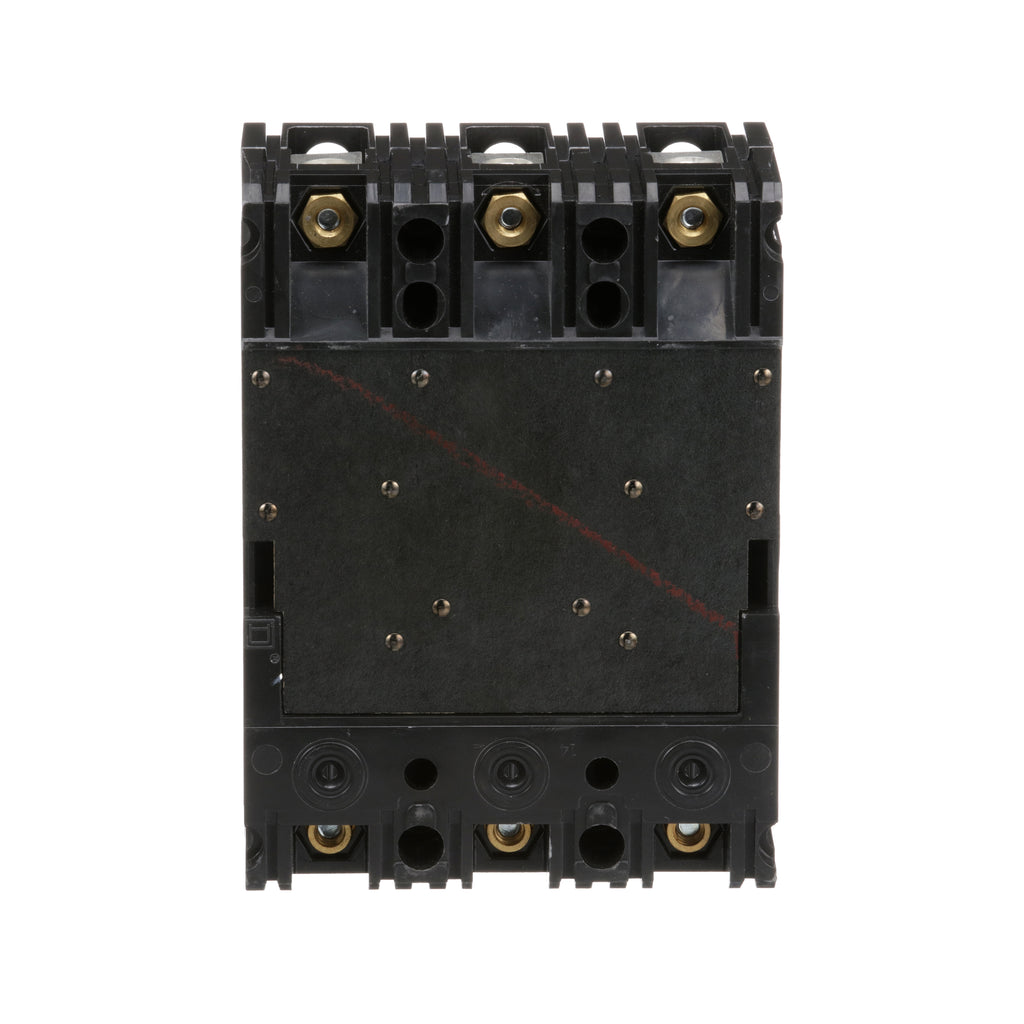

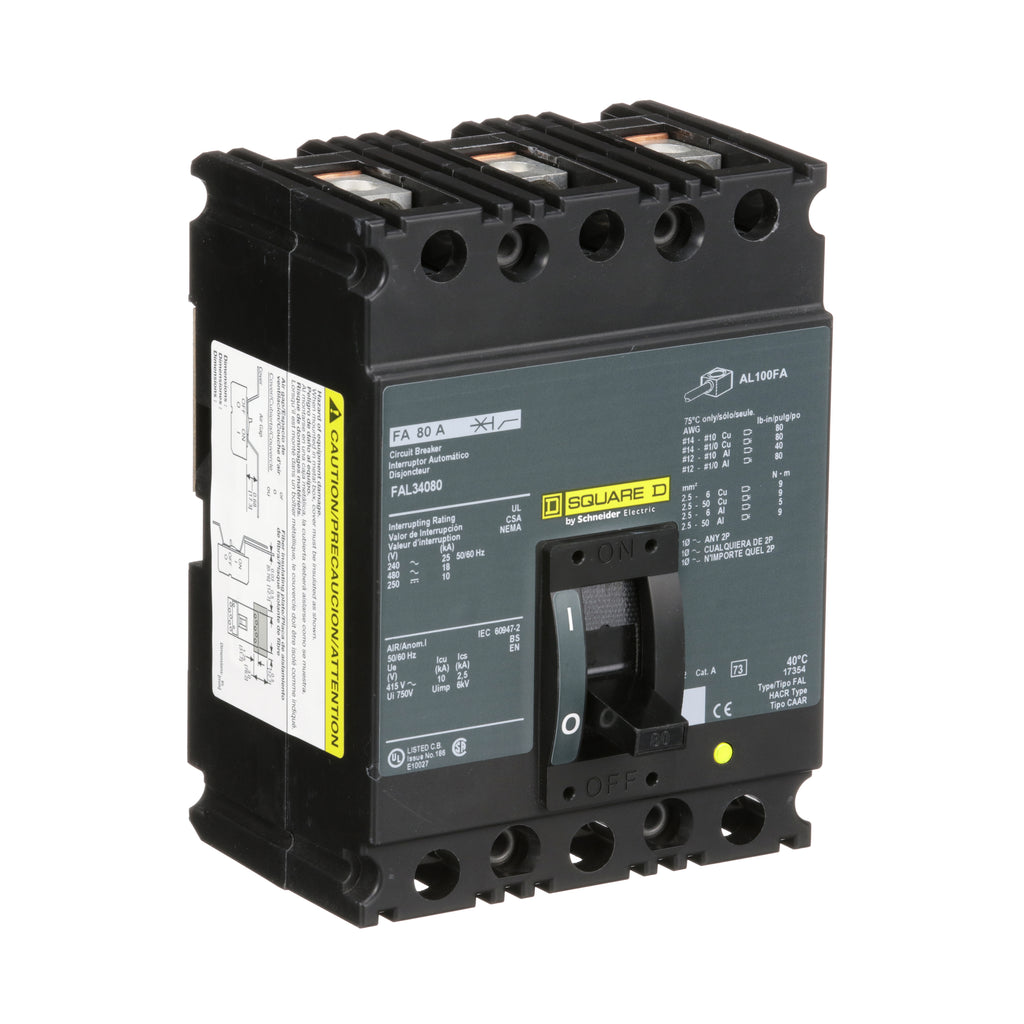

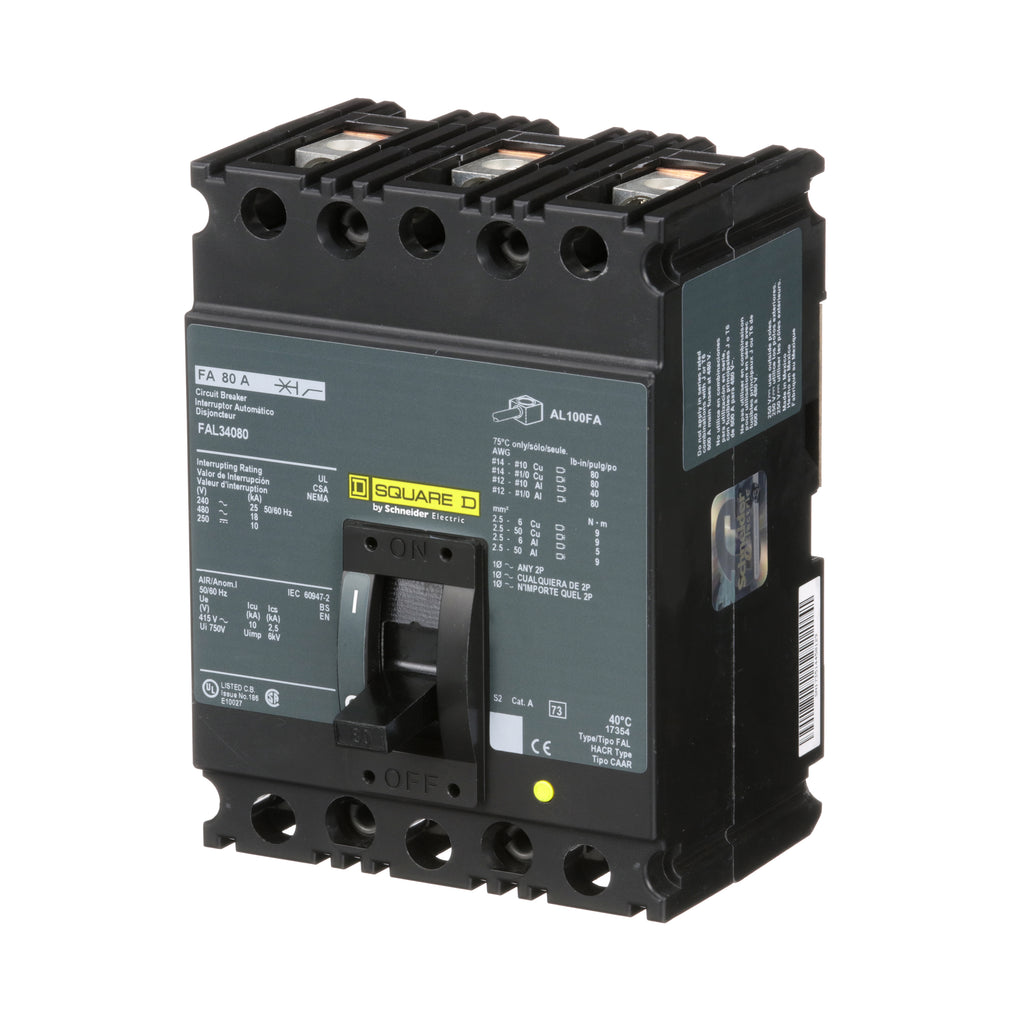

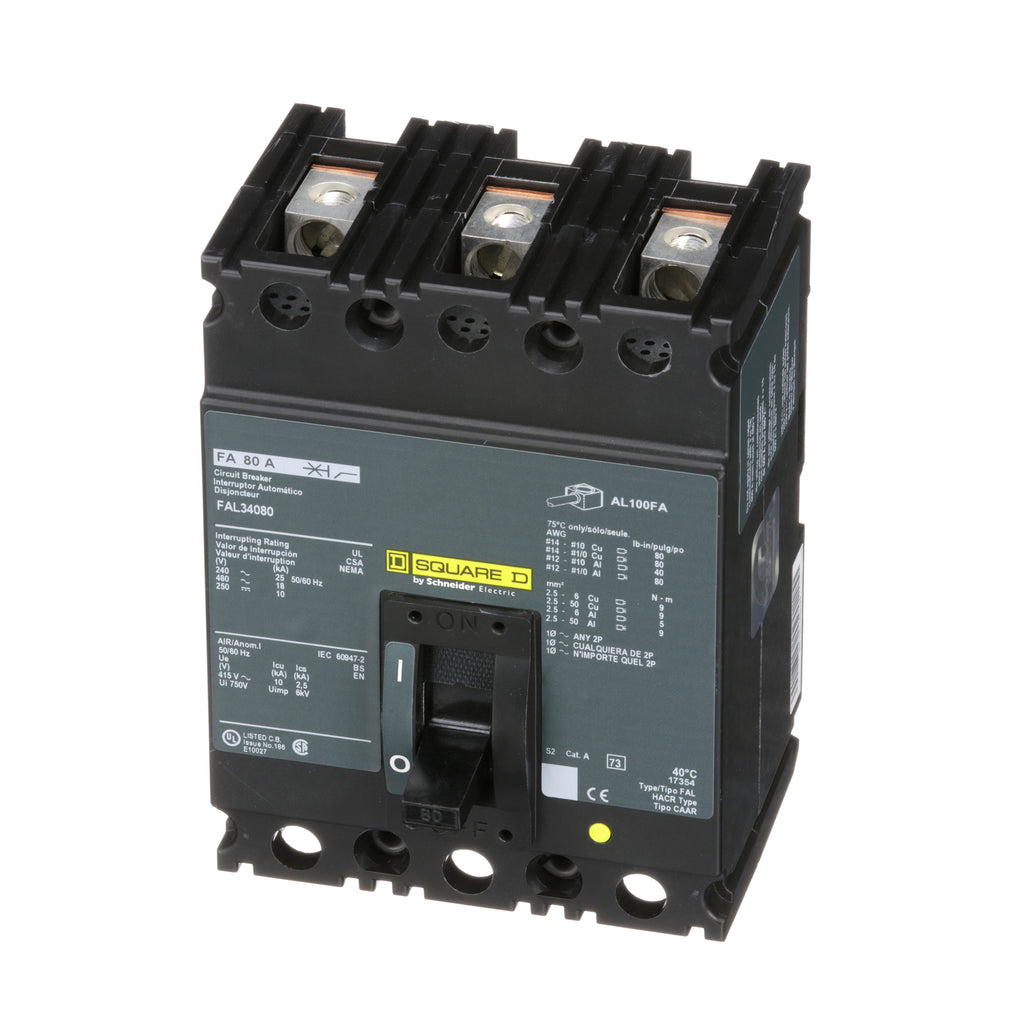

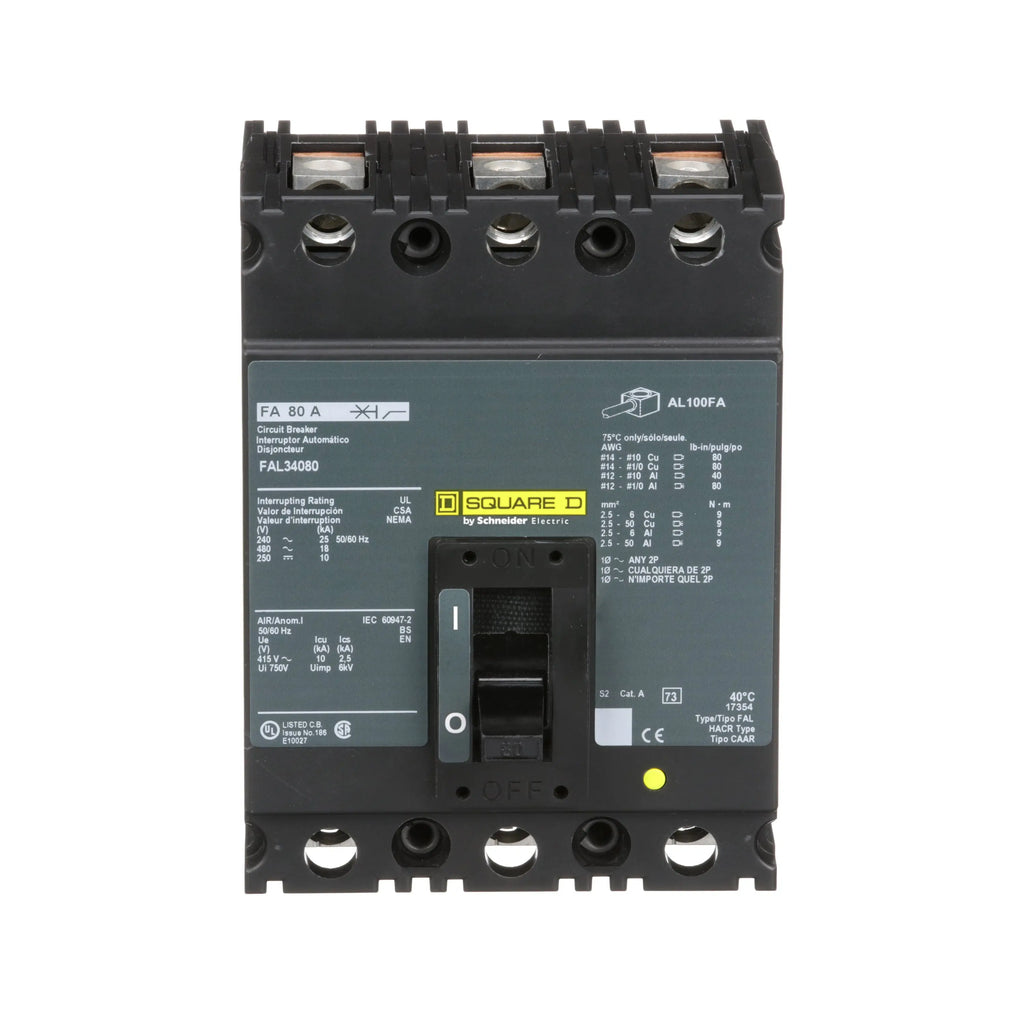

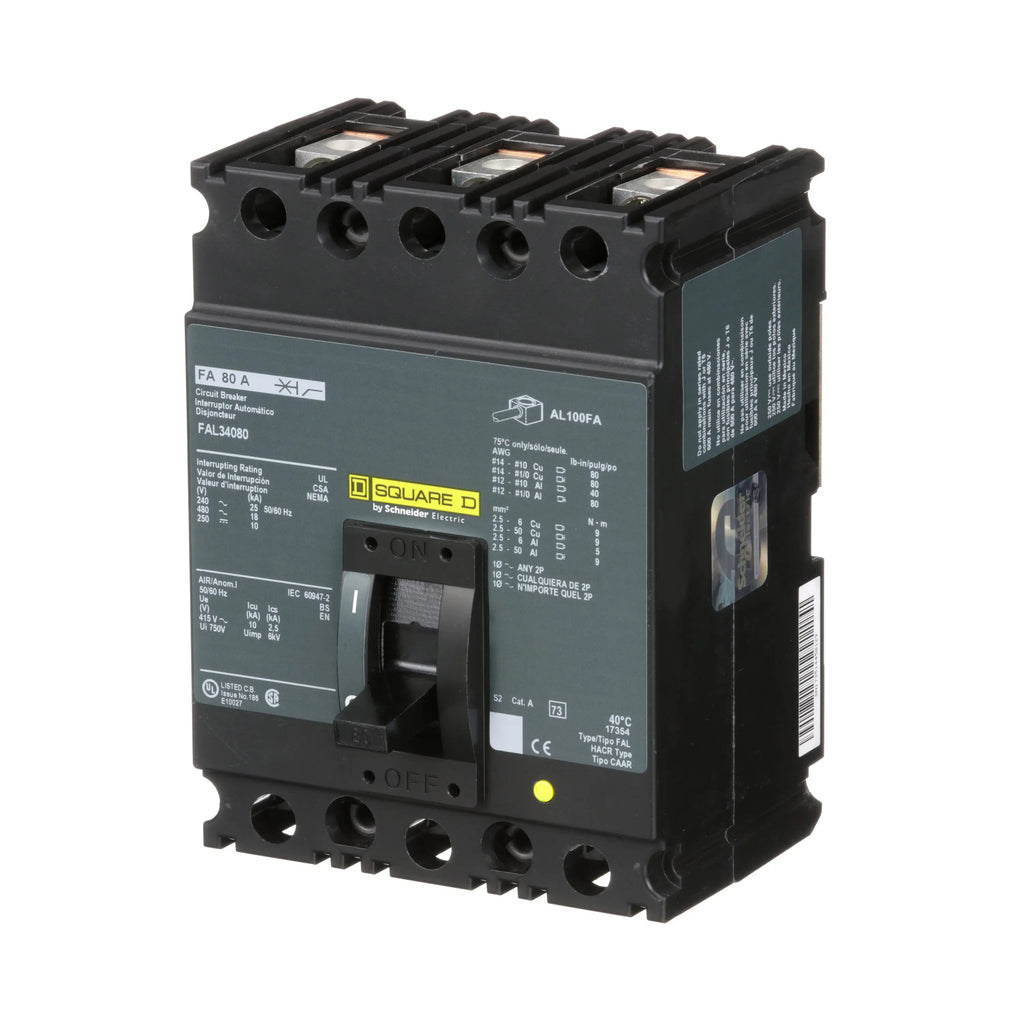

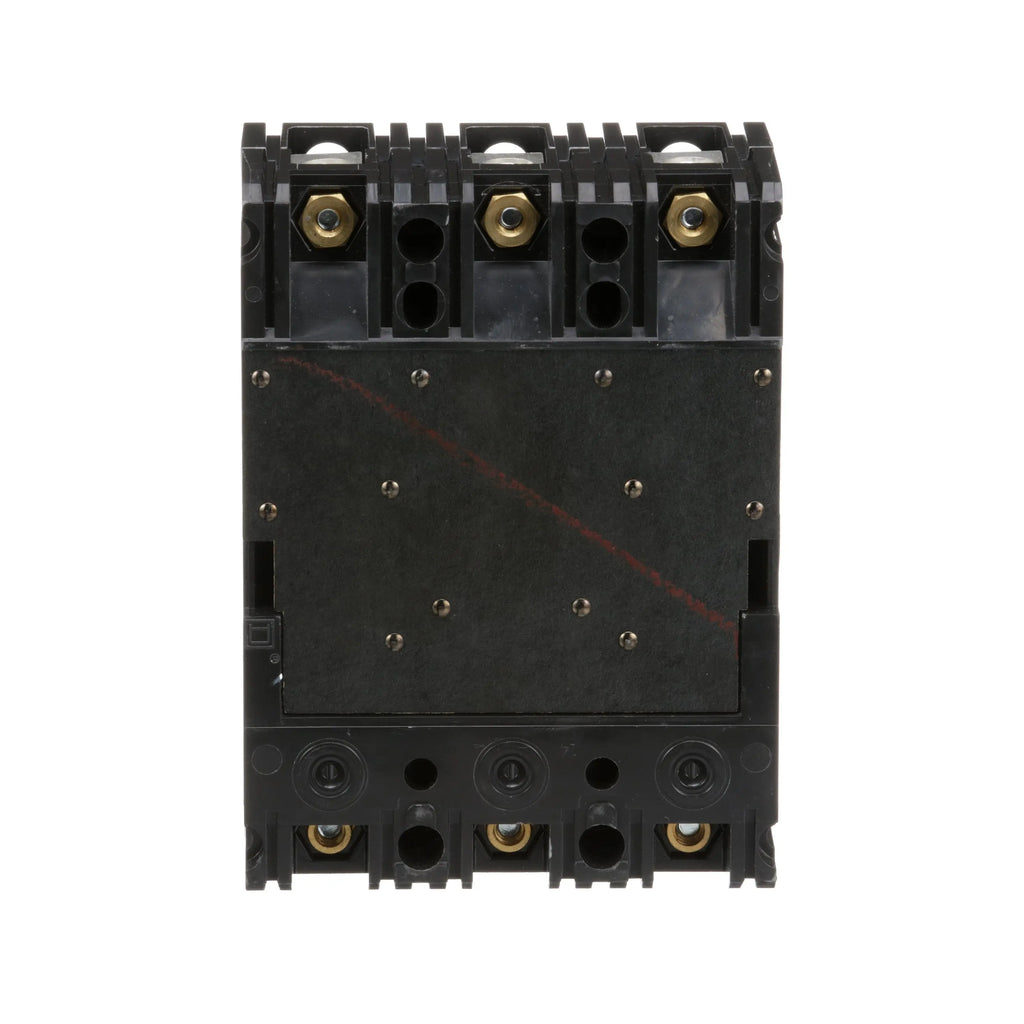

FAL34080 is a Square D 3 pole molded case circuit breaker with an 80 amp rating and 480 volt maximum voltage designed for reliable overload and short circuit protection.This FAL frame style breaker features a thermal magnetic non-interchangeable trip unit, bolt-on mounting, and line and load end terminals standard. It has an interrupting capacity of 25kA at 240VAC, 18kA at 480VAC, and 10kA at 250VDC. The breaker is UL, CSA, and CE listed for safety and compliance.
- Manufacturer: Square D
- Amperage: 80A at 40°C
- Voltage Rating: 480VAC, 250VDC
- Poles: 3
- Frame Type: FAL (F Frame)
- Mounting Type: Bolt-On
- Interrupting Capacity: 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC
- Trip Unit: Thermal Magnetic Non-Interchangeable
- Terminal Type: Line and Load End Standard
- Certifications: UL Listed, CSA Certified, CE Listed
Specifications
- Part Number: FAL34080
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 480
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901529712
- GTIN : 00785901529712
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 5.09
- Certification : UL, CSA
