Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL34070

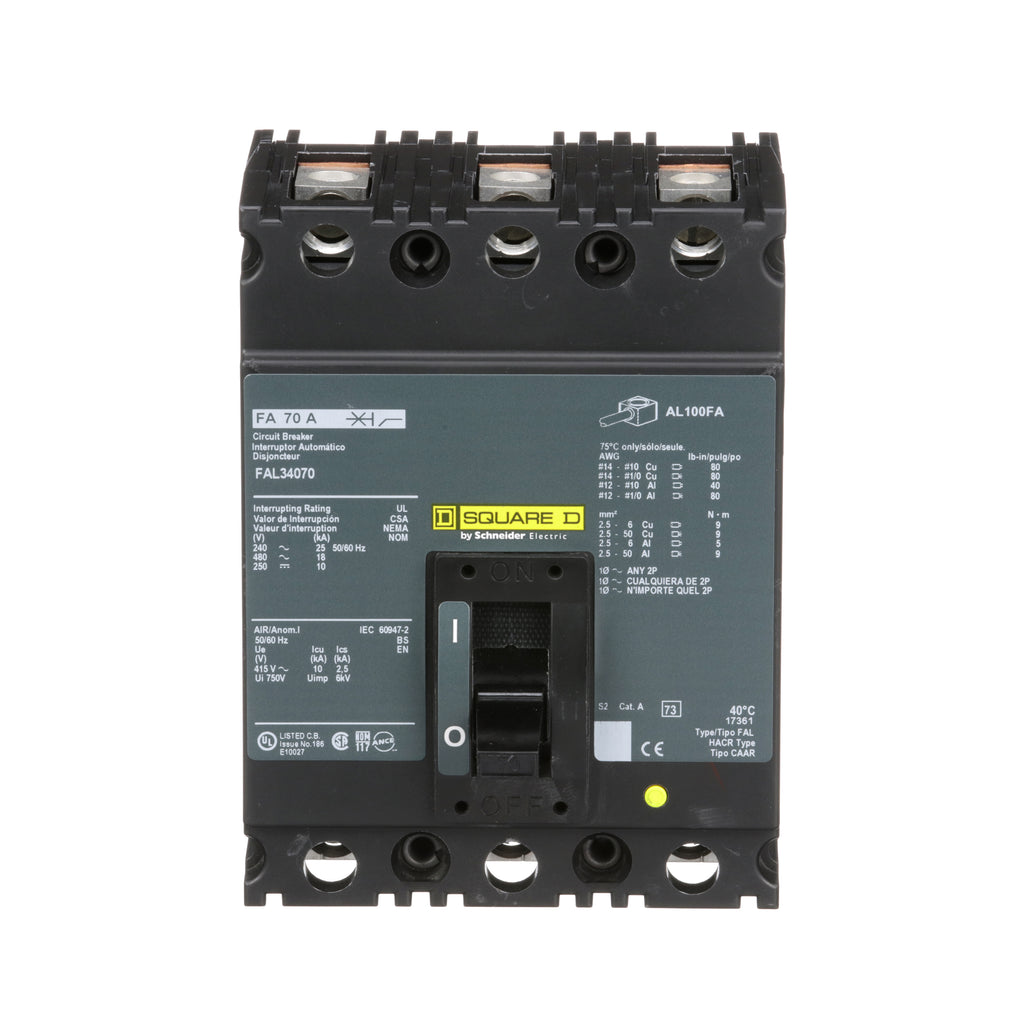

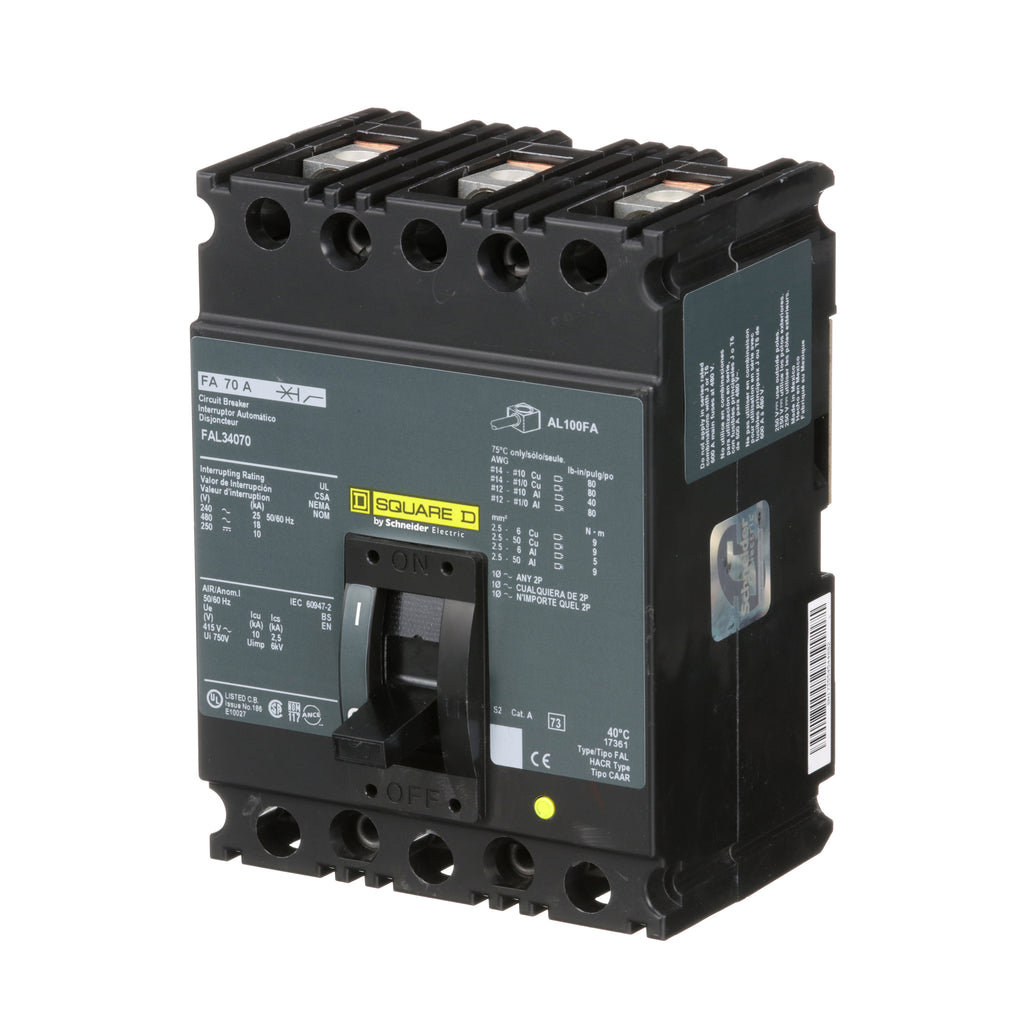

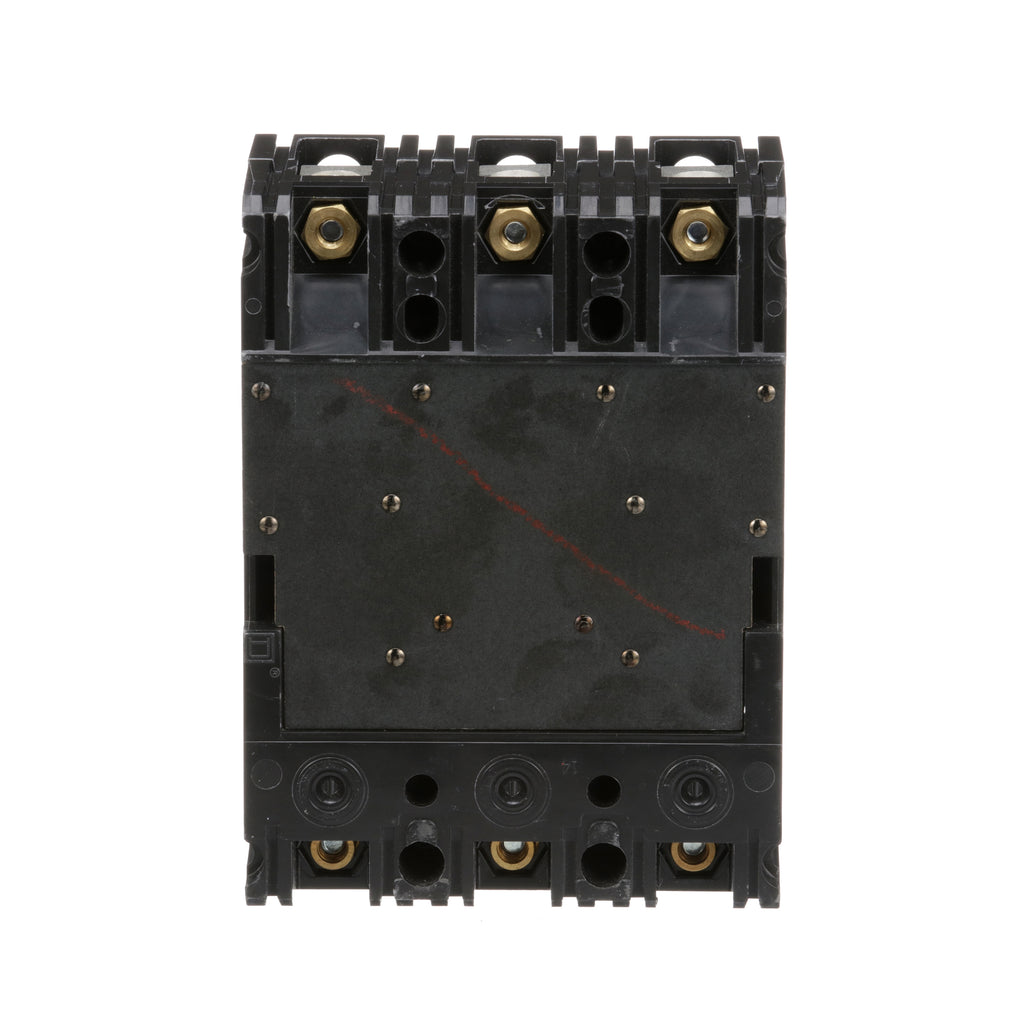

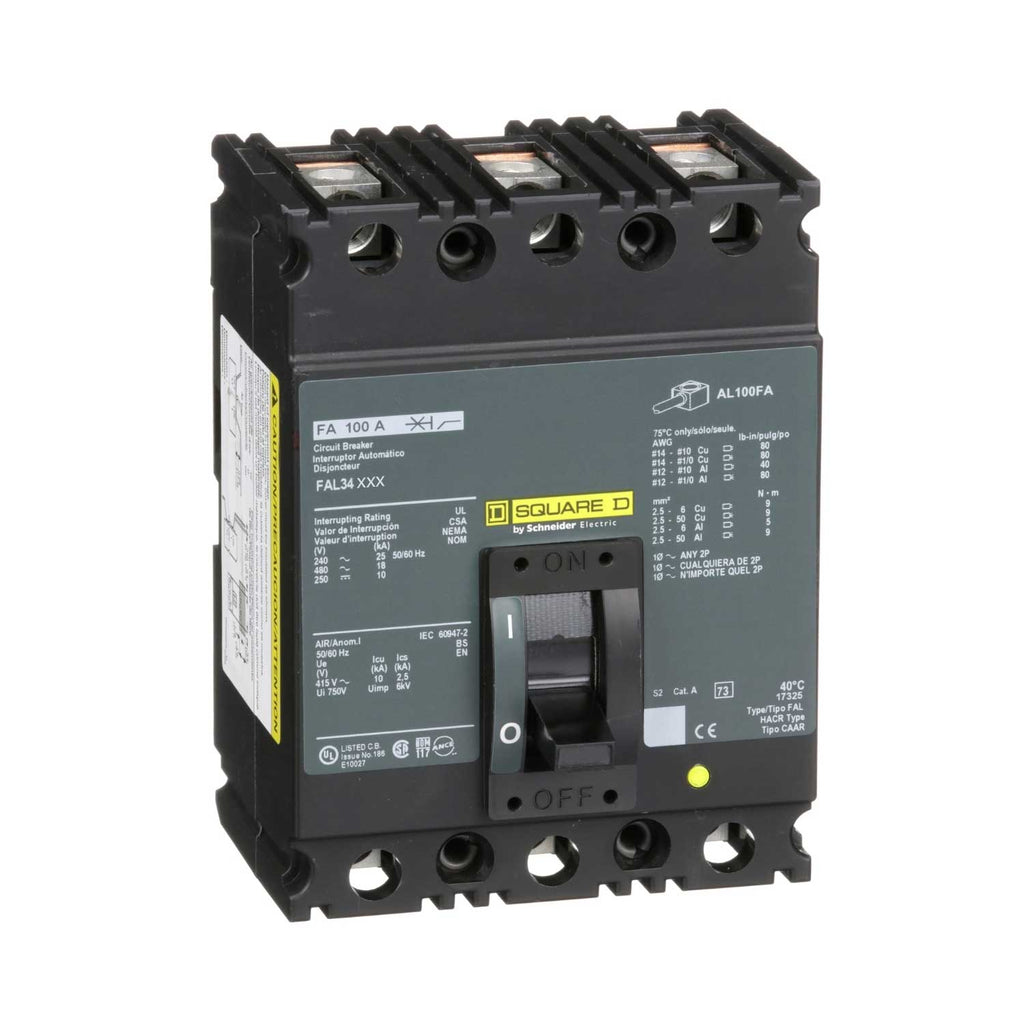

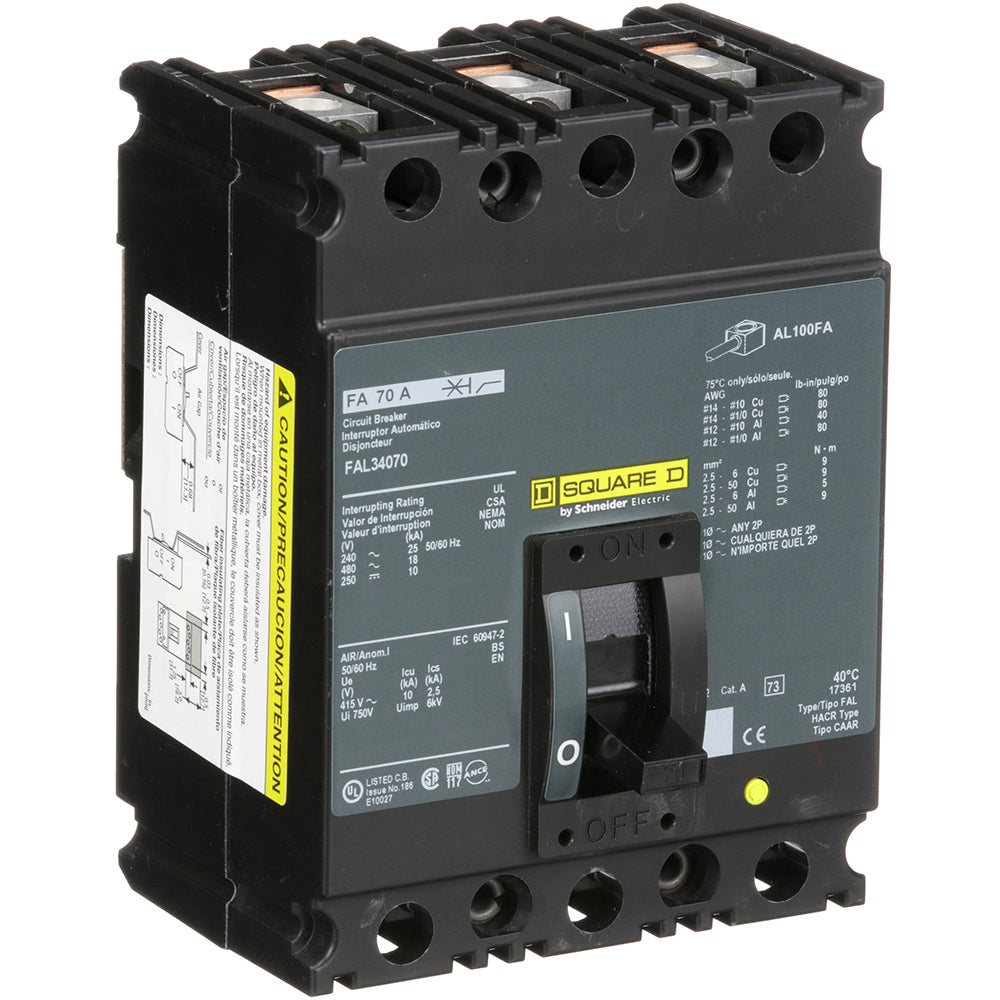

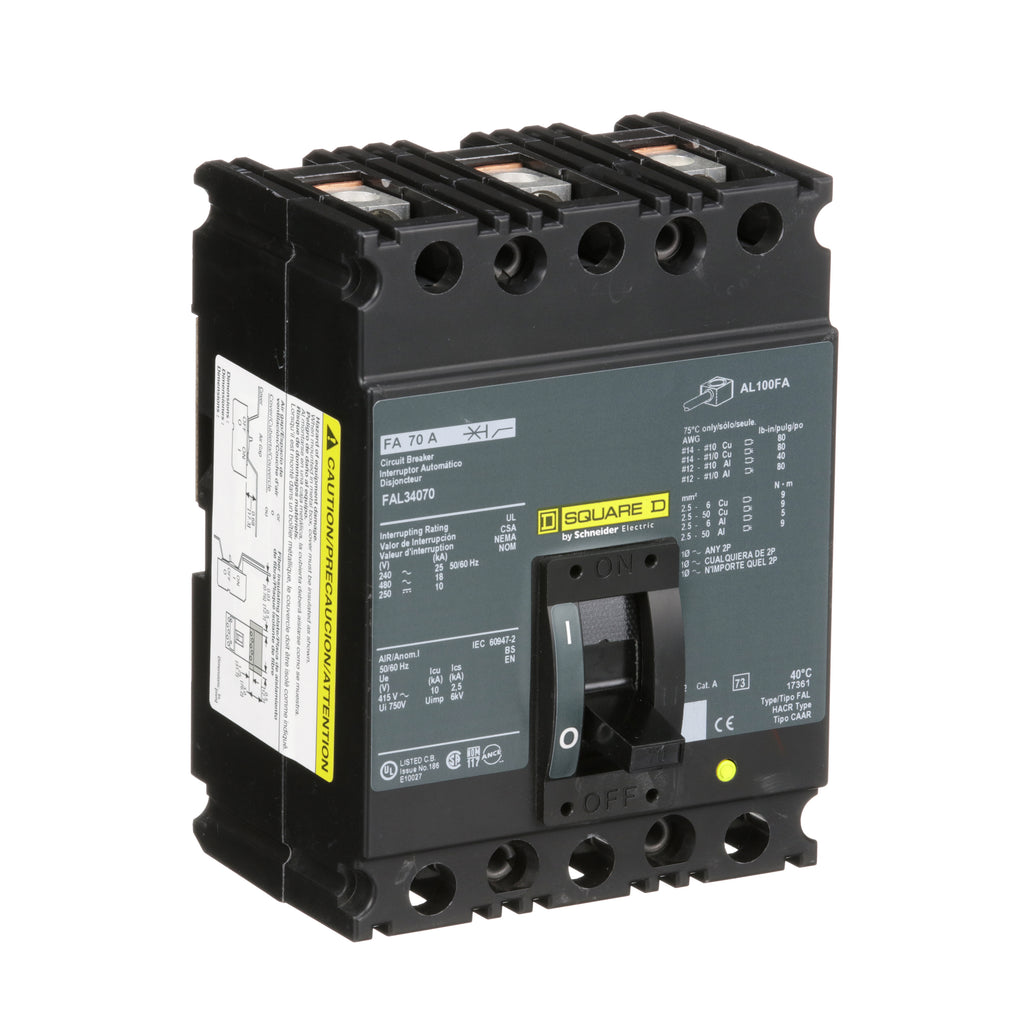

FAL34070 is a Square D molded case circuit breaker rated for 70 amps, 480 volts, and 3 poles designed for bolt-on mounting.
This FAL Series breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions, an interrupt rating of 18kA at 480V, and line and load side lug terminals. It provides reliable protection for electrical circuits with a 3-pole configuration and 70 amp capacity, suitable for industrial and commercial applications.
- Key Specifications
- Manufacturer: Square D
- Part Number: FAL34070
- Amperage: 70 Amps
- Voltage Rating: 480 Volts
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 18kA @ 480V
- Series/Frame: FAL
- Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
- Terminals: Line and Load Side Lug
- Certifications: Standard industry certifications (per manufacturer)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FAL34070
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 480
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901423409
- GTIN : 00785901423409
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 5.04
- Certification : UL, CSA
