FAL34040 - Square D 40A 480V 3 Pole Molded Case Circuit Breaker with 18kAIC Interrupt Rating

FAL34040

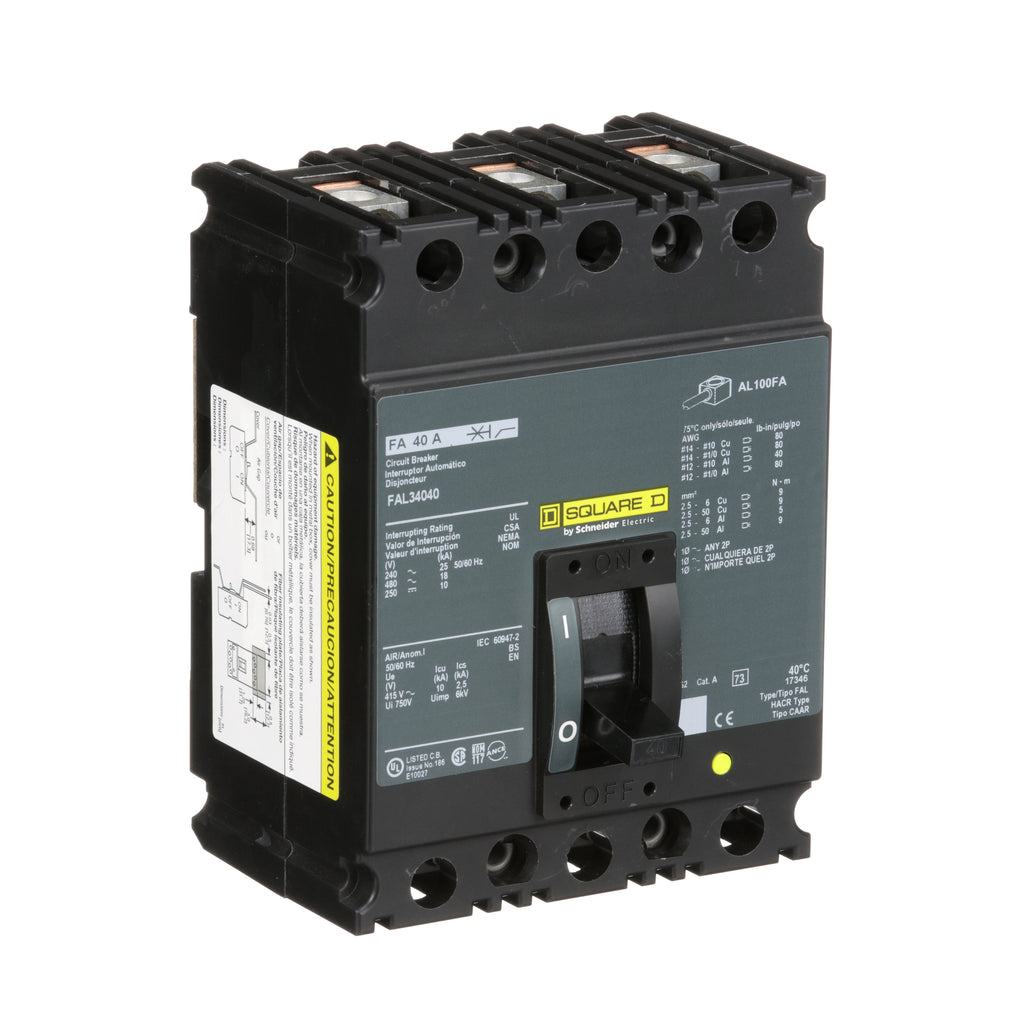

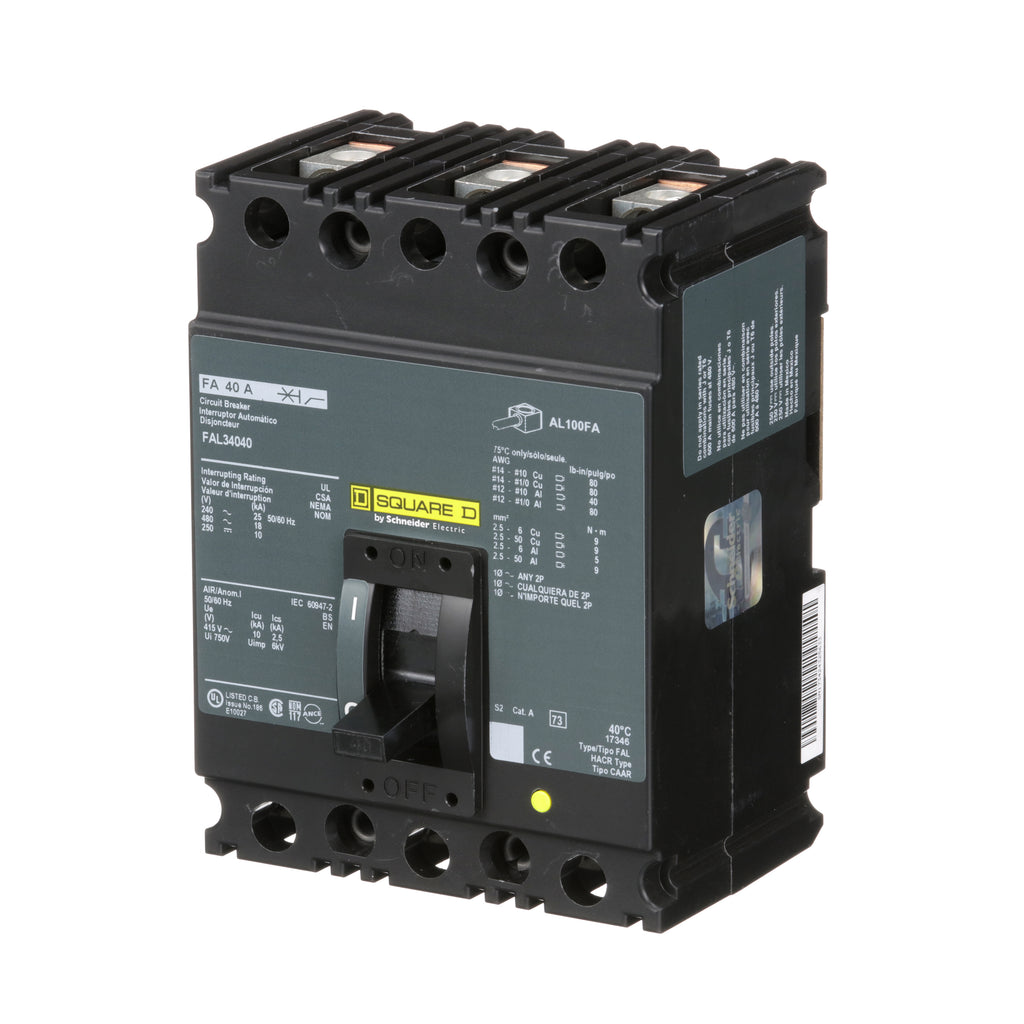

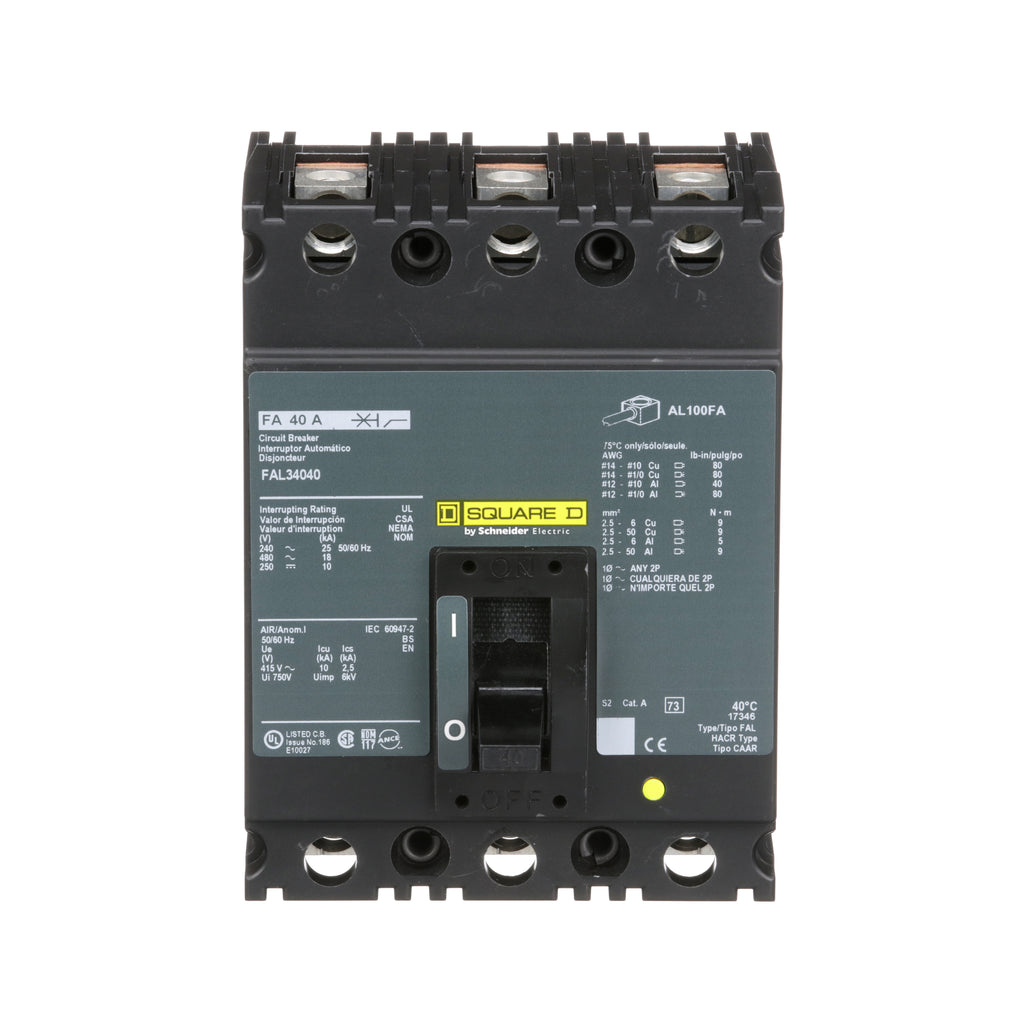

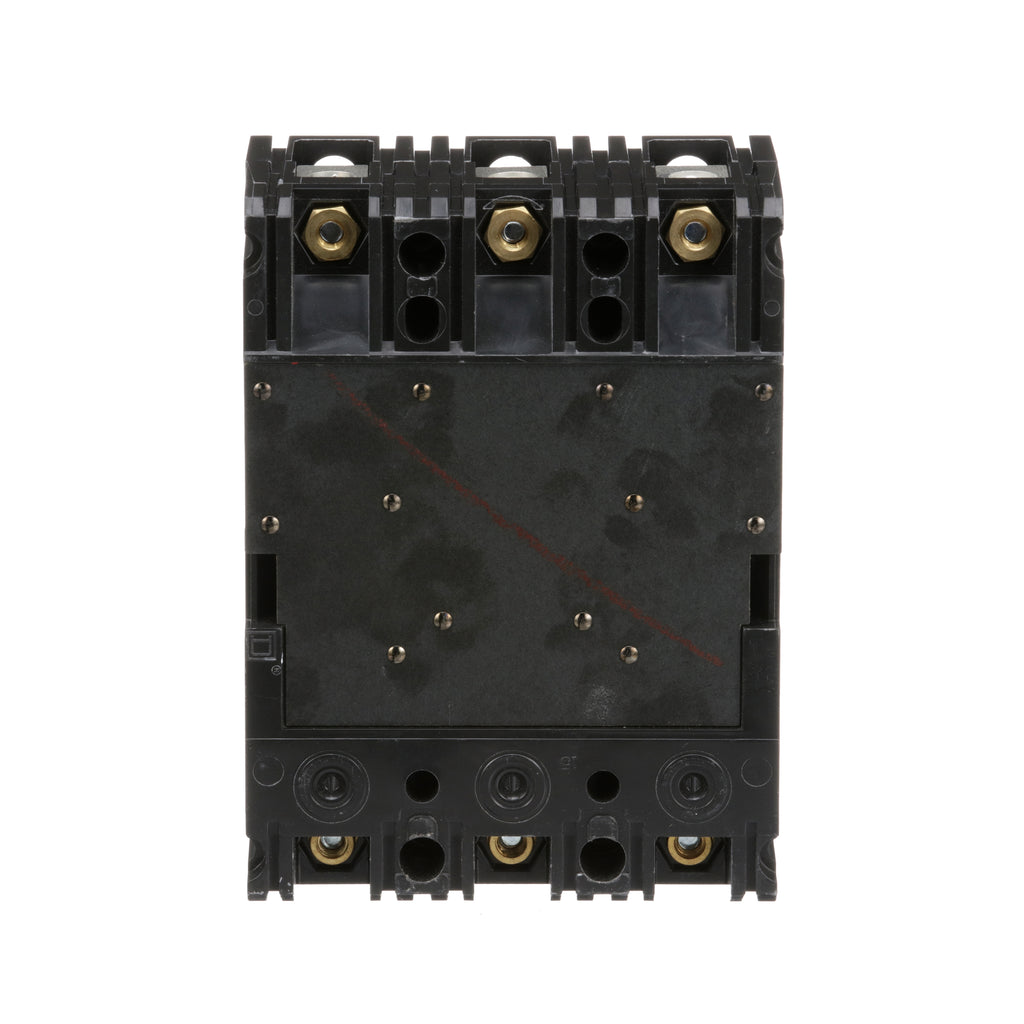

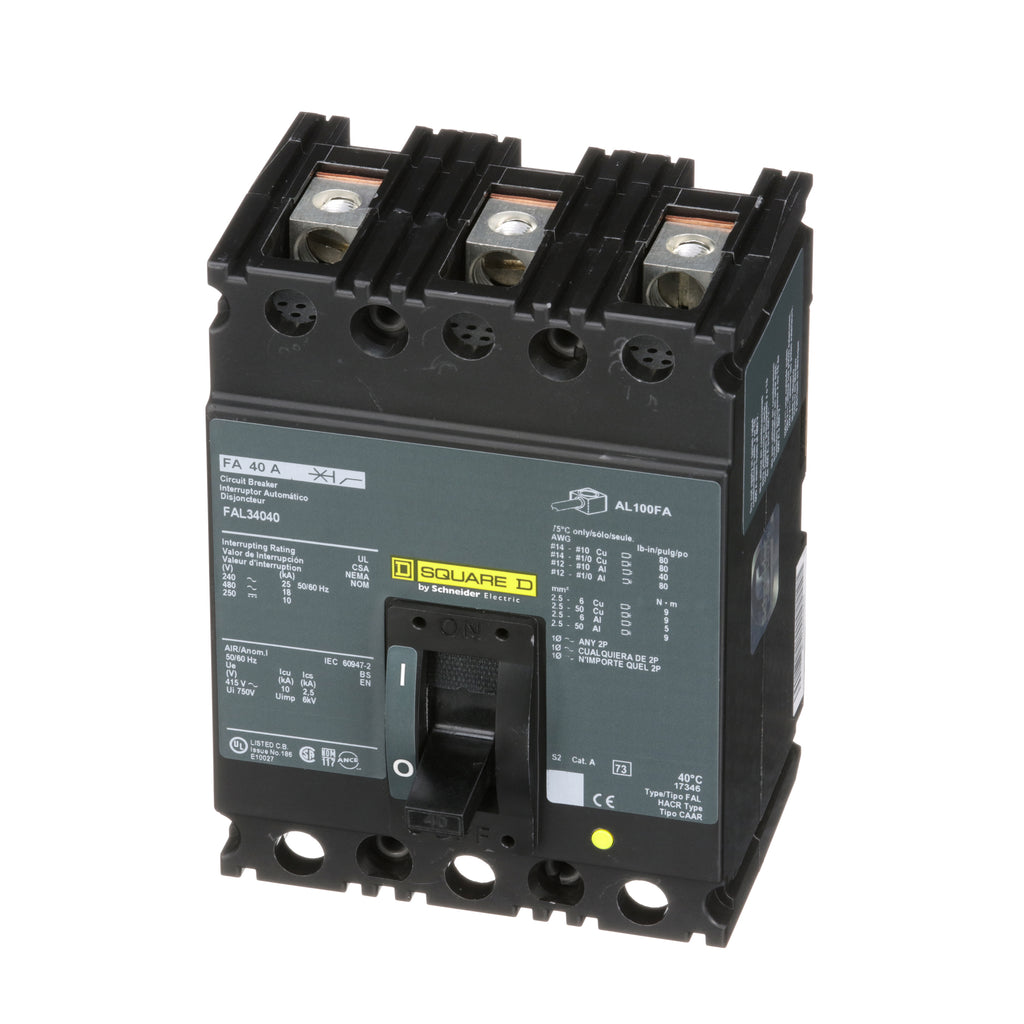

FAL34040 is a Square D 3 pole, 40 amp, 480 volt molded case circuit breaker designed for reliable thermal magnetic protection in commercial and industrial applications. This breaker features a feed-thru connection type, line and load side lugs, and includes long-time and instantaneous trip functions for enhanced safety and performance. It is UL listed and CSA certified, meeting HACR standards for use in heating, air conditioning, and refrigeration circuits. The FAL34040 is part of the Square D FAL series, offering a robust frame and bolt-on mounting for secure installation. With an interrupting rating of 18kAIC at 480V, this breaker is suitable for demanding electrical environments.

• Part Number: FAL34040
• Manufacturer: Square D
• Series/Frame: FAL
• Amperage: 40A
• Voltage: 480VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18kAIC at 480V
• Protection Type: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous Trip
• Terminal Connection: Line and Load Side Lug
• Certifications: UL, CSA, HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL34040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901423324
• GTIN : 00785901423324
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5
• Certification : UL, CSA
