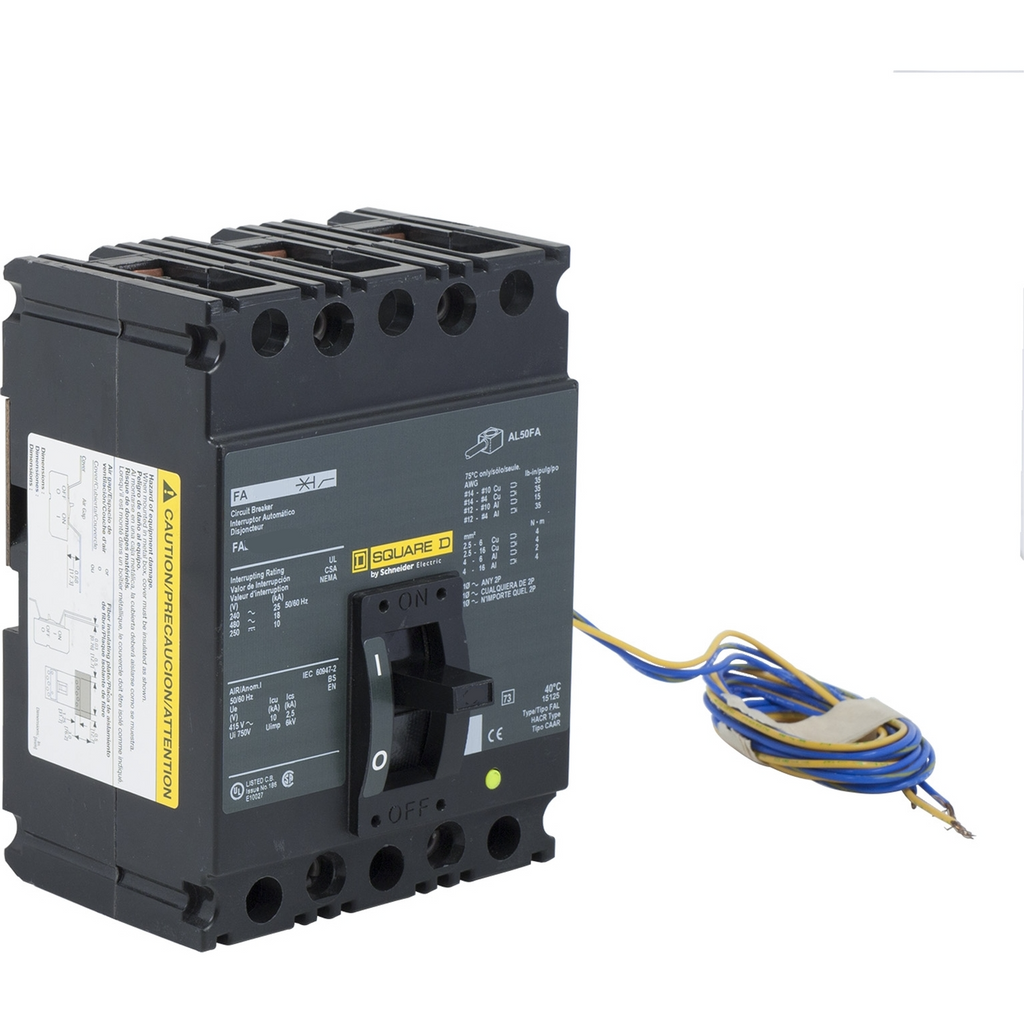

FAL340301380 - Square D 30A 3P 480V Circuit Breaker w/ Aux Switch & Shunt Trip

FAL340301380

FAL340301380 is a Square D molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This unit features a 30A trip rating, 3 poles, and is rated for 480V AC systems. It includes factory-installed auxiliary switch and shunt trip for enhanced control and remote operation capabilities. The FAL340301380 is part of the Square D FAL Series, built on a 100A frame with thermal-magnetic trip technology. It is designed for unit mount installation and offers a standard interrupting capacity of 18kA at 480V. The breaker is suitable for feed-thru applications and provides long-time and instantaneous trip protection.

• Part Number: FAL340301380
• Manufacturer: Square D
• Series: FAL
• Frame: 100A
• Rated Current: 30A
• Number of Poles: 3
• Voltage Rating: 480V AC
• Interrupting Capacity: 18kA @ 480V
• Mounting Type: Unit mount
• Trip Unit: Thermal-magnetic
• Features: Aux switch, shunt trip
• Protection Type: Feed-thru, LI (Long-Time and Instantaneous)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120/240Vac shunt trip and 1A/1B aux switch

Specifications

• Part Number: FAL340301380
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• GTIN : 00785901297987
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 5
