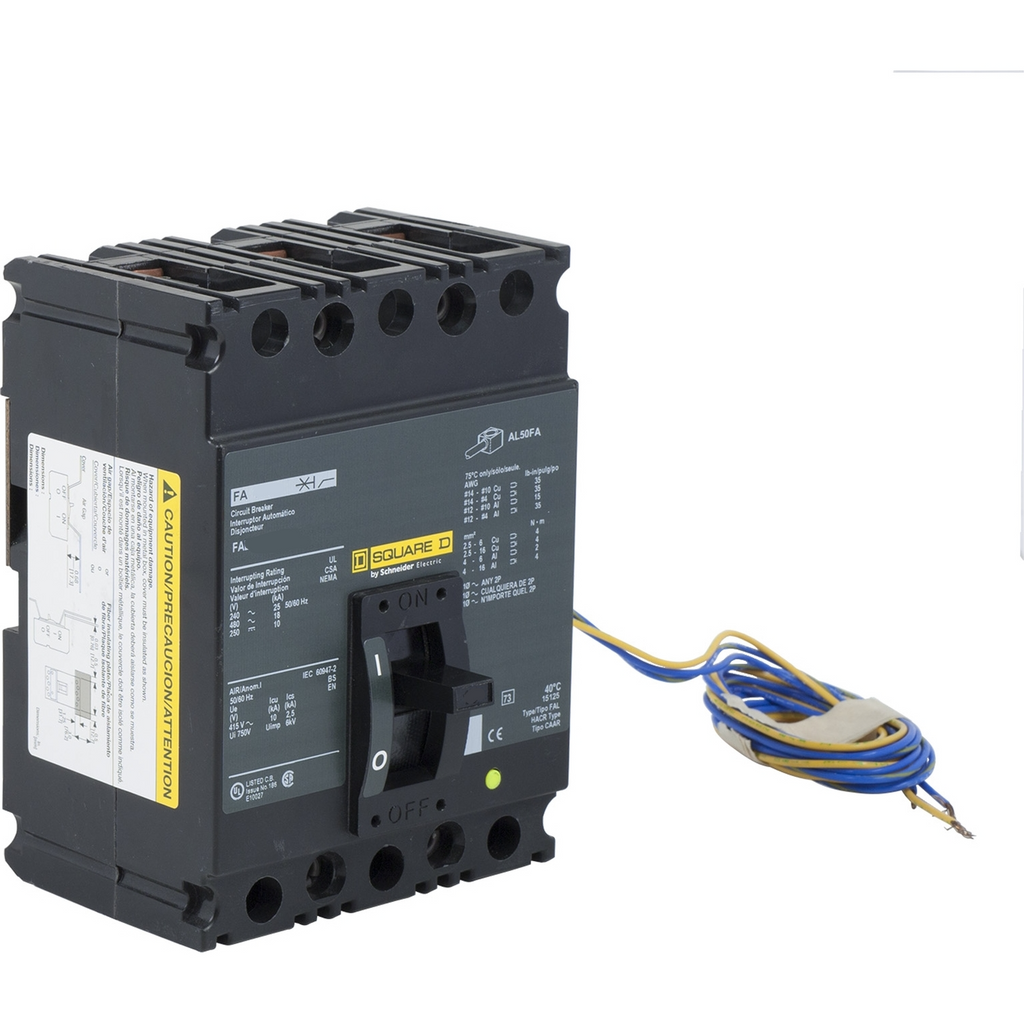

FAL340251127 - Square D 480V 25A 3 Pole Molded Case Circuit Breaker 18kA

FAL340251127

FAL340251127 is a Square D molded case circuit breaker designed for three-phase power distribution applications. This thermal-magnetic circuit breaker delivers reliable overcurrent protection in industrial and commercial electrical systems with a compact, space-efficient design.Technical Overview: The FAL340251127 is part of Square D's FAL Series F-Frame family, engineered to provide dependable circuit protection. As a three-pole breaker rated for 480 volts AC and 250 volts DC, it accommodates standard industrial voltage requirements. The 25 ampere rating makes it suitable for moderate to heavy-duty branch circuit protection. With an 18 kiloampere interrupting rating at 480 volts, this breaker safely interrupts fault currents while maintaining system integrity. The thermal-magnetic trip mechanism responds to both overload and short-circuit conditions, providing dual-level protection. Lugged terminals on both line and load sides enable secure, code-compliant connections to distribution equipment and downstream circuits.Key Specifications

• Part Number: FAL340251127
• Manufacturer: Square D by Schneider Electric
• Frame Size: F-Frame (100 Ampere)
• Poles: 3
• Amperage Rating: 25 Amps
• Voltage Rating: 480 VAC / 250 VDC
• Interrupting Rating: 18 kA at 480 VAC
• Trip Type: Thermal-Magnetic
• Terminal Type: Lugs (Line and Load Side)
• Certifications: UL Listed, CSA Certified, IEC Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL340251127
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 5
