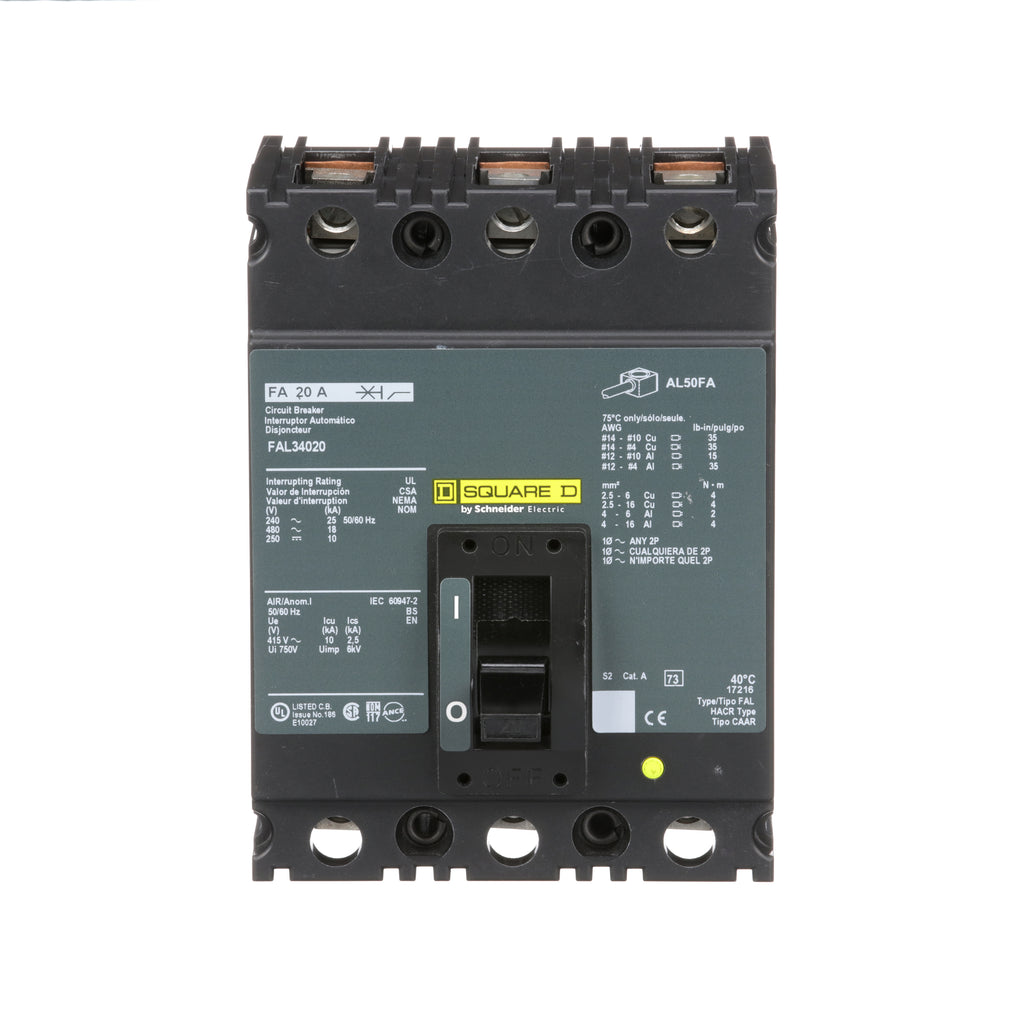

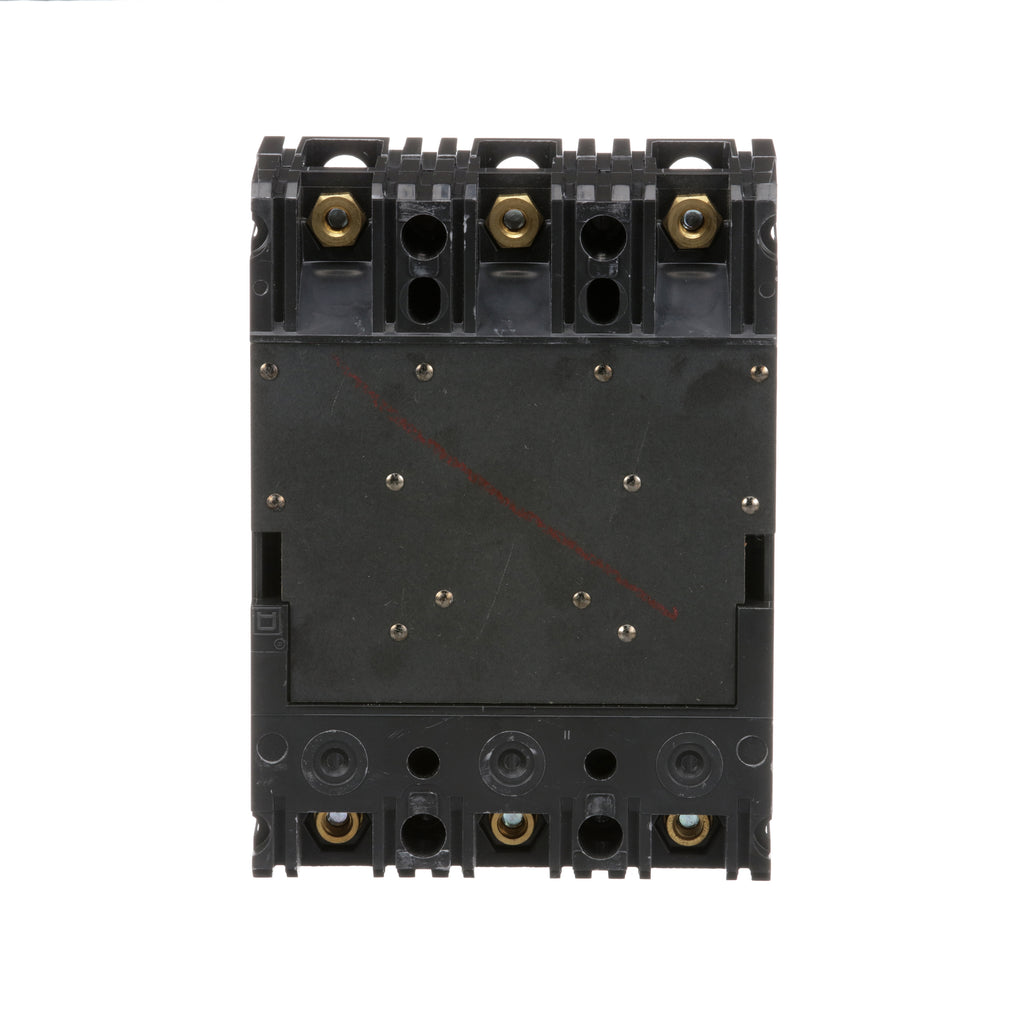

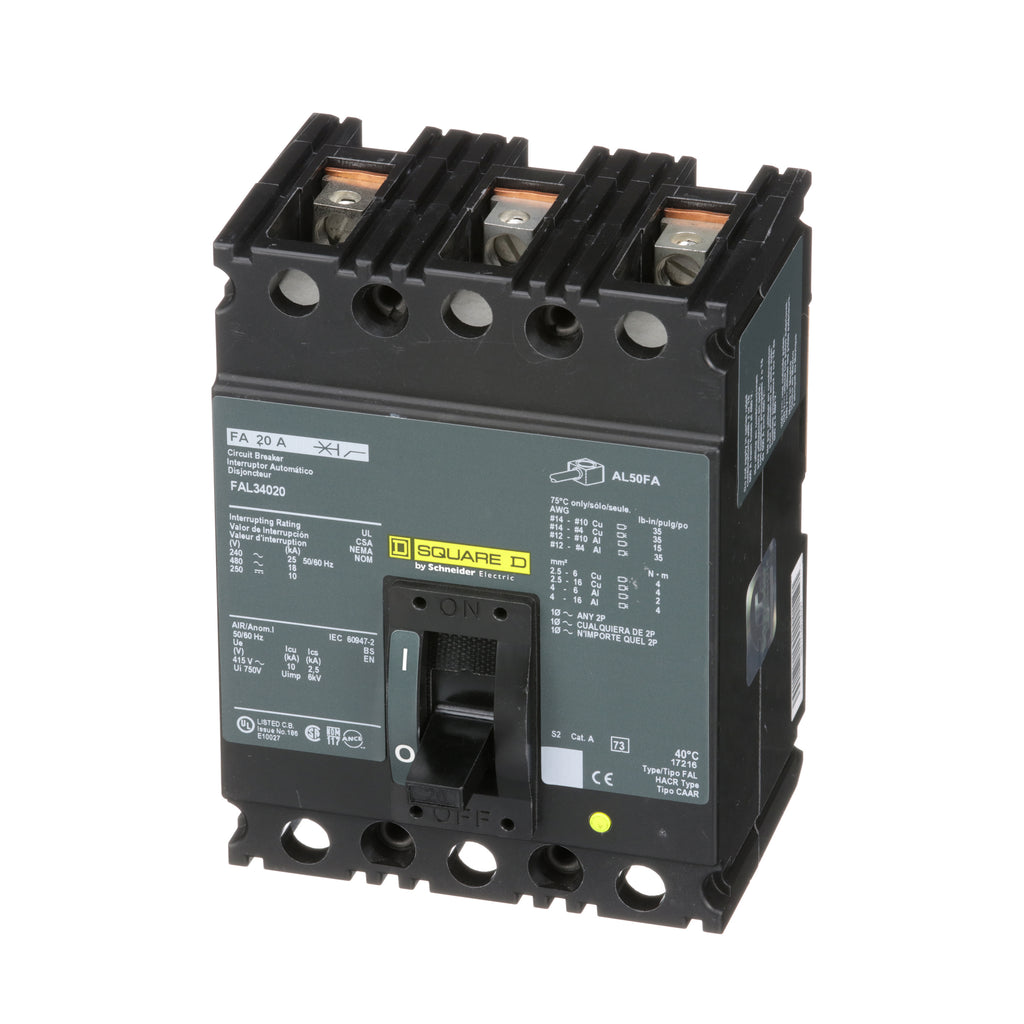

FAL34020 - Square D 20A 480V 3-Pole Molded Case Circuit Breaker FAL Frame Bolt-On Mount

FAL34020

FAL34020 is a Square D 3-pole molded case circuit breaker rated for 20 amps and 480 volts designed for bolt-on mounting.This Square D FAL series circuit breaker provides reliable thermal magnetic protection against overloads and short circuits. It features a 3-pole configuration with a 20 ampere rating, suitable for 480 VAC and 250 VDC applications. The breaker has an interrupt rating of 18 kA at 480 VAC and 25 kA at 240 VAC, ensuring high fault current interruption capability. It is UL, CSA, and CE certified and designed for use in class 650/651 I-Line panelboards and switchboards. The breaker uses a non-interchangeable trip unit and supports copper or aluminum wiring.

Key Specifications
• Manufacturer: Square D
• Part Number: FAL34020
• Frame Type: FAL
• Amperage: 20A
• Voltage Rating: 480 VAC / 250 VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18 kA at 480 VAC, 25 kA at 240 VAC, 10 kA at 250 VDC
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Certifications: UL Listed, CSA Certified, CE Listed
• Wire Type: Copper/Aluminum
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FAL34020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 480
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 785901423249
• GTIN : 00785901423249
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.881
• Certification : UL, CSA
