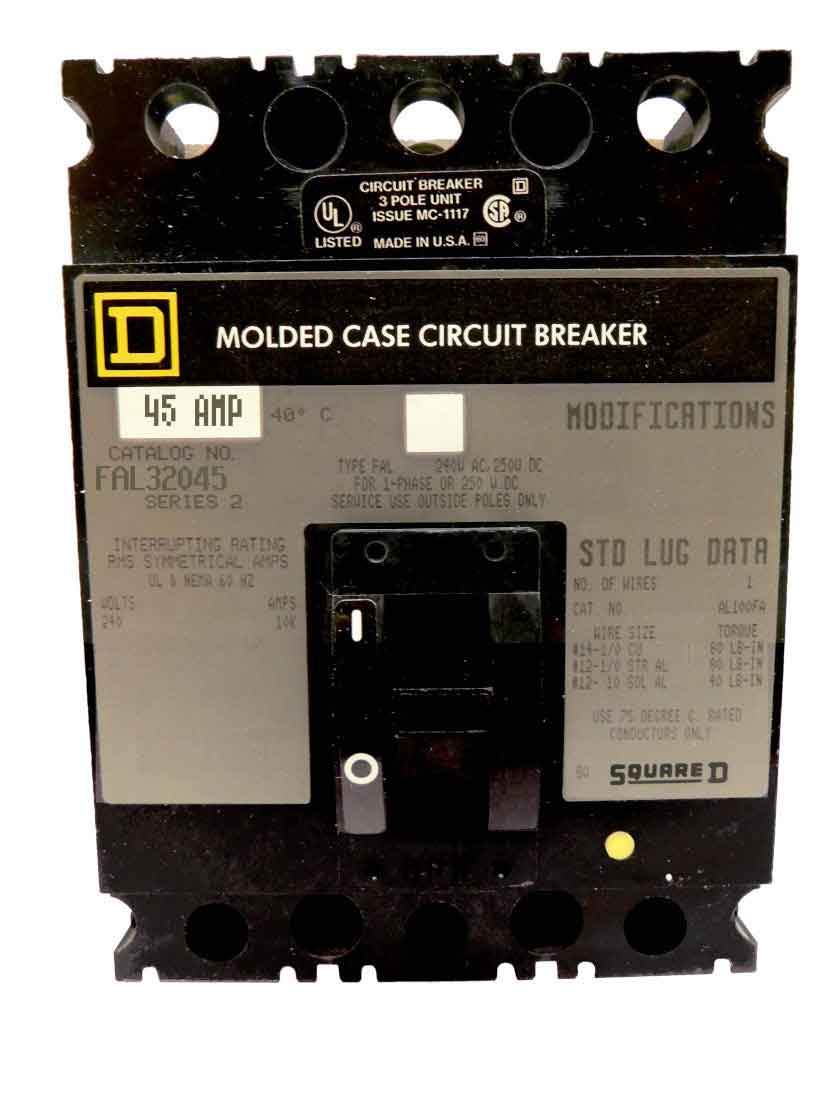

FAL32045 - Square D 45 Amp 240V 3 Pole Thermal Magnetic Molded Case Circuit Breaker Feed-Thru 10kAIC FAL Series

FAL32045

FAL32045 is a 3 pole, 45 amp, 240 volt thermal magnetic molded case circuit breaker from Square D's FAL series designed for reliable circuit protection.This breaker features a feed-thru connection type with line and load side lug terminals, a 10kA interrupting rating at 240VAC, and includes long time and instantaneous trip functions for enhanced protection. It is designed for unit mounting and operates on thermal magnetic principles, suitable for 3-phase applications.

• Manufacturer: Square D
• Series/Frame: FAL
• Amperage: 45 Amps
• Voltage: 240 Volts AC
• Poles: 3
• Interrupting Rating: 10kAIC at 240VAC
• Mounting Type: Unit Mount
• Connection Type: Feed-Thru
• Trip Unit: Long Time and Instantaneous
• Terminal Connection: Line and Load Side Lug
• Protection Type: Thermal Magnetic
• Phase: 3

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL32045
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 240
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901529668
• GTIN : 00785901529668
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.621
• Certification : CSA-UL LISTED
