Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
FAL32040G

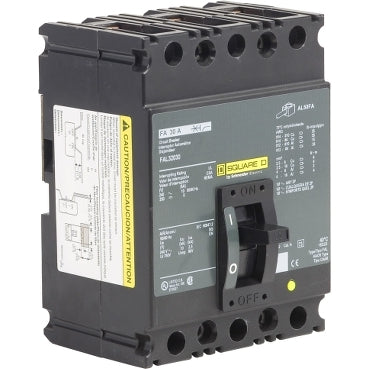

FAL32040G is a molded case circuit breaker from Square D by Schneider Electric designed for industrial and commercial power distribution applications. This thermal-magnetic type breaker provides reliable overcurrent protection with a compact F-frame design suitable for panel mounting or line and load applications.Technical Details: The FAL32040G features a 40-ampere rating at 240VAC with 3-pole configuration for three-phase systems. It delivers a standard interrupting capacity of 10kA at 240VAC and 5kA at 250VDC, making it suitable for general-purpose distribution circuits. The breaker utilizes lug-to-lug terminal connections and operates at 50/60 Hz. UL listed, CSA certified, and IEC rated for permanent trip operation, this unit meets industry standards for safety and performance.
- Amperage Rating: 40A
- Voltage: 240VAC, 250VDC
- Poles: 3-Pole (3P)
- Frame Size: F-Frame (100A)
- Trip Type: Thermal-Magnetic
- Interrupting Capacity: 10kA @ 240VAC, 5kA @ 250VDC
- Terminal Type: Lug to Lug
- Mounting: Unit Mount
- Frequency: 50/60 Hz
- Certifications: UL Listed, CSA Certified, IEC Rated
Additional Information
complete with ground fault shunt trip wiring protection
Specifications
- Part Number: FAL32040G
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 240
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 12
