Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FAL32030G

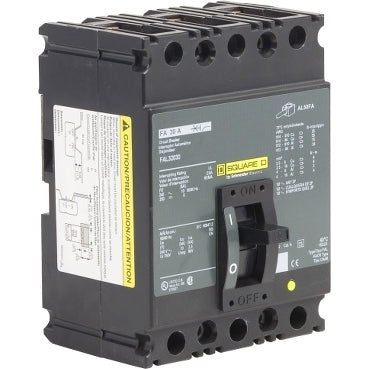

FAL32030G is a 30A, 3 pole, 240V molded case circuit breaker from Square D, designed for reliable thermal magnetic protection in commercial and industrial applications. This Square D FAL32030G circuit breaker features a FAL frame, thermal magnetic trip unit, and is rated for 240VAC with a 10kA interrupting rating at 240V. It includes line and load side lug terminals for flexible installation and is HACR rated for use in HVAC, refrigeration, and other demanding environments. The breaker is UL listed and CSA certified for safety and compliance.
- 30A current rating
- 3 pole configuration
- 240VAC maximum voltage
- Thermal magnetic trip unit
- FAL frame style
- 10kA interrupting rating at 240V
- Line and load side lug terminals
- HACR rated
- UL listed
- CSA certified
- Mounting: Panel mount
- Ambient compensated
Additional Information
complete with ground fault shunt trip wiring protection
Specifications
- Part Number: FAL32030G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : FAL Series
- Type : FAL
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 785901513147
- Country of Origin : Mexico
- Weight : 12
