FAL32025 - Square D 25 Amp 240V 3 Pole Molded Case Circuit Breaker F Frame Thermal Magnetic

FAL32025

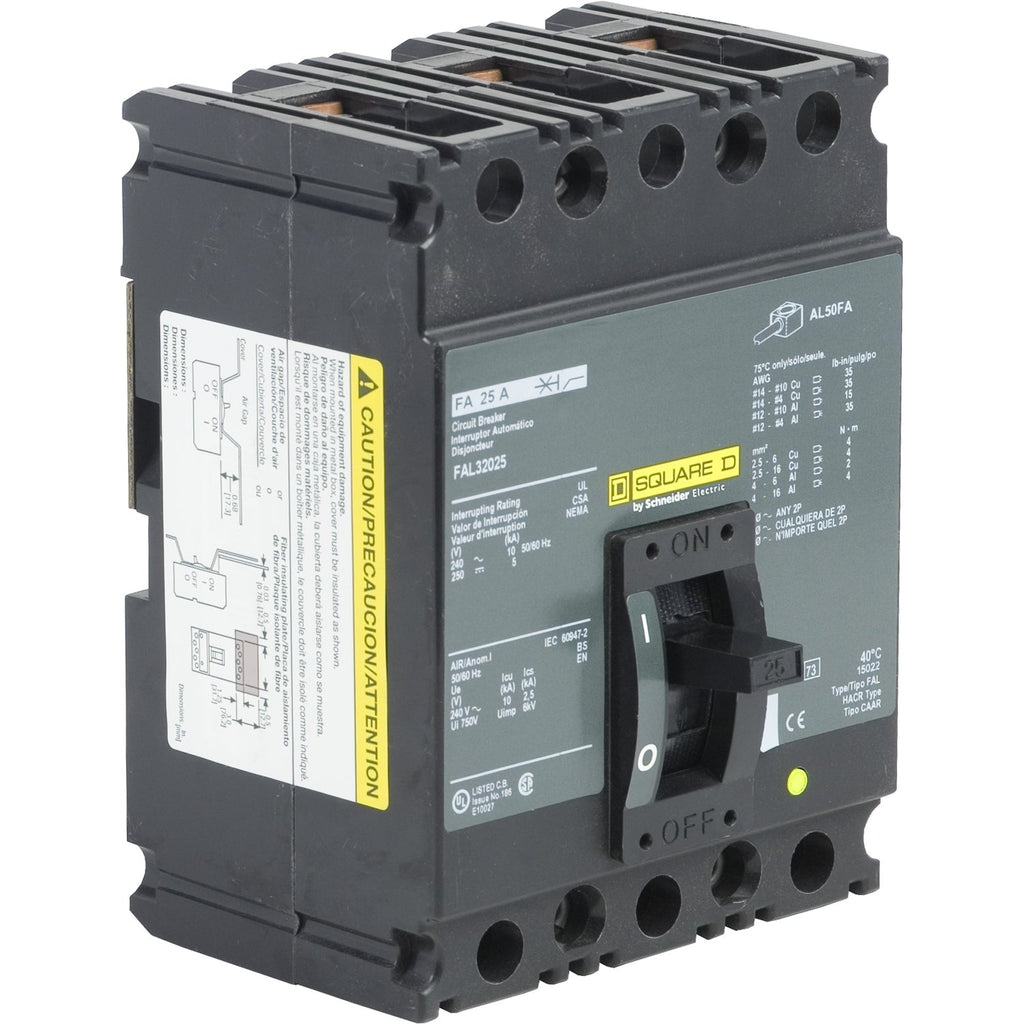

FAL32025 is a 25 Amp, 240 Volt, 3 Pole molded case circuit breaker from Square D designed for reliable circuit protection.This thermal magnetic circuit breaker features a 3-pole configuration with a 10kA interrupting rating at 240 VAC. It has a bolt-on mounting style with line and load lug terminals and belongs to the F frame type, model FA. The breaker is UL and CSA certified, suitable for HACR rated applications, and measures approximately 4.5 inches wide by 4.13 inches deep by 6 inches high.

• Manufacturer: Square D
• Part Number: FAL32025
• Amperage: 25 A
• Voltage: 240 V AC
• Poles: 3
• Frame Type: FAL (F Frame)
• Interrupt Rating: 10 kA at 240 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-on
• Terminal Type: Line and Load Lugs
• Certifications: UL Listed, CSA Approved
• Dimensions: 4.5" W x 4.13" D x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL32025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 240
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901529644
• GTIN : 00785901529644
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4.83
• Certification : UL LISTED-CSA
