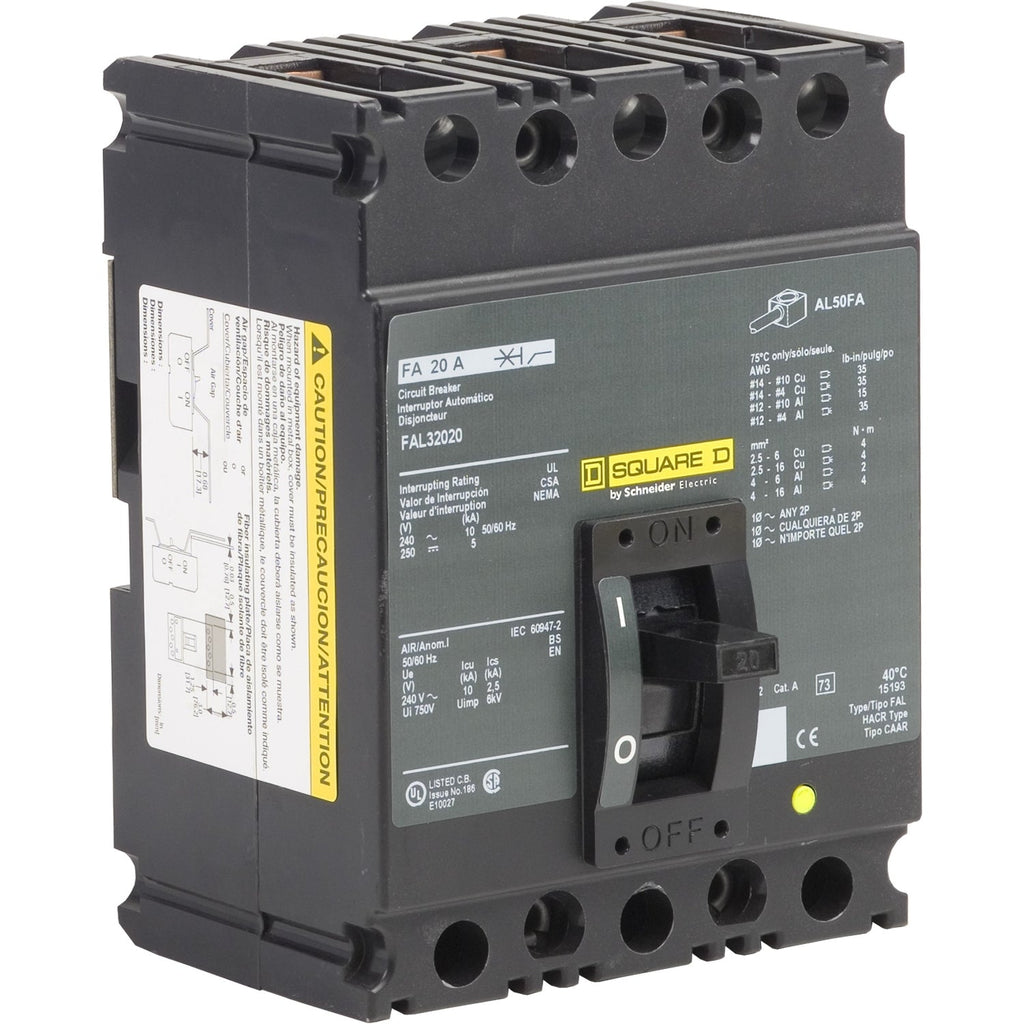

FAL32020 - Square D 20 Amp 3 Pole 240V Thermal Magnetic Molded Case Circuit Breaker

FAL32020

FAL32020 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 20 amps and 240 volts AC.FAL32020 provides reliable circuit protection with a 10kA interrupting rating at 240V and features long-time and instantaneous trip functions. It is designed for unit mounting with feed-thru connection type and line/load side lug terminals. This breaker meets UL, CSA, and HACR standards, making it suitable for commercial and industrial applications.

Key Specifications
• Manufacturer: Square D
• Part Number: FAL32020
• Amperage: 20 Amps
• Voltage: 240 VAC
• Poles: 3
• Interrupt Rating: 10kAIC at 240V
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions
• Connection Type: Feed-Thru
• Terminal Connection: Line and Load Side Lug
• Certifications: UL, CSA, HACR
• Frame Type: FAL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL32020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 240
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901422969
• GTIN : 00785901422969
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 4
• Certification : UL LISTED
