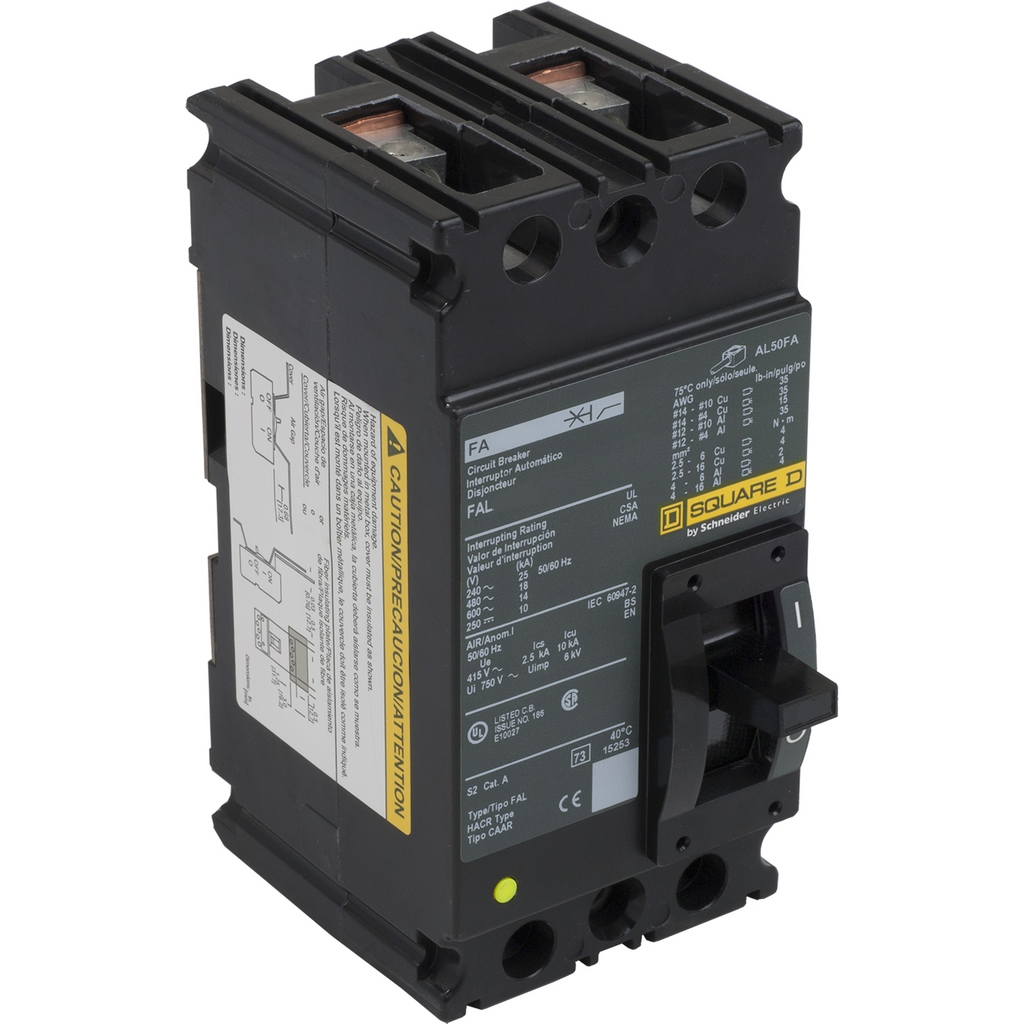

FAL22070 - Square D 70A 240V 2 Pole Molded Case Circuit Breaker F Frame

FAL22070

FAL22070 is a Square D 2 pole molded case circuit breaker rated for 70 amps and 240 volts, designed for reliable circuit protection.This circuit breaker features a thermal-magnetic trip unit and is part of the FAL series with an F frame. It supports unit mount installation and is HACR rated for HVAC applications. The breaker has a breaking capacity of 10kA at 240VAC, magnetic hold current of 800A, and magnetic tripping current of 1450A. It uses lug connections for line and load and is manufactured in the US.

Key Specifications
• Amperage: 70A
• Voltage: 240V AC
• Number of Poles: 2
• Frame Type: FAL (F Frame)
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 10kA at 240VAC
• Mounting Type: Unit Mount
• Magnetic Hold Current: 800A
• Magnetic Trip Current: 1450A
• Connection Type: Lug (Line and Load)
• HACR Rated: Yes
• Country of Origin: US

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FAL22070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : FAL Series
• Type : FAL
• Voltage : 240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901254669
• GTIN : 00785901254669
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 3
• Certification : CSA-UL LISTED
