Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FA36050

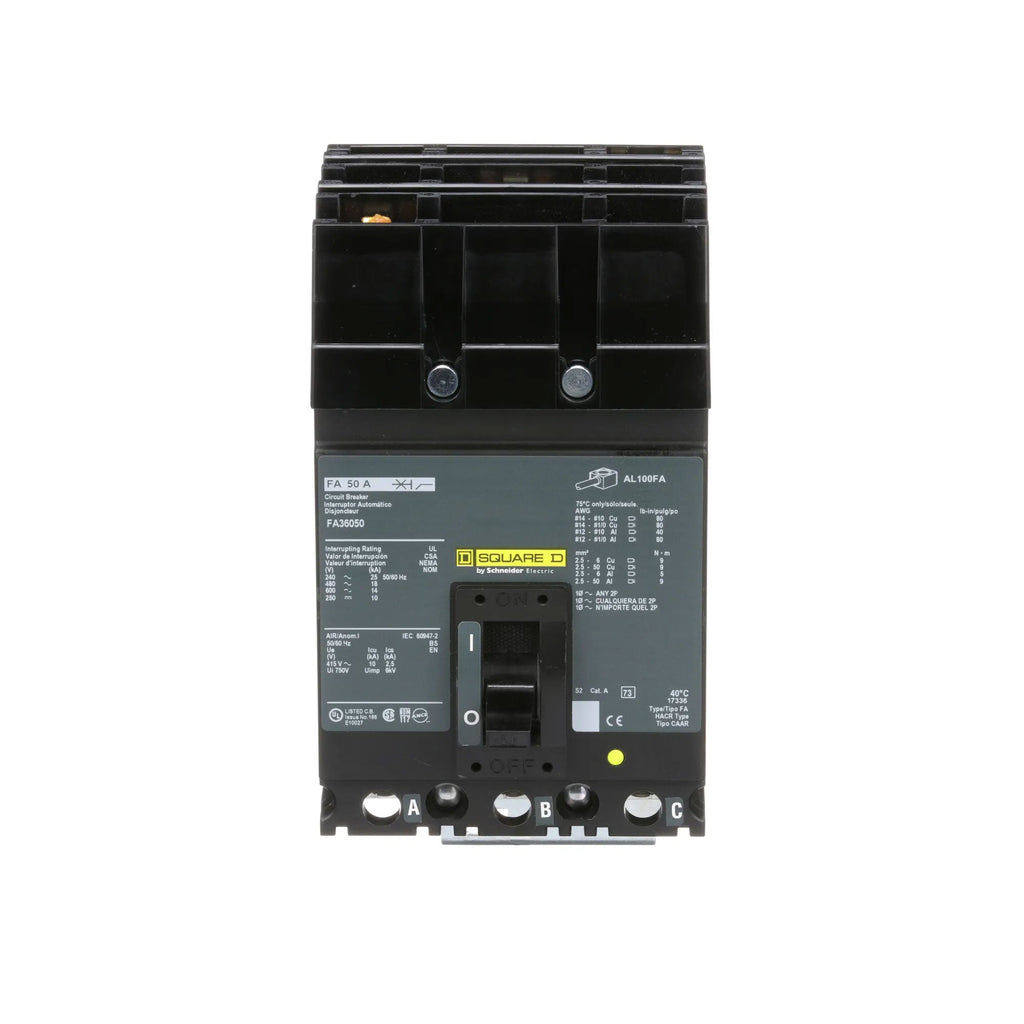

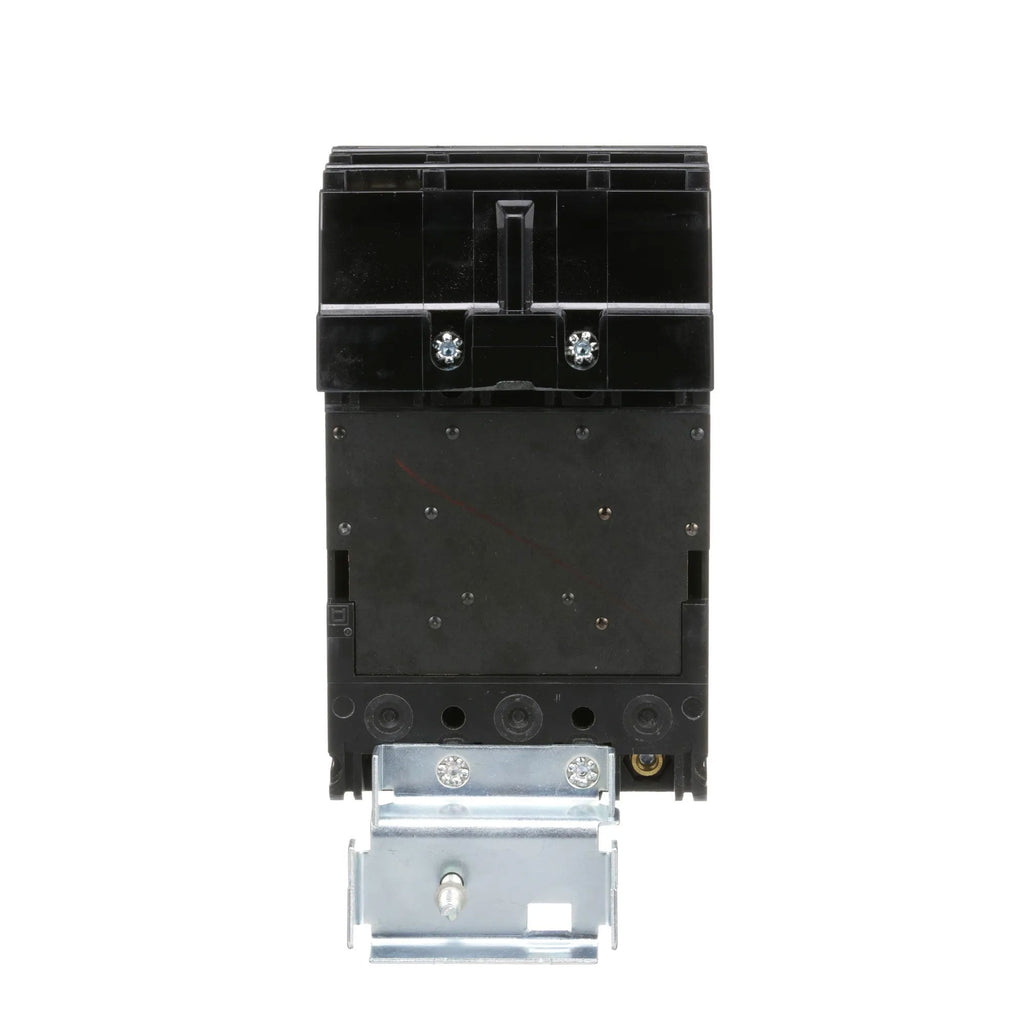

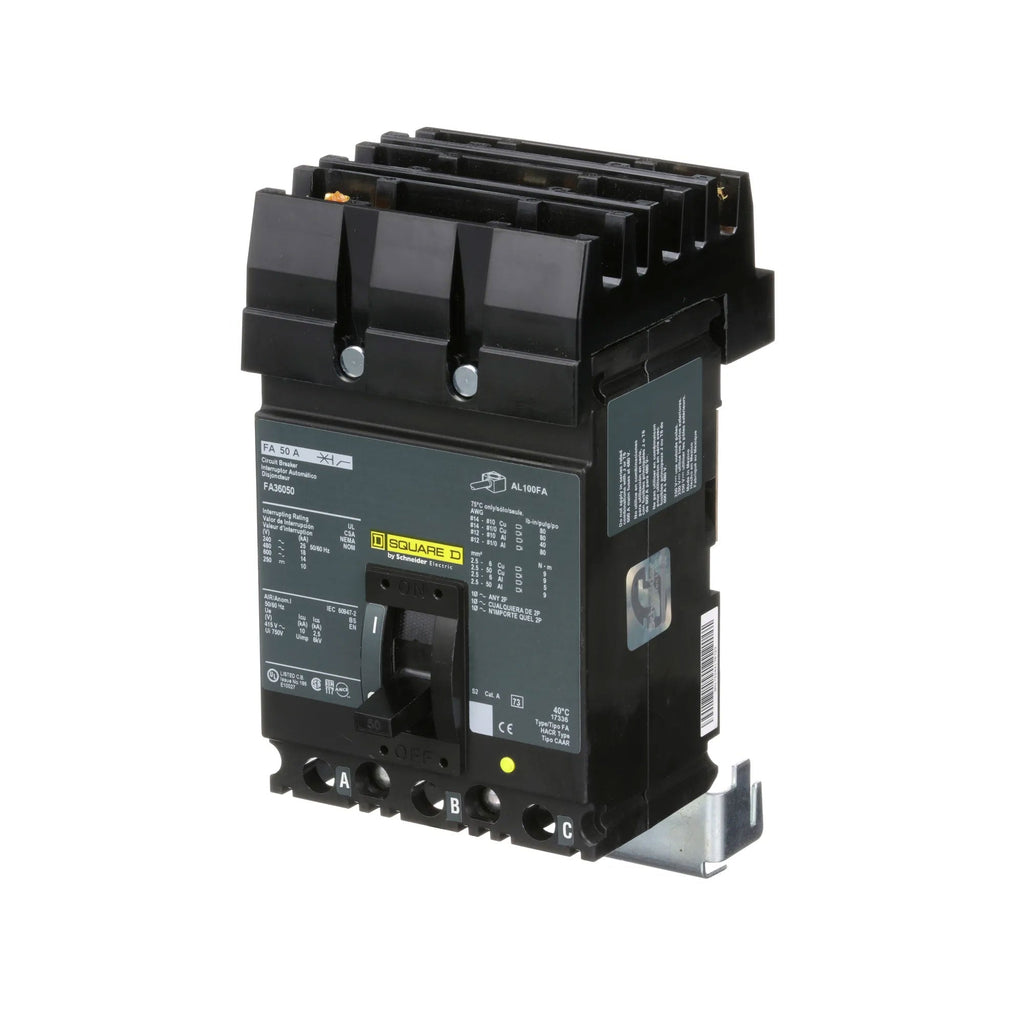

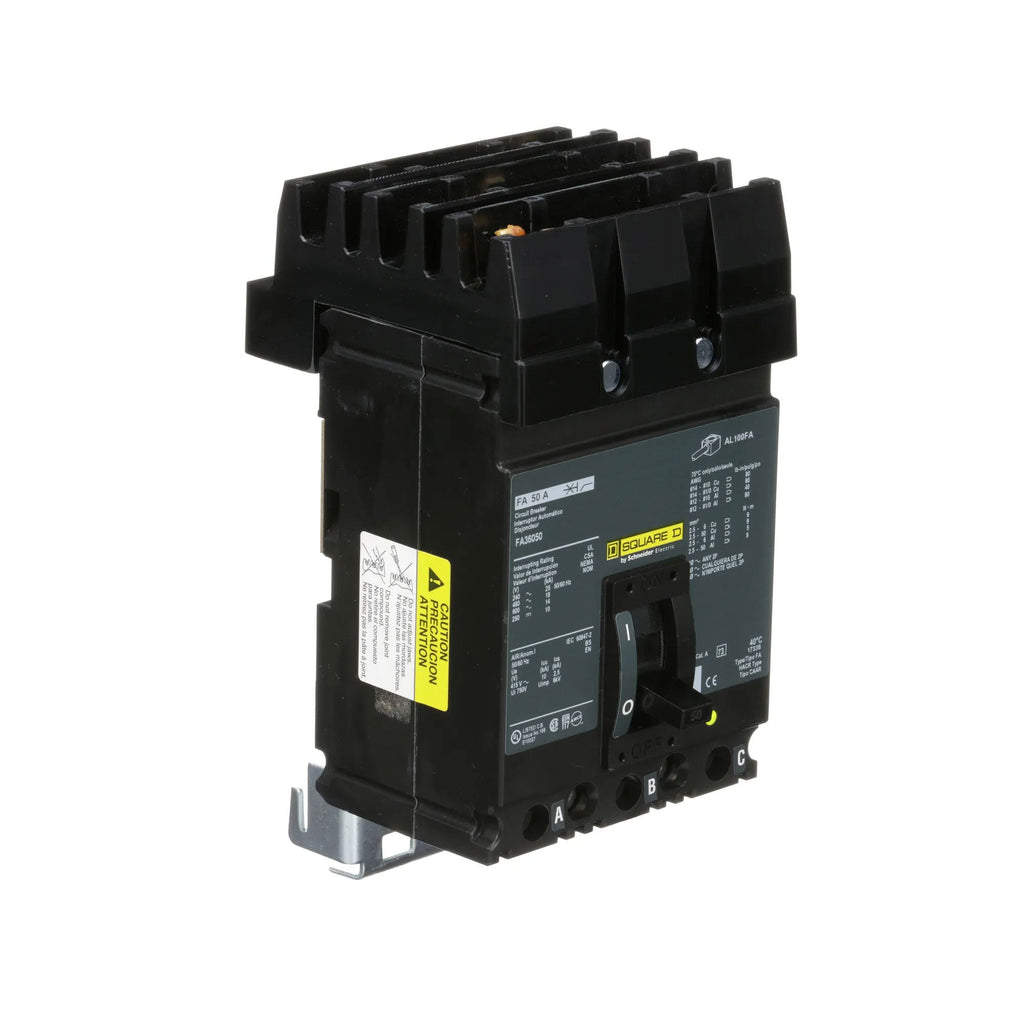

FA36050 is a 50 Amp, 600 Volt, 3-pole molded case circuit breaker from Square D designed for reliable circuit protection.FA36050 features a thermal-magnetic trip unit with a 400A magnetic hold current and plug-on mounting type. It belongs to the FA frame series and is rated for interrupting currents up to 18kA at 480V. This breaker is suitable for industrial and commercial applications requiring robust overload and short circuit protection.
- Key Specifications
- Amperage: 50 Amps
- Voltage Rating: 600 Volts AC
- Poles: 3
- Mounting Type: Plug-On
- Interrupt Rating: 18kA at 480V, 14kA at 600V
- Frame Type: FA
- Trip Unit: Thermal Magnetic
- Magnetic Hold Current: 400 Amps
- Certifications: UL Listed
Specifications
- Part Number: FA36050
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : FA
- Voltage : 600
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901429241
- GTIN : 00785901429241
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 9
