Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FA36030

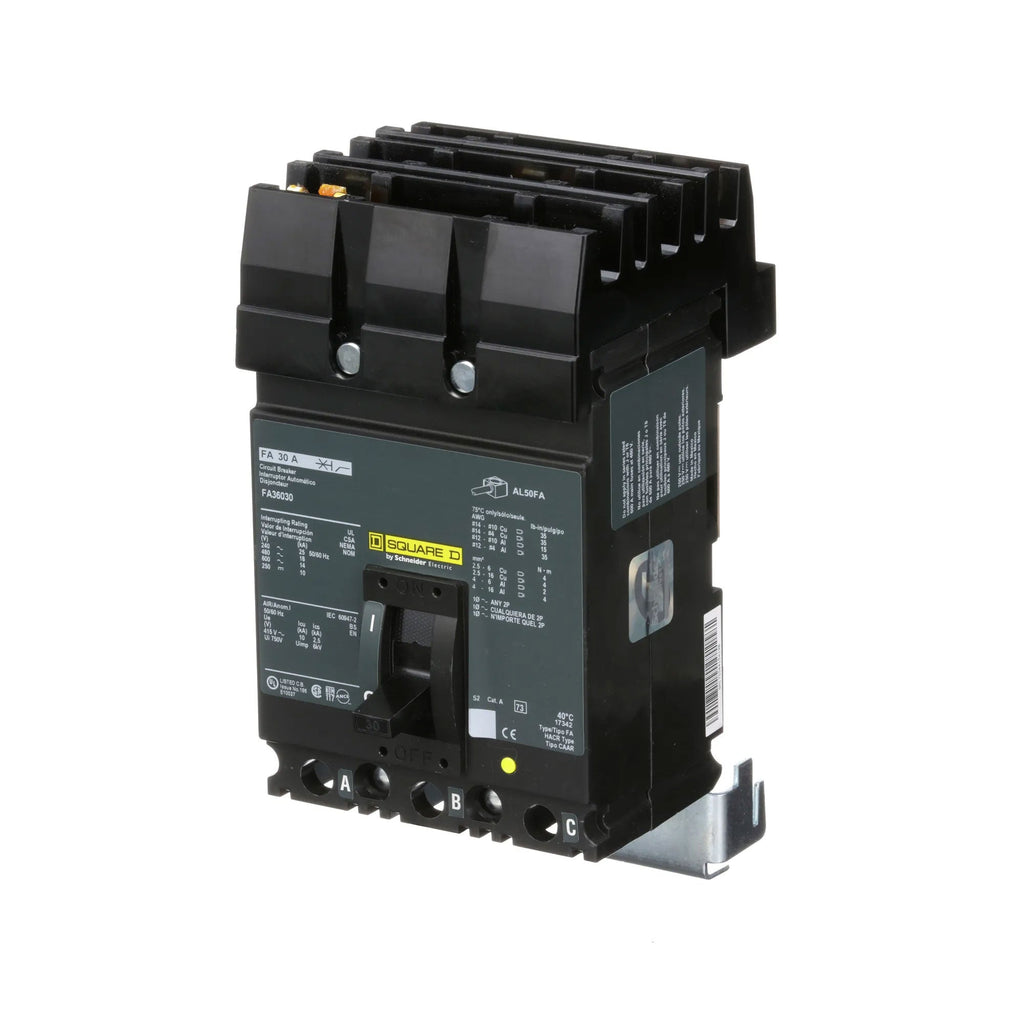

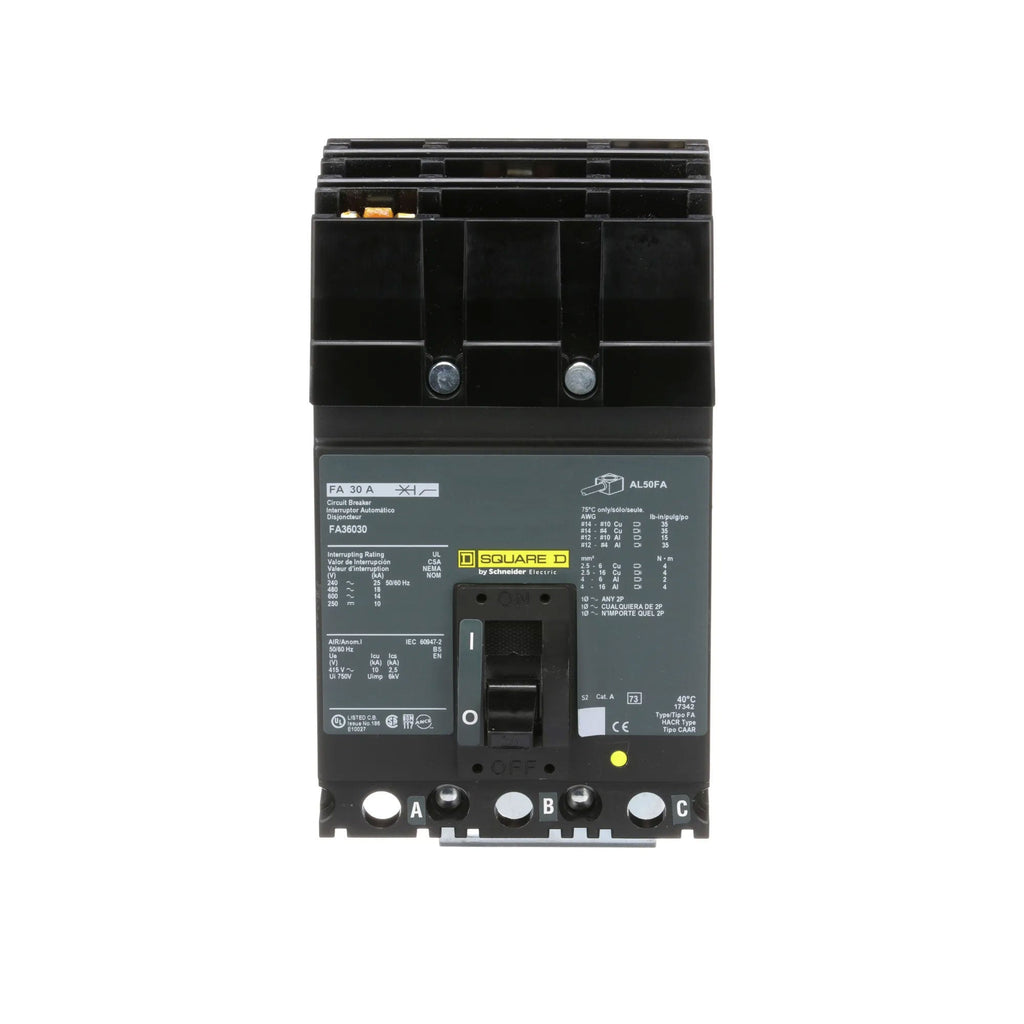

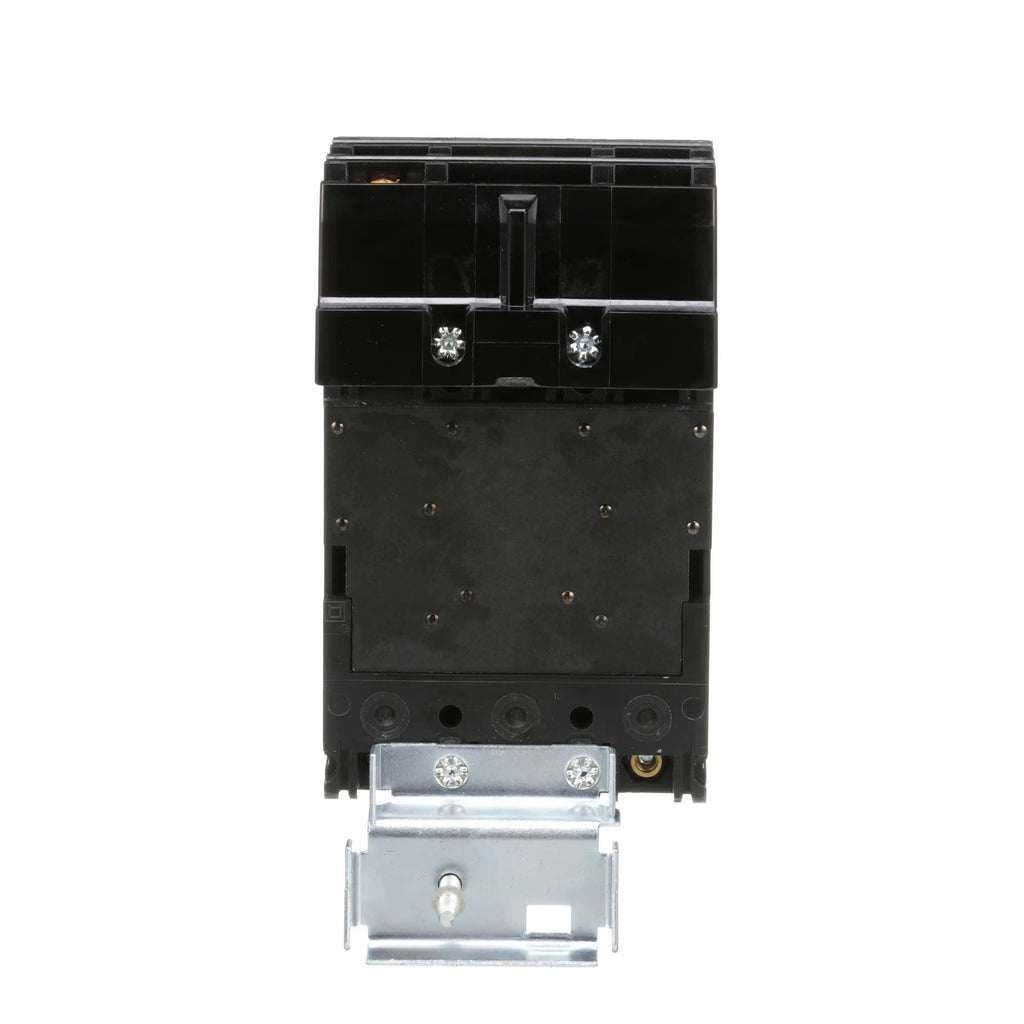

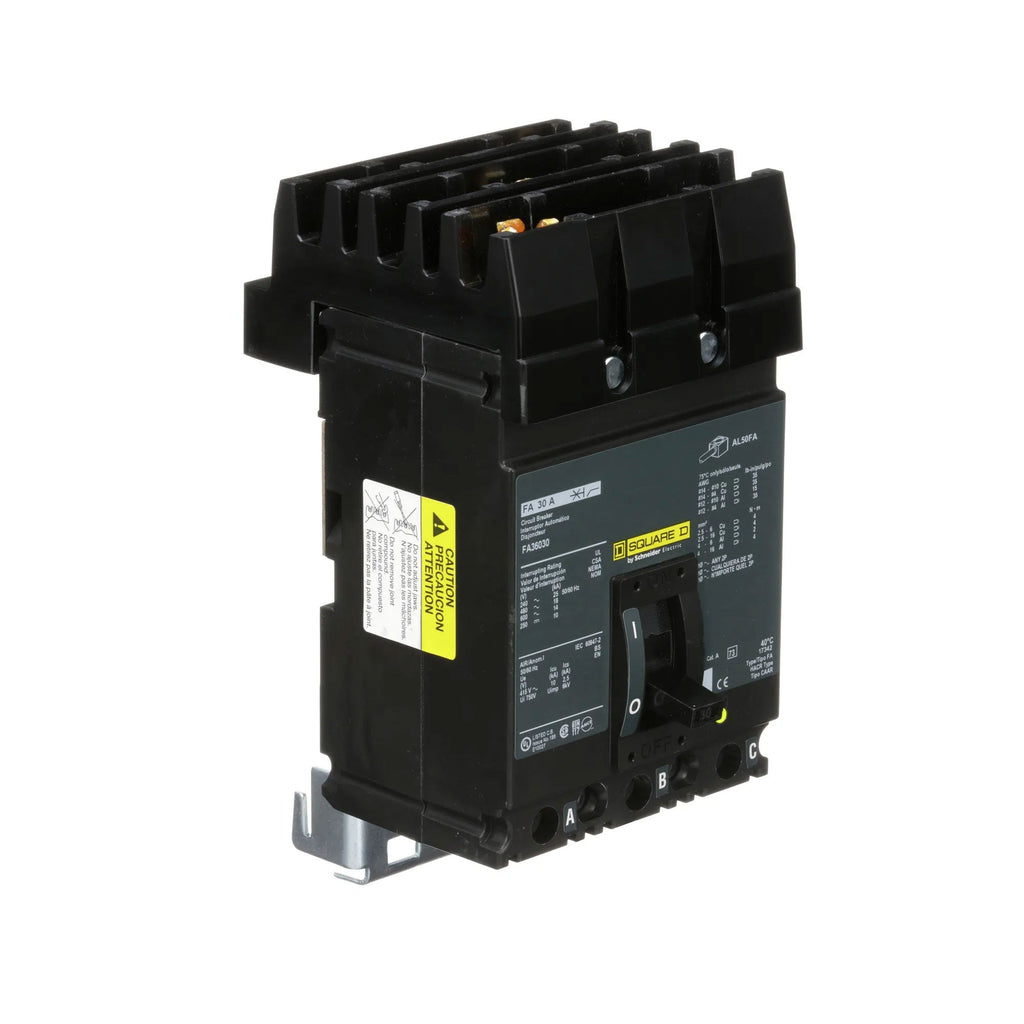

FA36030 is a 3 Pole, 30 Amp, 600 Volt molded case circuit breaker from Square D designed for I-Line plug-in mounting with thermal magnetic trip protection.This Square D FA36030 circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions, an interrupting rating of 18kA at 480V, and is UL and CSA certified. It is part of the FA series with an I-Line style plug-in connection, suitable for 3-phase power distribution and industrial applications.
- Manufacturer: Square D
- Part Number: FA36030
- Amperage: 30 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Mounting Type: I-Line Style Plug-In
- Interrupting Rating: 18kA at 480V
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Series/Frame: FA
- Certifications: UL, CSA
- Phase: 3
- Terminal Connection: Load Side Lug
Specifications
- Part Number: FA36030
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : FA
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : F Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901429128
- GTIN : 00785901429128
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 9
