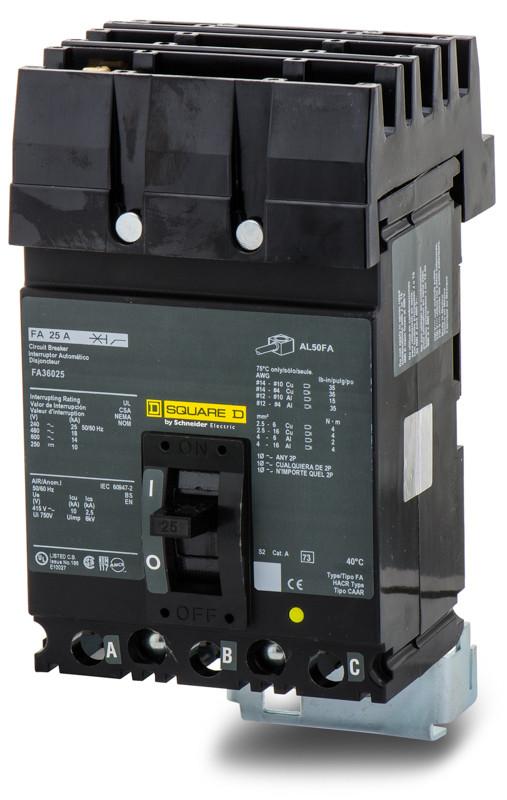

FA36025 - Square D 25A 600V 3 Pole I-Line Style Molded Case Circuit Breaker

FA36025

FA36025 is a 3 pole, 25 amp, 600 volt I-Line style molded case circuit breaker from Square D designed for reliable thermal magnetic protection.This FA series circuit breaker features a thermal magnetic trip unit with long-time and instantaneous trip functions. It has an interrupting rating of 18kA at 480V and 14kA at 600V, suitable for industrial and commercial applications. The breaker mounts with an I-Line plug-in connection and includes load side lug terminals. It is UL and CSA certified and HACR rated for HVAC equipment.

• Amperage: 25A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 18kA at 480V, 14kA at 600V
• Series/Frame: FA
• Trip Unit: Thermal Magnetic with LI (long-time and instantaneous)
• Certifications: UL, CSA, HACR
• Terminal Connection: Load side lug
• Dimensions: 4.13" L x 4.5" W x 6.4" H
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA36025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901338741
• GTIN : 00785901338741
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 9
