FA360201021 - Square D 20A 600V 3 Pole I-Line Thermal Magnetic Circuit Breaker

FA360201021

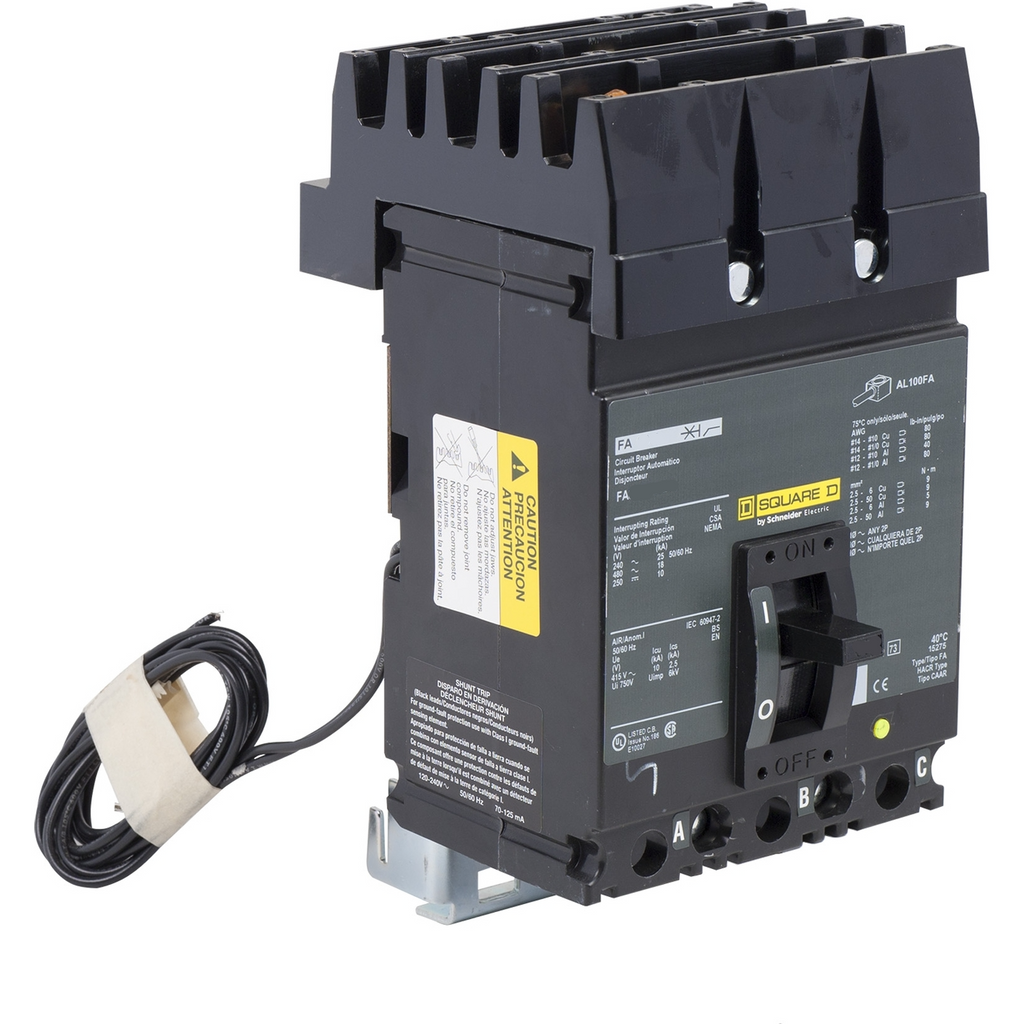

FA360201021 is a Square D 3 pole, 20 amp, 600 volt thermal magnetic molded case circuit breaker designed for reliable circuit protection.This circuit breaker features an I-Line style plug-in mounting type with a frame type FA. It offers an interrupting rating of 18kA at 480V and includes long time and instantaneous trip functions. The breaker is UL and CSA certified and complies with RoHS, REACh, and HACR standards. It has a load side lug terminal connection and a temperature rating of 40°C. Additionally, it includes a 120V shunt trip feature for enhanced control.

Key Specifications
• Amperage: 20 Amps
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 18kA at 480V
• Frame Type: FA
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Load Side Lug
• Certifications: UL, CSA
• Standards: RoHS, REACh, HACR
• Temperature Rating: 40°C
• Breaker Feature: 120V Shunt Trip
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

complete with 120/240Vac shunt trip




Specifications

• Part Number: FA360201021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• GTIN : 00785901255338
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 9
