Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FA341001021

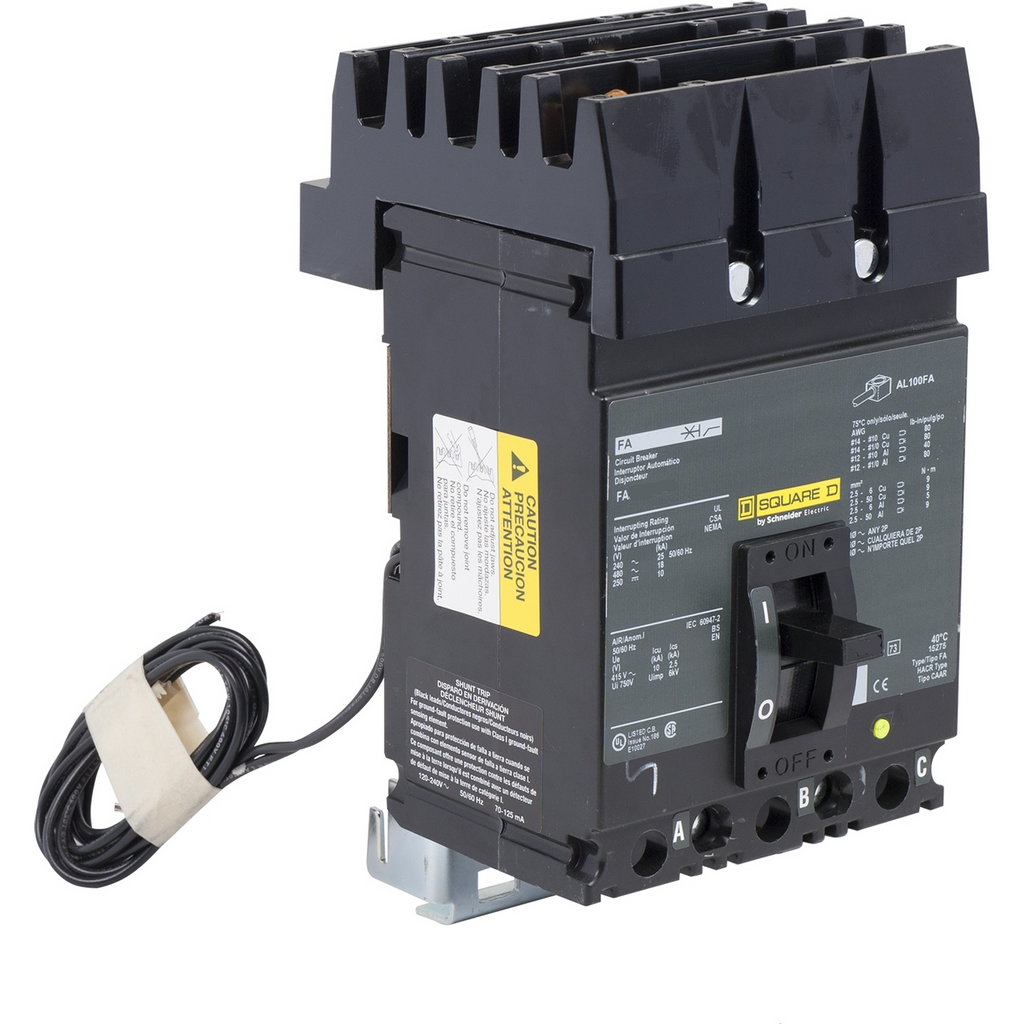

FA341001021 is a 3-pole, 100 amp, 480 volt thermal magnetic circuit breaker with a shunt trip device, designed for I-Line mounting by Square D.This Square D FA series circuit breaker features a fixed trip thermal magnetic trip unit, an interrupting rating of 18kA at 480V, and a 3-pole configuration suitable for three-phase applications. It includes a 120V shunt trip accessory and is designed for plug-in I-Line panel installation.
- Amperage: 100A
- Voltage: 480V AC
- Poles: 3
- Mounting Type: I-Line plug-in
- Interrupt Rating: 18kA @ 480V
- Trip Unit: Fixed thermal magnetic
- Shunt Trip Voltage: 120V
- Series/Frame: FA
- Contactor Type: Magnetic
- Certifications: OEM Square D
- Discontinued: Yes (End of service 12/31/2020)
Specifications
- Part Number: FA341001021
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : FA
- Voltage : 480
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901255291
- Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 9
- Certification : UL
