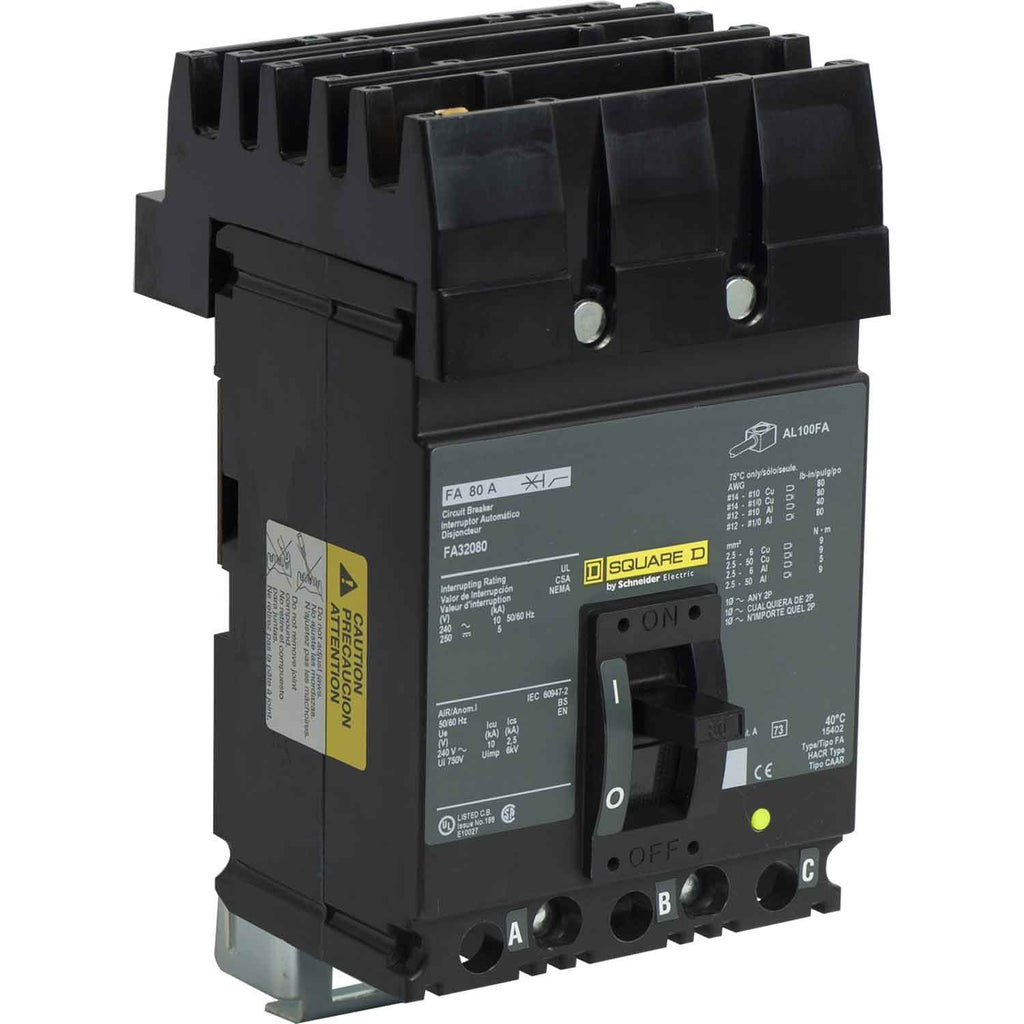

FA32080 - Square D 80 Amp 240V 3 Pole I-Line Molded Case Circuit Breaker

FA32080

FA32080 is a Square D 3 Pole molded case circuit breaker rated for 80 Amps and 240 Volts with I-Line style plug-in mounting.This thermal magnetic circuit breaker features long-time and instantaneous trip functions, a 10kA interrupting rating at 240VAC, and is UL and CSA certified. It is designed for industrial applications requiring reliable protection with a 3-phase configuration and load side lug terminal connections.

• Amperage: 80 Amps
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 10kA at 240V
• Series/Frame: FA
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions
• Certifications: UL, CSA
• Terminal Connection: Load Side Lug
• Phase: 3
• Temperature Rating: 40 °C
• Standards: HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA32080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 240
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901342496
• GTIN : 00785901342496
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 4.5 in (114.3 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 9
