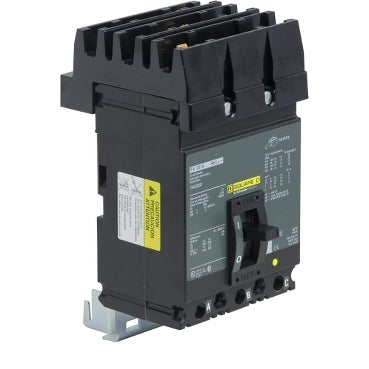

FA32045G - Square D 45A 240V 3 Pole I-Line Molded Case Circuit Breaker FA Frame

FA32045G

FA32045G is a Square D 3-pole molded case circuit breaker rated for 45 amps and 240 volts AC with an I-Line plug-in mounting style.

This thermal magnetic breaker features long time and instantaneous trip functions, a 10kA interrupting rating at 240V, and is designed for three-phase applications. It uses load side lug terminals and supports wire gauges from AWG 14 to AWG 1/0 for aluminum and copper conductors. The breaker is UL and CSA certified and complies with RoHS and HACR standards.

Key Specifications
• Amperage: 45 Amps
• Voltage: 240VAC, 250VDC
• Poles: 3
• Frame Type: FA (I-Line)
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 10kAIC at 240V
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Functions
• Terminal Connection: Load Side Lug
• Wire Gauge: AWG 14 to AWG 1/0, Aluminum/Copper
• Certifications: UL, CSA
• Standards: RoHS, HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with ground fault shunt trip wiring protection

Specifications

• Part Number: FA32045G
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 240
• Amperage : 45
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• Weight : 12
