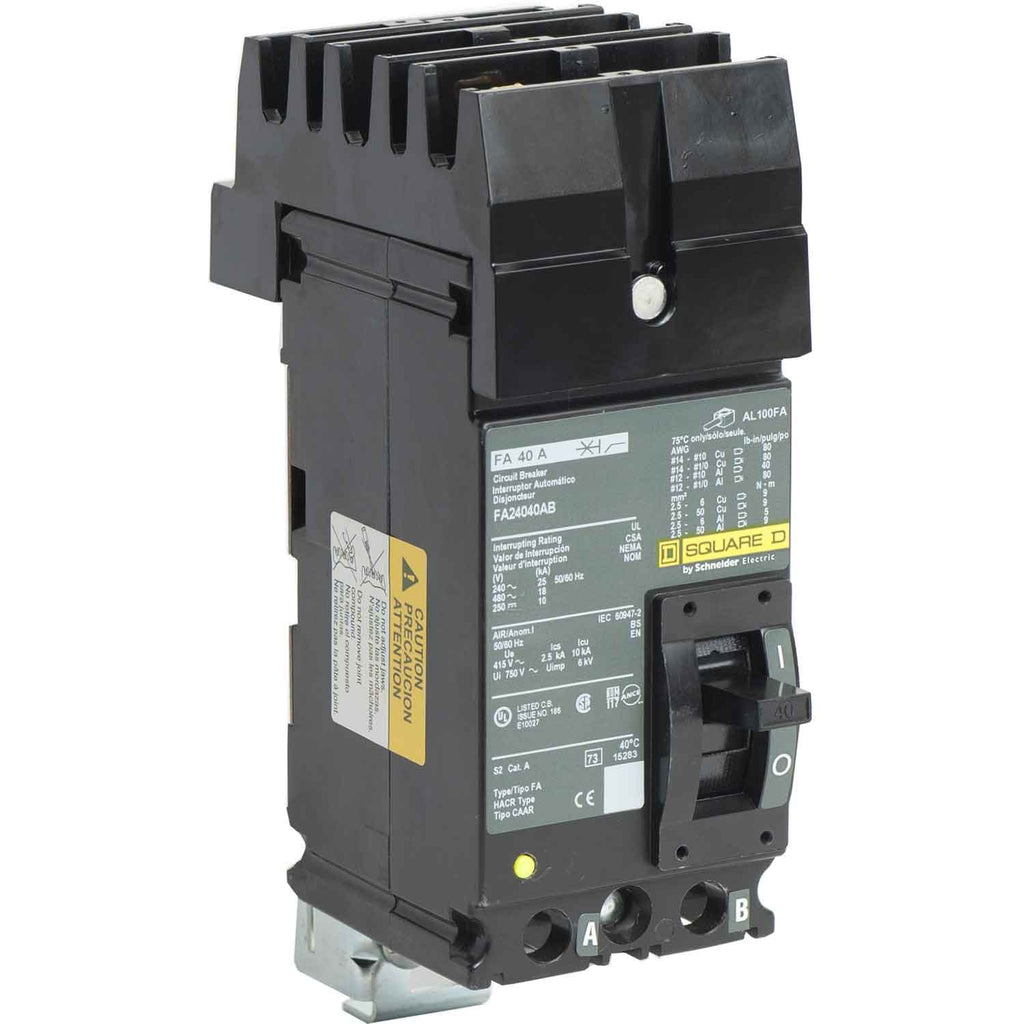

FA24040AB - Square D 40A 2-Pole I-Line Circuit Breaker 480V Thermal Magnetic

FA24040AB

FA24040AB is a 40 amp, 2 pole I-Line circuit breaker manufactured by Square D designed for 480 Volt power distribution applications.FA24040AB features thermal magnetic trip protection with an interrupting rating of 18kA at 480V. It is a plug-in style breaker compatible with Square D I-Line panelboards and switchboards. The breaker has AB phase connectors and is UL and CSA certified, suitable for single-phase systems. It supports wire sizes from 14 to 4 AWG copper and 12 to 4 AWG aluminum.

Key Specifications
• Amperage: 40 Amps
• Voltage: 480 VAC
• Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupting Rating: 18kA at 480V
• Trip Unit: Thermal Magnetic
• Series/Frame: FA, Frame Type F
• Phase: Single-phase
• Certifications: UL, CSA
• Terminal Wire Size: 14-4 AWG Copper, 12-4 AWG Aluminum
• Connection Type: AB Phase Connectors

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA24040AB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 480
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901253518
• GTIN : 00785901253518
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
