Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
FA24030AC

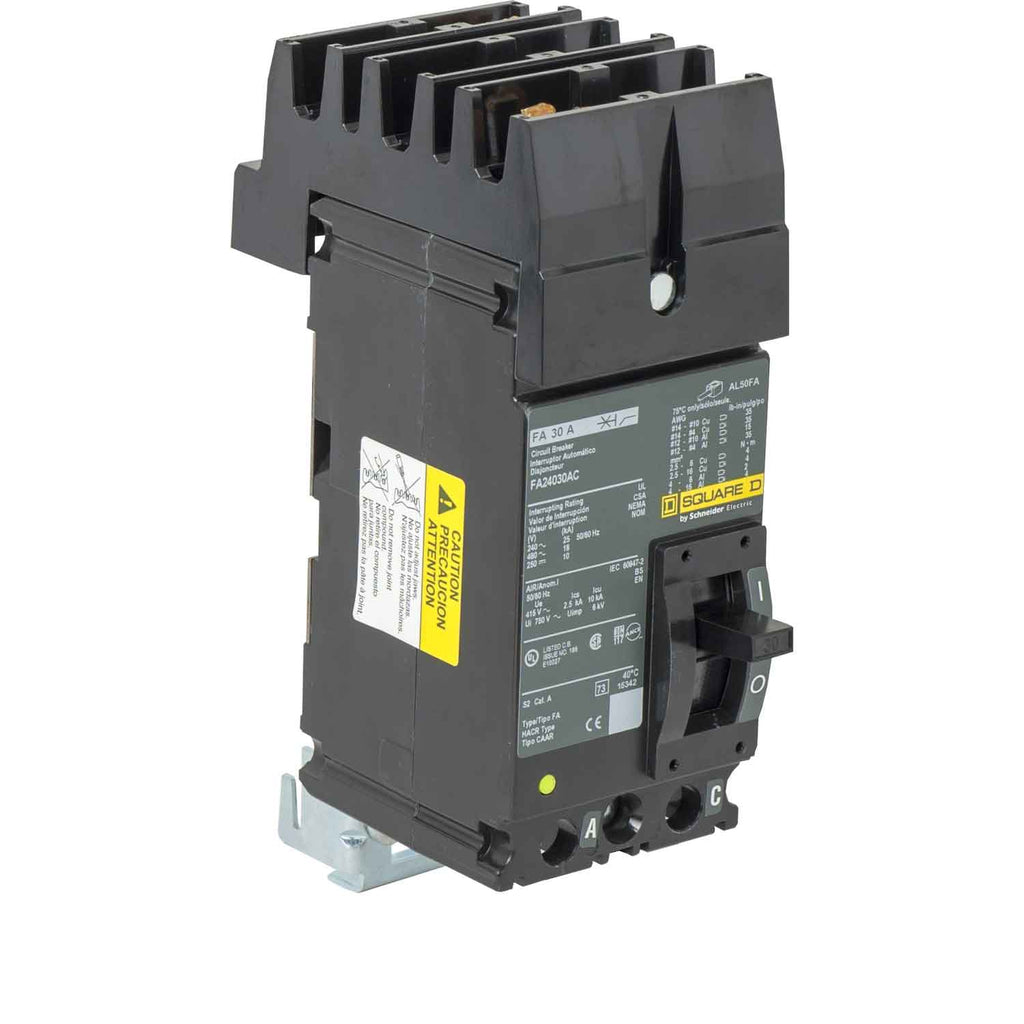

FA24030AC is a Square D 2 pole, 30 amp, 480 volt I-Line style thermal magnetic circuit breaker designed for reliable circuit protection.This molded case circuit breaker features a plug-in I-Line mounting system, A-C phase connectors, and a thermal magnetic trip unit. It has an interrupting rating of 18kA at 480V and is suitable for commercial and industrial electrical applications. The breaker is HACR type rated and designed for use at 40°C ambient temperature.
- Manufacturer: Square D
- Part Number: FA24030AC
- Amperage: 30 Amps
- Voltage Rating: 480 Volts
- Number of Poles: 2
- Mounting Type: I-Line Plug-In
- Interrupting Rating: 18kA @ 480V
- Trip Unit: Thermal Magnetic
- Phase: A-C Phase Connectors
- Type/Series: FA
- HACR Rated
- Ambient Temperature Rating: 40°C
Specifications
- Part Number: FA24030AC
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : I-Line
- Type : FA
- Voltage : 480
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901253488
- GTIN : 00785901253488
- Country of Origin : Mexico
- Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
- Weight : 6
