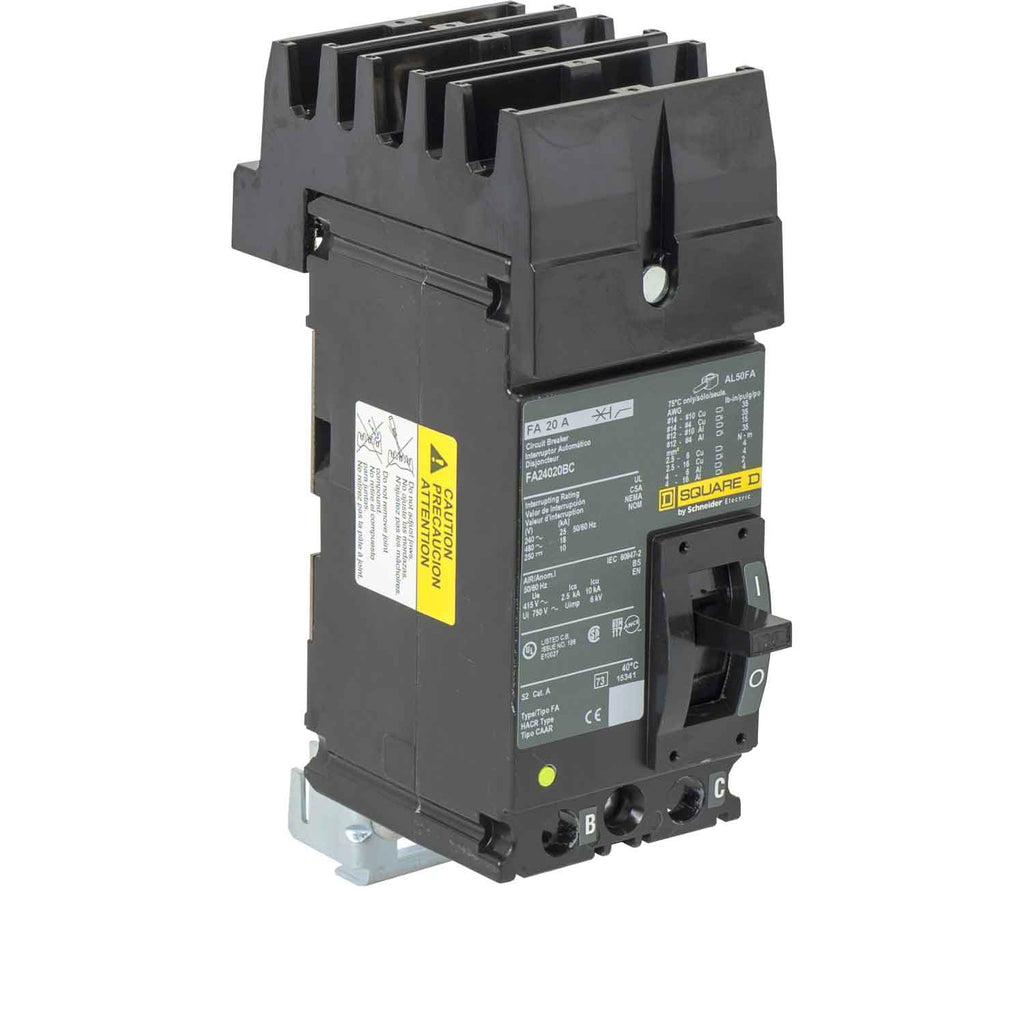

FA24020BC - Square D 20A 2-Pole 480VAC Molded Case Circuit Breaker I-Line FA Frame Thermal Magnetic Trip

FA24020BC

FA24020BC is a 2-pole, 20A molded case circuit breaker from Square D's I-Line FA series, designed for 480VAC power distribution applications. This breaker features a thermal magnetic trip unit, plug-in mounting, and is suitable for use in I-Line panelboards and switchboards. It is UL and CSA listed for reliable performance in commercial and industrial environments. Key Specifications

• Part Number: FA24020BC
• Manufacturer: Square D
• Series/Frame: I-Line FA
• Amperage: 20A
• Poles: 2
• Voltage Rating: 480VAC
• Mounting Type: Plug-In
• Interrupting Rating: 25kA at 240VAC, 18kA at 480VAC
• Frame Size: FA
• Phase: B/C
• Terminal Wire Size: 14-4 AWG Copper, 12-4 AWG Aluminum
• Standards: UL, CSA
• Application: Power Distribution
• Temperature Rating: 40°C
• Tripping Method: Thermal Magnetic

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FA24020BC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : FA
• Voltage : 480
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : F Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901253457
• GTIN : 00785901253457
• Country of Origin : Mexico
• Dimensions : 6.4 in (162.6 mm) x 3 in (76.2 mm) x 4.13 in (104.90 mm) (Height x Width x Depth)
• Weight : 6
